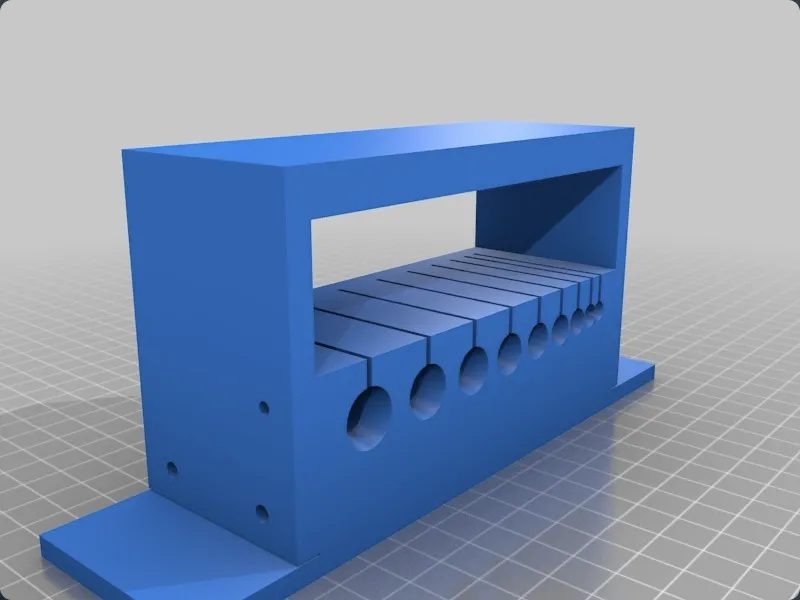

WIRE STRIPPER VERSION 1.0
range 2-10mm

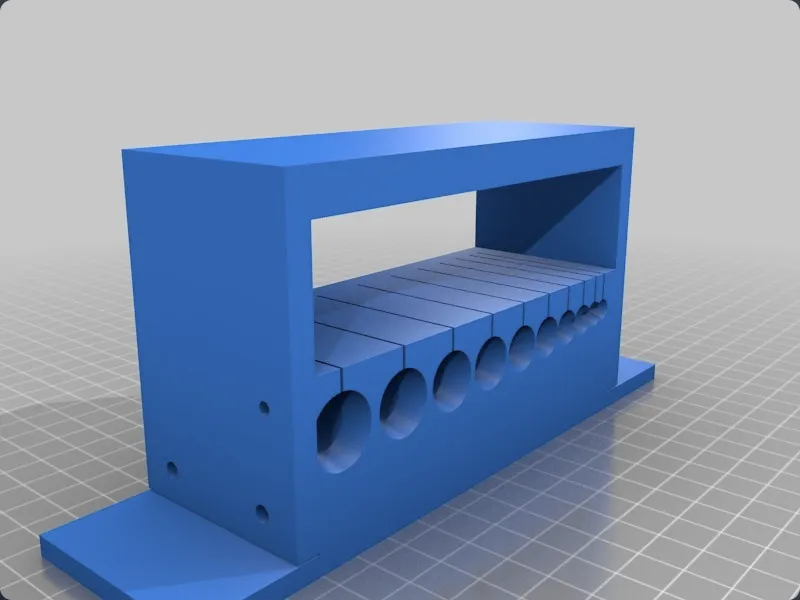

VERSION 1.0b
range 2-132mm
This version has:
-a clamp areas for fixing it to a table.
-space for a pivot bar to pivot back of razor, get 2-3mm welding rod or a bar and check diameter
-an upper chassis to wedge something springy to guide the razor onto the wire
-bolt holes to fix the upper part to the guide holes, in the scad file it can be printed as upper and lower, here it's one block
-the razor guides are perhaps too thin, i should be marked where they are in the .scad file, depends on the width of your razors.
-there is a hold where you can put a bike spoke or a copper brazing rod which holds the top of the razor at a slant.
this is an alpha version, i didn't finish it, but it should work
