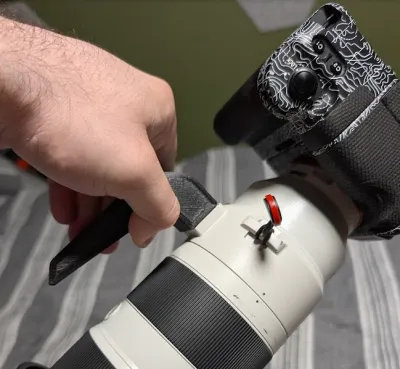

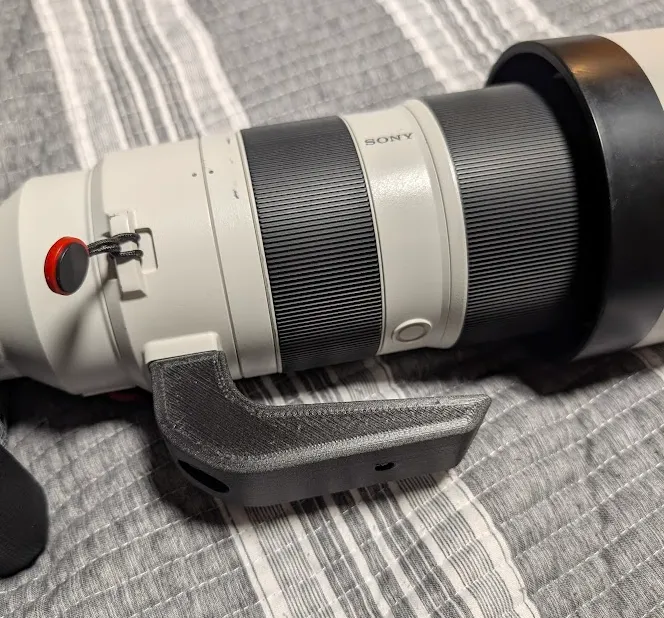

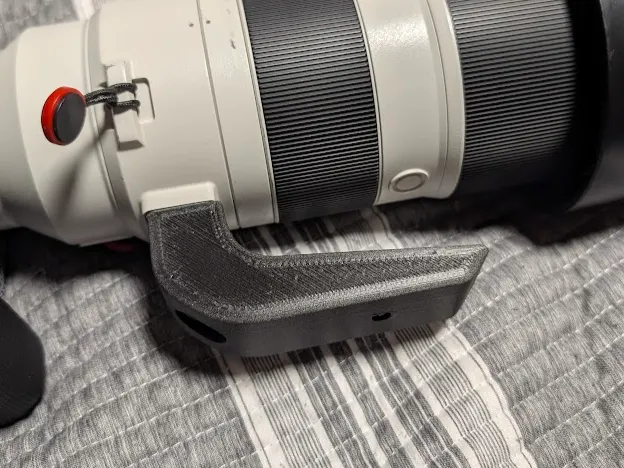

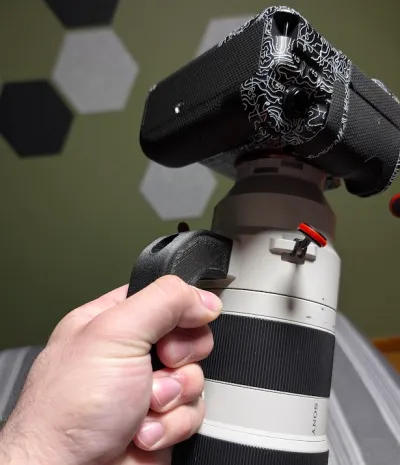

My 200-600 was missing the tripod foot/handle when I bought it, so I thought instead of buying a $100 OEM one or a $30 aftermarket one to trust my thousand dollar lens to, why not trust a self engineered $0.90 lump of plastic?

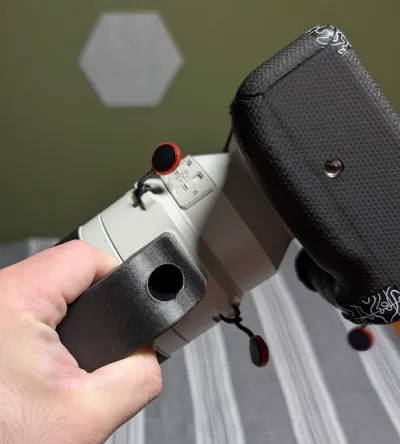

I updated the file for a heat set insert sized hole on the bottom.







I used the short ¼ inch screw from a Peak Design accessory to screw it on (14mm wide for the channel I made), but in theory any ¼ inch tripod screw would work so long as it fits within the channel, maybe have to use or make a simple washer with whatever thickness you would need to make it snug, %100 infill on that if needed. I made it work with the common wide tripod/camera 1/4in screw, but for my original model I just made it work with what I had lying around.

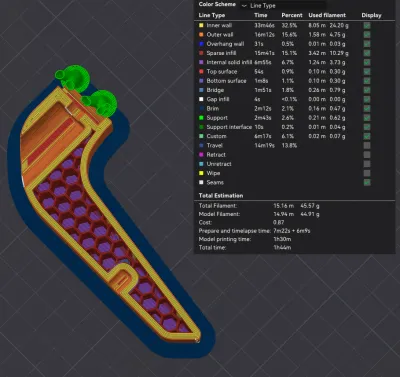

So with the orientation of the print, the wall count, the screw, and the tight almost interference fit of the cutout, I trust it to hold the lens and camera up. Been using it for the last week and carrying it and nothing so far, noises or slop.



*** Trust it at your own risk - This works for me, for now. It may fail, so have a strap or safety in place***

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    1/4in Tripod Screw
    1
    Peak Design's small one works great, generic thick ones should fit as well

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license

Models(1)

  • model file image
    200to600tripodFootBigHole.stlDesigner

    231.04 KB
