Arduino/CNC Shield case
Print Profile(1)
  • 0.2mm layer, 2 walls, 15% infill

    1-disc

    PETG

    Designer

1

1

12

2

Released 2026-05-25
Details
Files(3)
Makes & Comments (0)

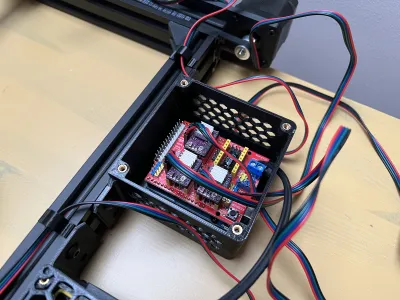

Arduino + CNC shield enclosure with mounts for a 4020 aluminium extrusion and 80mm fan.

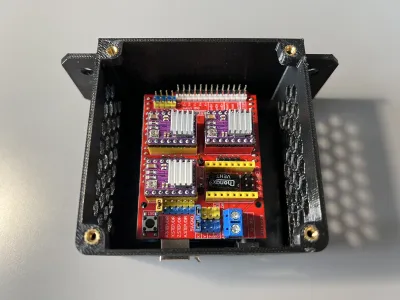

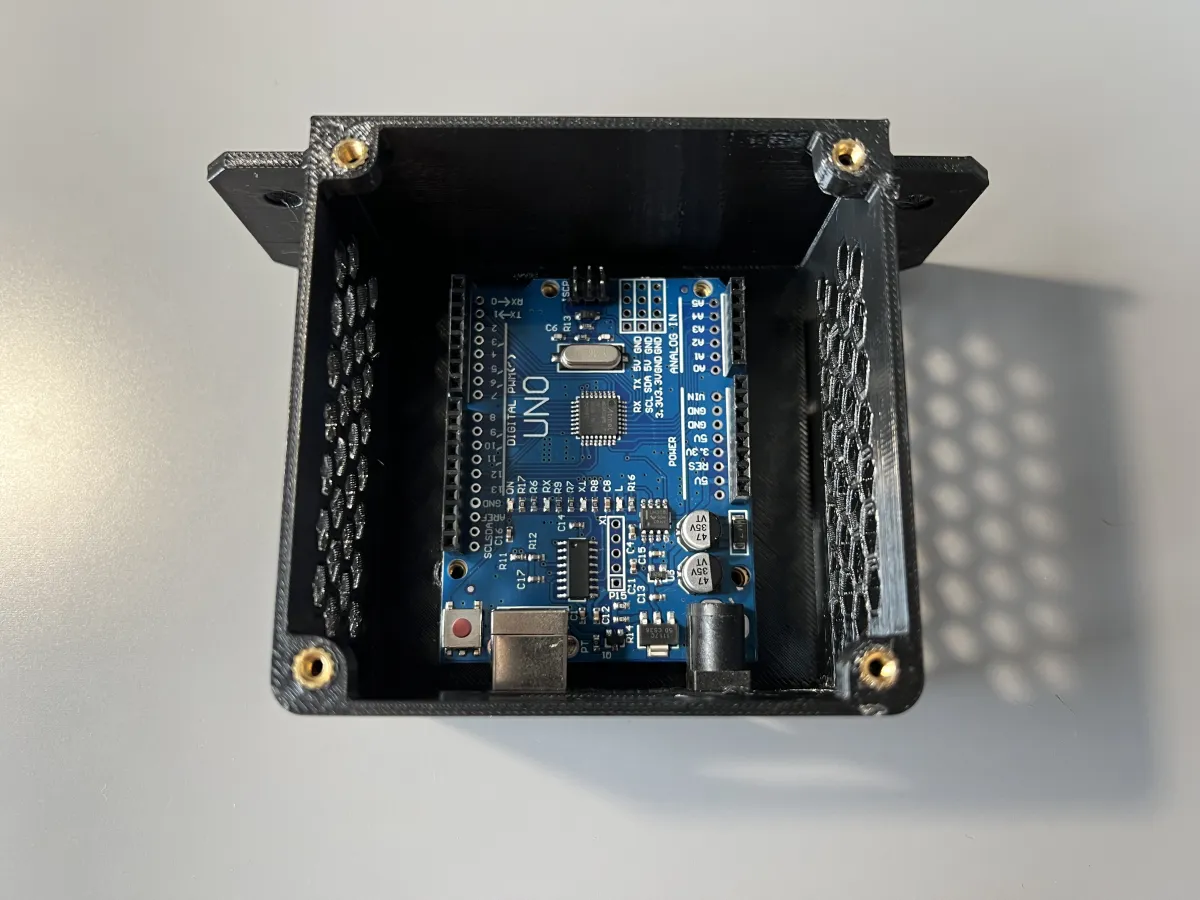

The design features holes for M3 heat inserts. Additionally, an 80mm computer fan can be mounted on the enclosure to keep the boards or stepper drivers cold. On the side the case has a place for the Arduino's USB and 12V barrel connector and an additional opening for cables and leads.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    M3 heat inserts
