A compact drilling guide designed to help you drill accurate holes quickly and consistently.

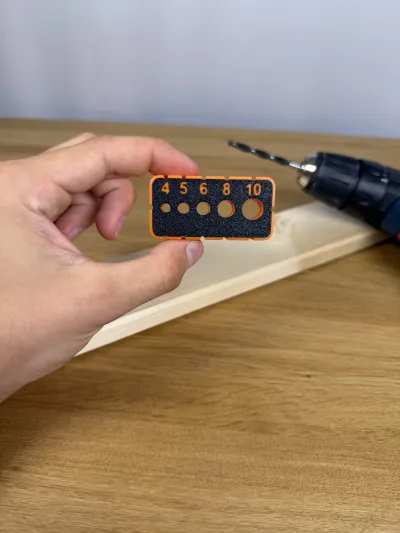

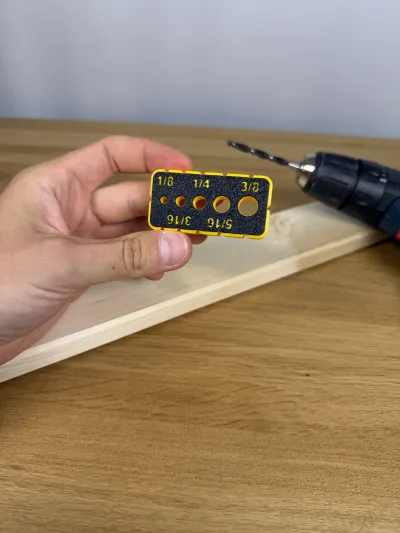

The guide includes holes for 4, 5, 6, 8, and 10 mm drill bits, with a separate imperial version also available.

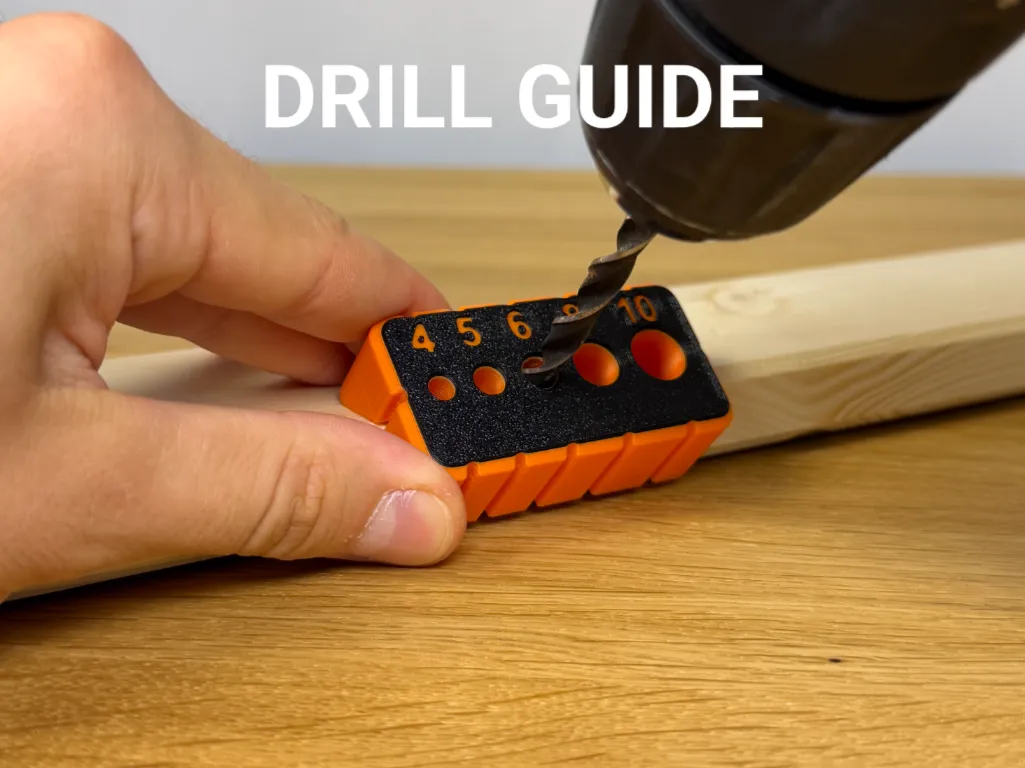

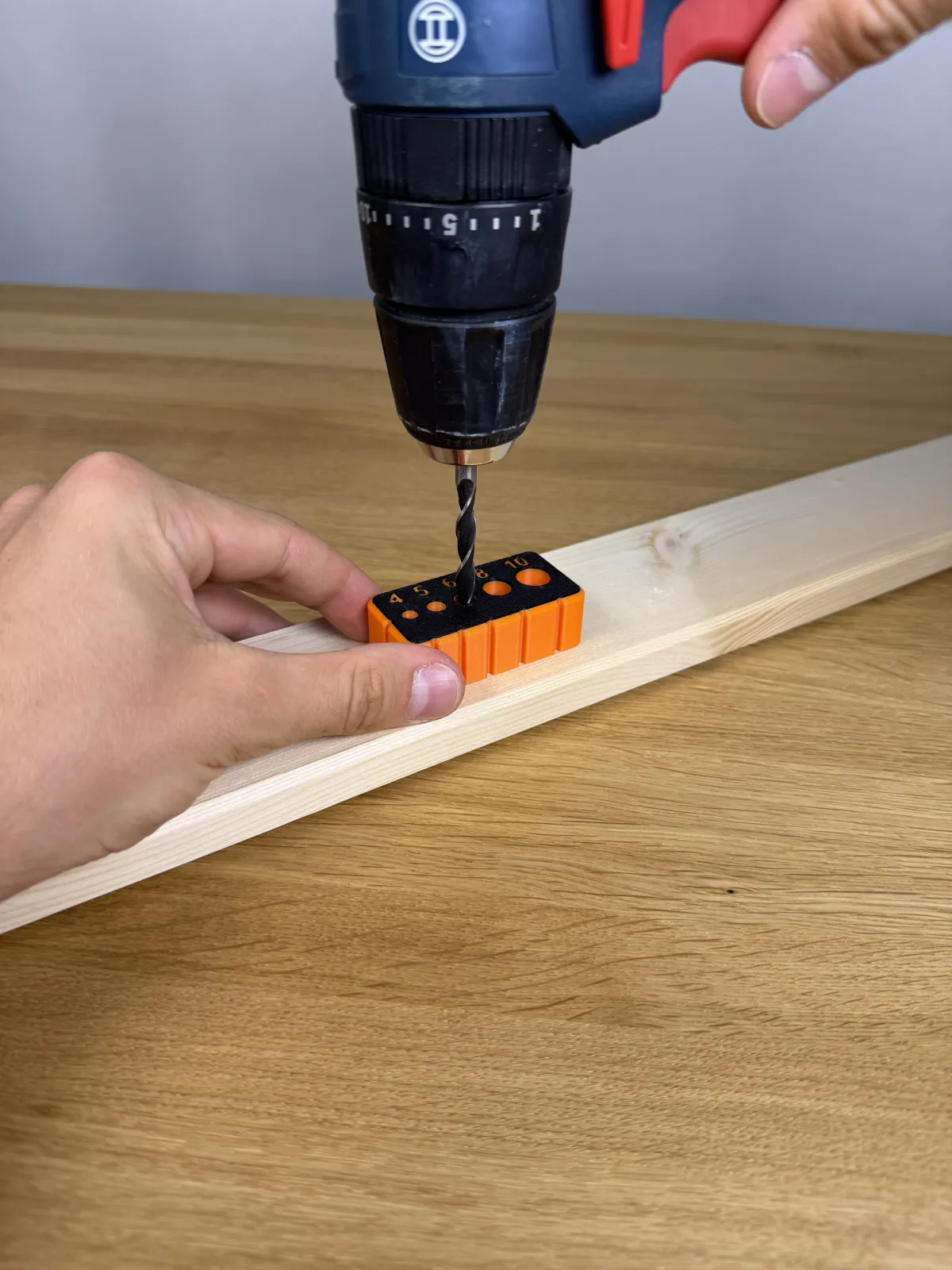

Each hole is aligned with engraved center marks on the outer sides of the guide. Simply mark a cross on your workpiece, align the engraved marks with the lines, and drill exactly where intended.

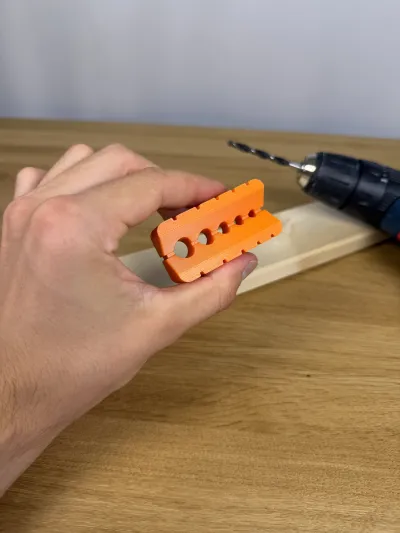

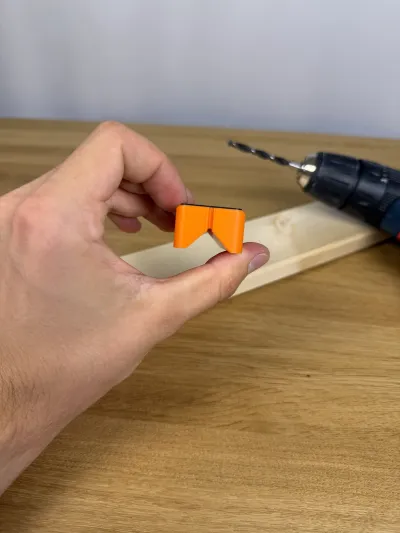

The underside features a 90° V-groove, allowing the guide to sit securely on:
Flat boards
45° corners
Round stock, pipes, rods, and dowels
