Elegoo Centauri Carbon - Motherboard Fan Shroud (Improved Airflow Path)
Print Profile(1)
  • V1.0 - Experimental

    1-disc

    PETG-CF

    Designer

7

3

167

12

Released 2026-01-18
Details
Files(1)
Makes & Comments (0)

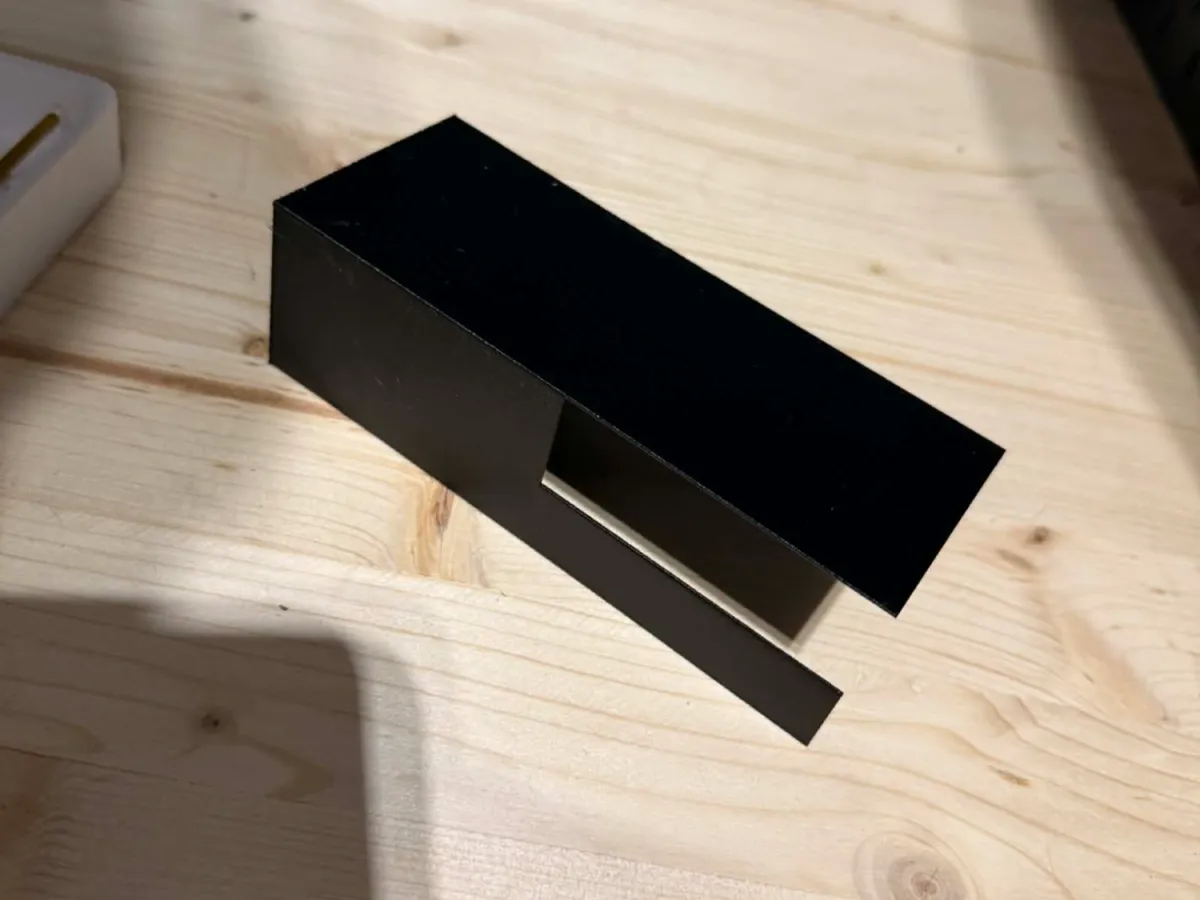

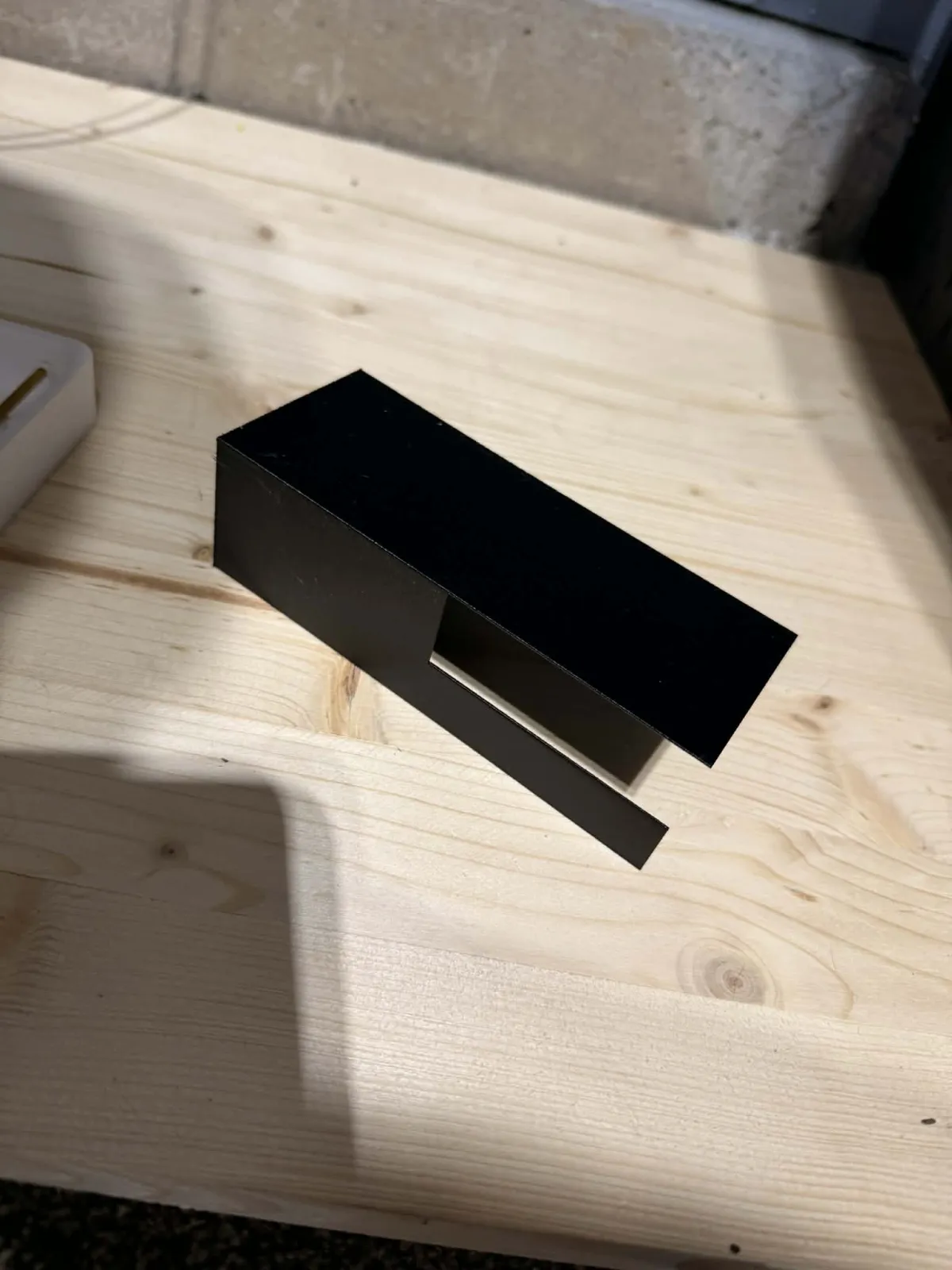

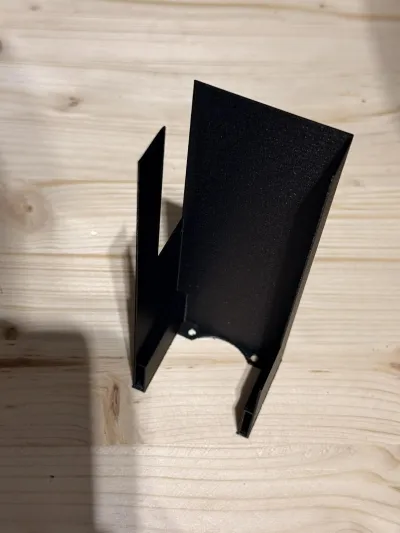

Designed this due to the poor design of how the fan sits and doesnt have a path to properly allow the air to cross the heat sinks on the board. This allows the air to properly channel through and over the heat sinks. Current design by factory has a panel full of holes but no proper flow, its a chaotic tornado in the bottom.



1/15/2026

+V1.0 - Experimental Stages

– still tuning shaping and trim for airflow; mounts to fan screws

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Standard Digital File License

This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.

Models(1)

  • model file image
    SCF_CC_MB_FANSHROUD.3mfDesigner

    37.68 KB

    2026-01-17

No more
