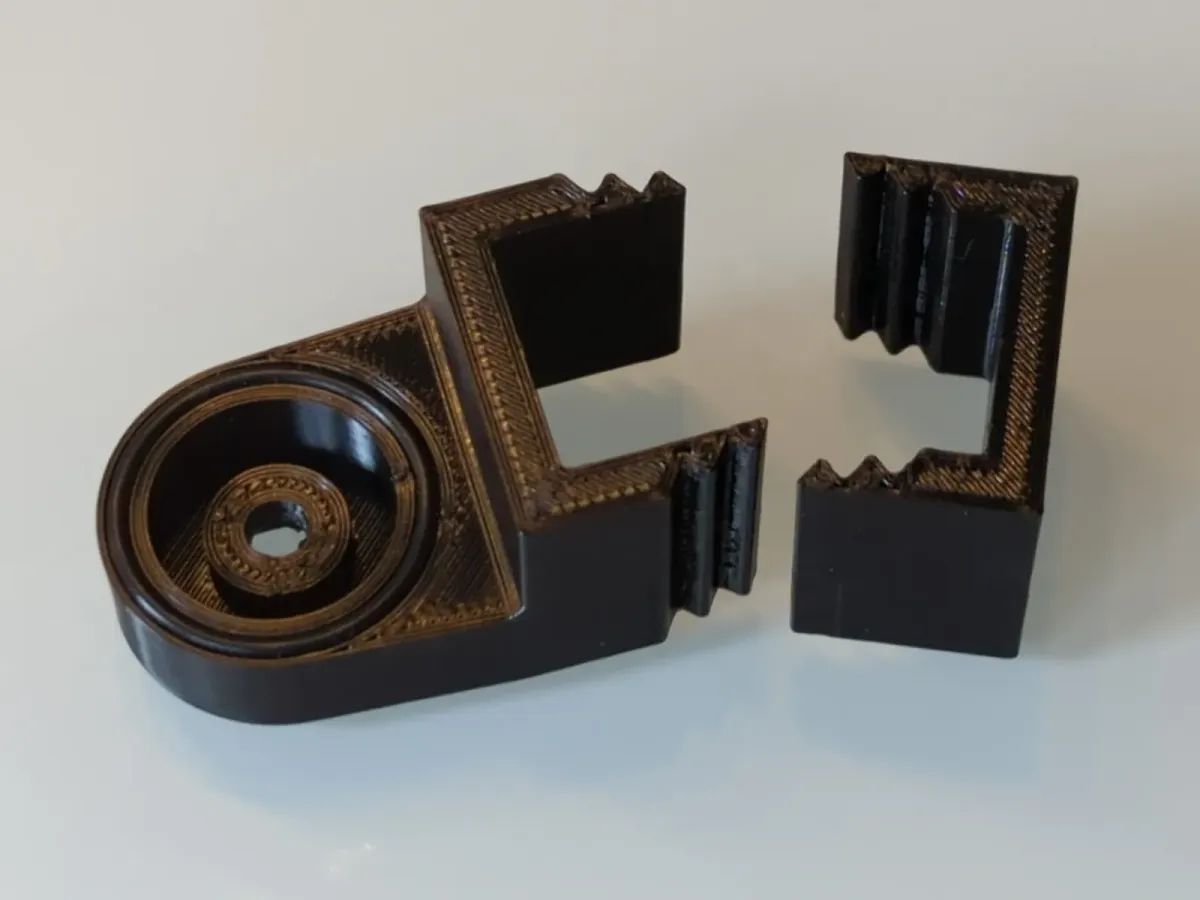

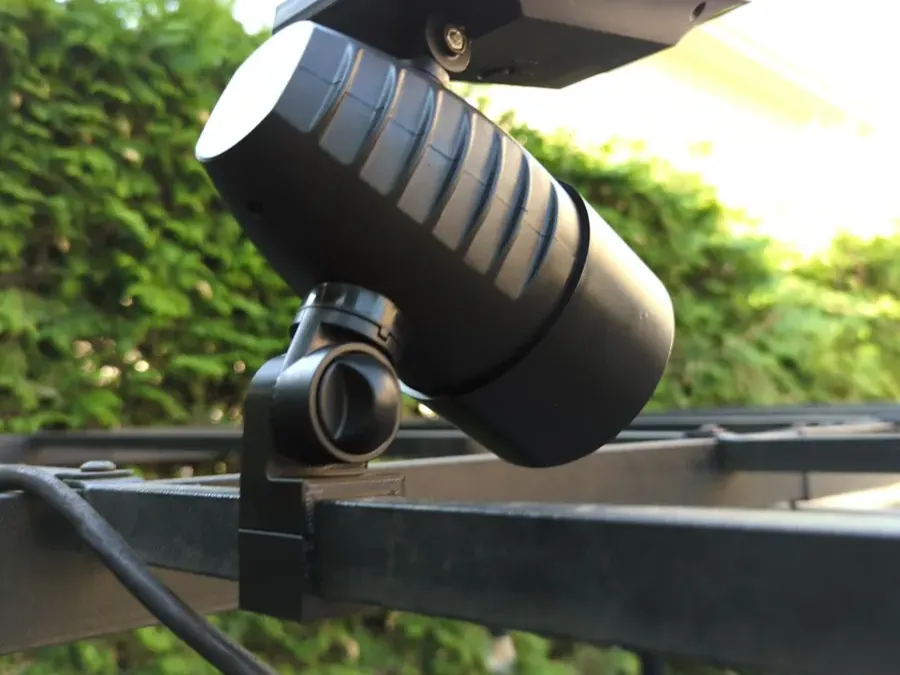

This is a custom replacement mounting bracket for the Merkery Smart Solar Spotlight (available from Walmart). The original has a ground spike or screw mount fitting. I needed something to clip around a 22.5mm square cross beam of the frame above our deck. Designed the slide-on clip mount for easy installation and removal. Insert the rubber seal from the original mount to ensure the light position will lock in place.
Printed in Black PETG with a 0.28mm layer height. Separate the two pieces on the build place and print with the back face on the plate. No supports needed.
Autodesk Fusion 360 model file is included for customization.
Originality of the Model
The author declares that this work is their personally shared model
This model is licensed under the following terms:
Credit must be given to the creator
Models(4)
Merkury Solar Spot Light Mount.3mfDesigner95.58 KB
2026-04-04
- Merkury Solar Spot Light Mount.f3dDesigner
176.17 KB
2026-04-04
Merkury Solar Spot Light Mount.stlDesigner71.76 KB
2026-04-04
Merkury Solar Spot Light Mount Clip.stlDesigner3.01 KB
2026-04-04
