Slim case for LD2420 Presence Sensor
Print Profile(1)
  • 0.2mm layer, 2 walls, 15% infill

    1-disc

    PLA

    Designer

0

0

4

1

Released 2026-04-07
Details
Files(6)
Makes & Comments (0)

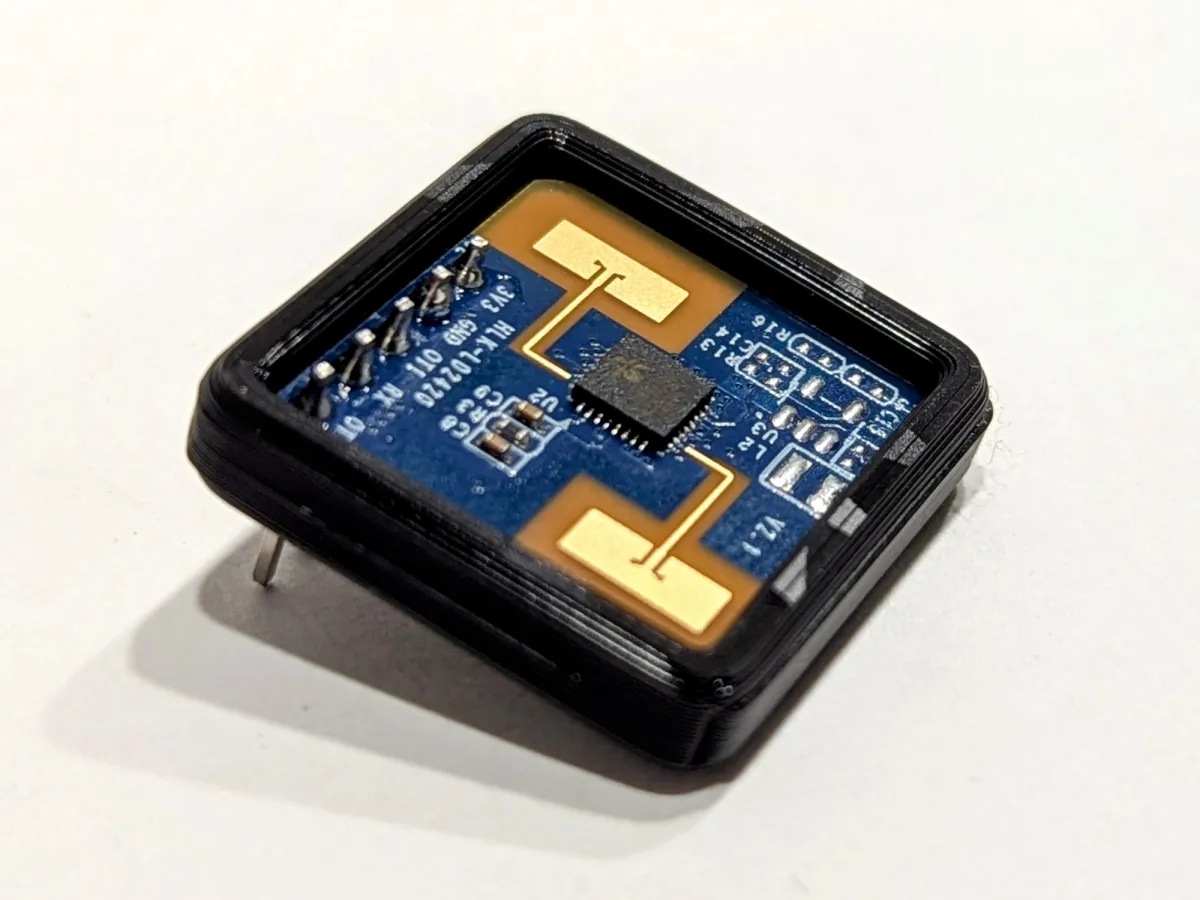

Slim protective case for the LD2420 24Ghz mmWave Radar Human Presence Sensor like the Hi-Link HLK-LD2420 from AliExpress

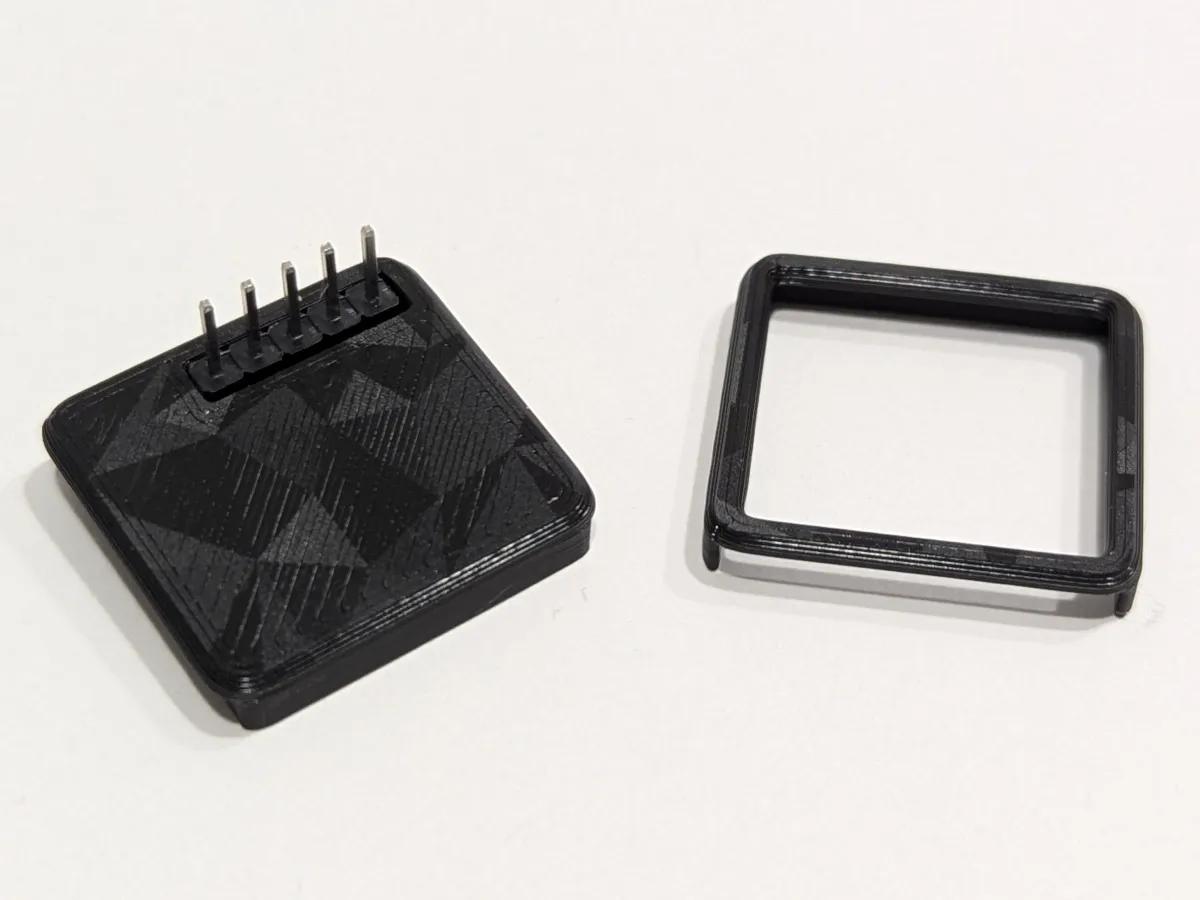

Similar to my other display screen and ESP32 cases, this provide a minimal case with easy access to the pins for attaching DuPont connectors



Sensor board size is 20mm x 20mm. Parametric Autodesk Fusion and STEP CAD files are included for customization

Originality of the Model

The author declares that this work is their personally shared model

Reprint source:https://www.printables.com/model/1255880-slim-case-for-ld2420-presence-sensor

This model is licensed under the following terms:

Credit must be given to the creator

Models(6)

  • model file image
    Base.stlDesigner

    28.79 KB

    2026-04-04

  • model file image
    HLK-LD2420 - Bambu Studio.3mfDesigner

    41.44 KB

    2026-04-04

  • model file image
    HLK-LD2420 v3.3mfDesigner

    79.50 KB

    2026-04-04

  • HLK-LD2420 v3.f3dDesigner

    171.70 KB

    2026-04-04

  • model file image
    HLK-LD2420 v3.stepDesigner

    101.86 KB

    2026-04-04

  • model file image
    Lid.stlDesigner

    40.71 KB

    2026-04-04
