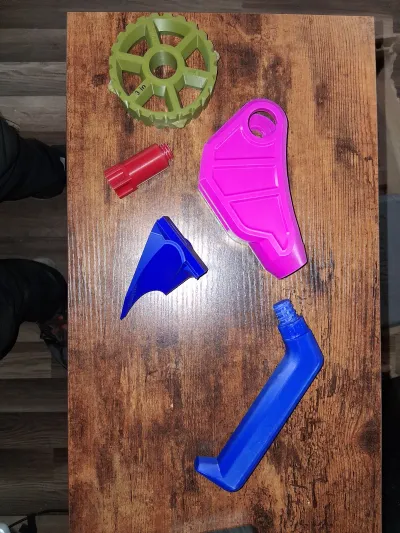

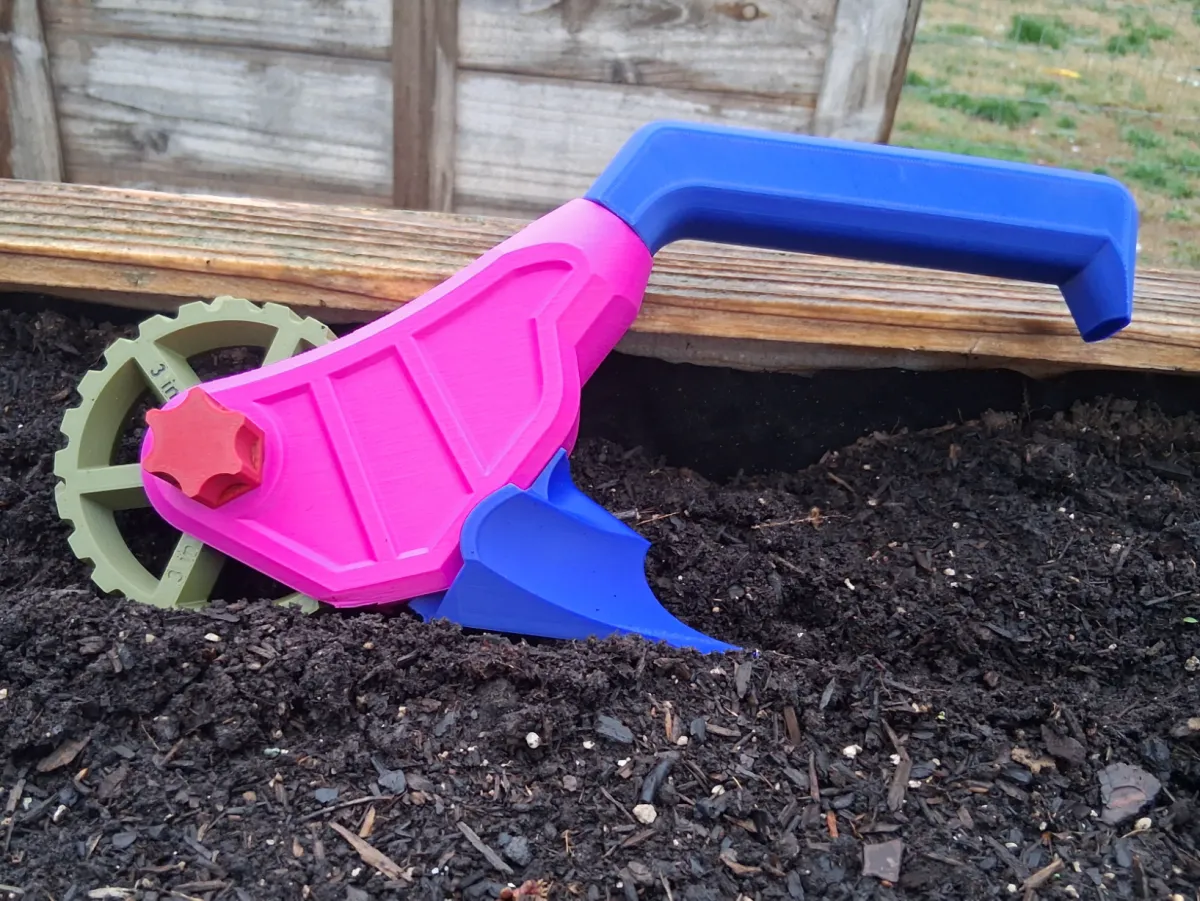

I Designed This To Aid In Getting Seed Spacing Done Quick And Simple With Just One Quick Movement. Then During Development Realized I Could Also Add A Trencher To Do Both Jobs In One Quick Motion

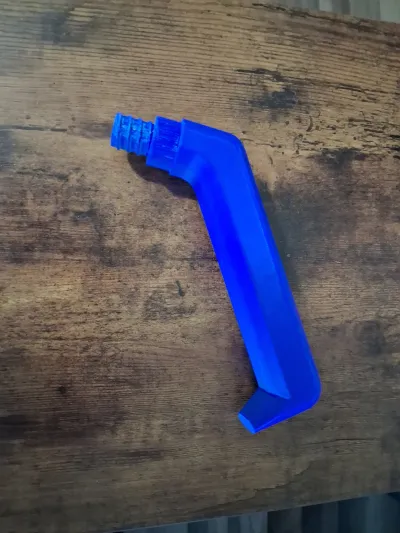

The Handle Is Removable For So That Most Broom Handles Can Be Inserted Into It For Working At Ground Level Comfortably.
4 Different Threads Were Tested - 4TPI Round, 4TPI Triangle, 5TPI Rounded Triangle, 5TPI Square (Industrial Handle).
Threads Are 4.5 TPI Because Most Broom Handles Are Either 4 TPI or 5 TPI.
Tolerances Were Adjusted To Accommodate All 4 Types.

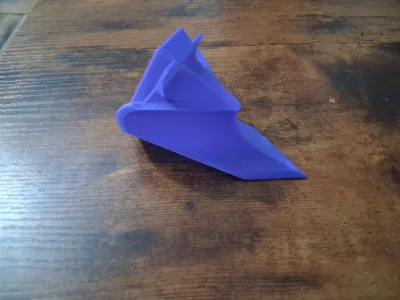

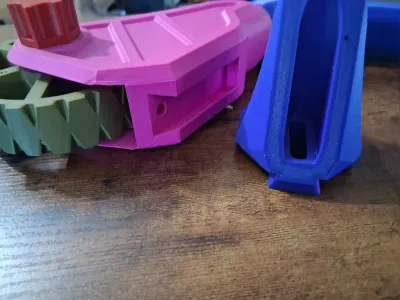

The Adjustable Plow is Held In Place With 1 M6x1x20mm Screw (Flat Head Or Slot Recommended Others Pack With Dirt)
Bill of materials
- NameQuantityNotes
- 1M6x1x20mm Button Head Screw1Flat Head Or Slot Recommended
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Remixes must be shared under the same license
Models(7)
Plow Attachment.objDesigner440.90 KB
2026-03-08
1.5 in Seed Wheel.objDesigner825.39 KB
2026-03-08

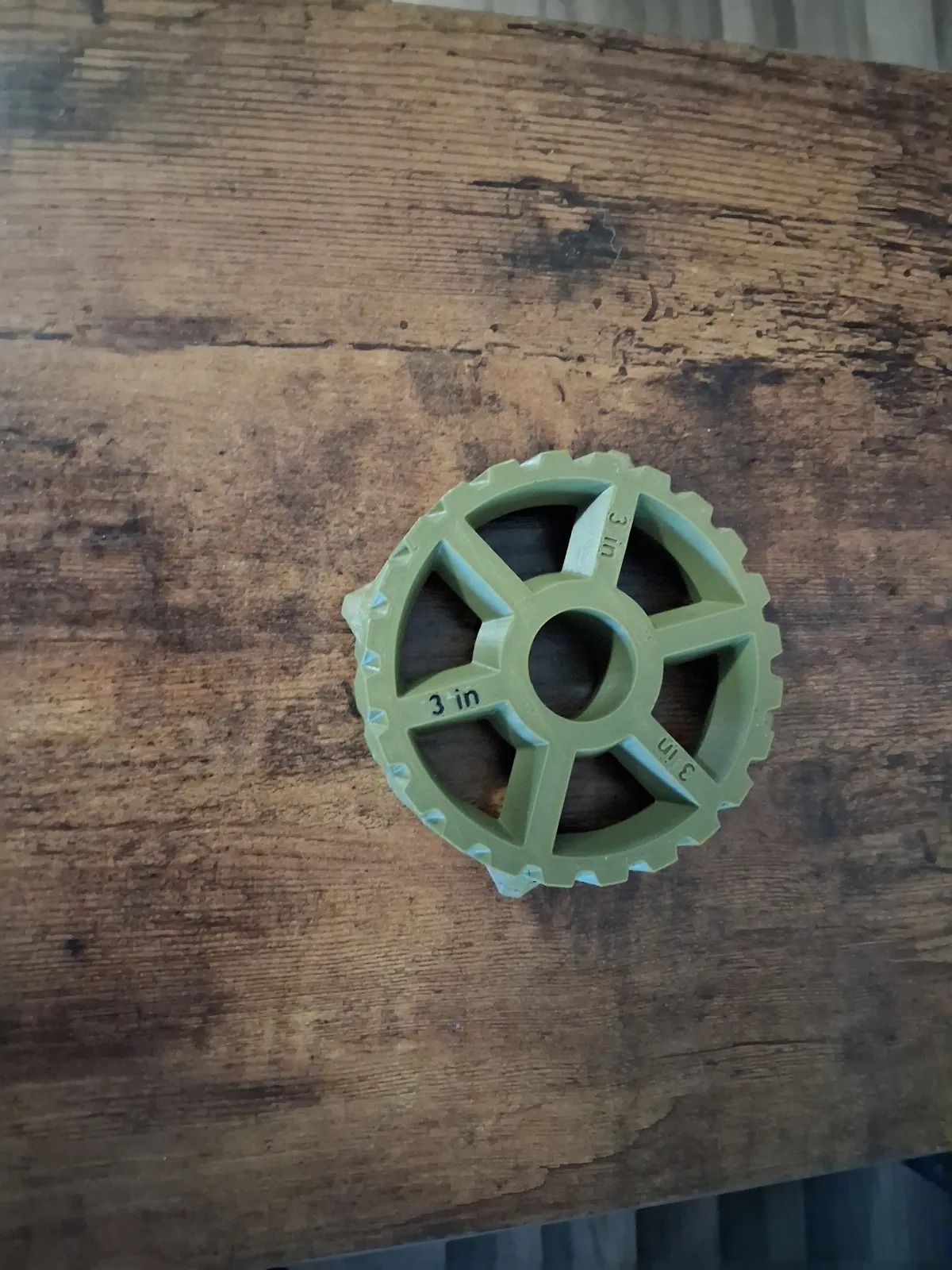

3 Inch Seed Wheel.objDesigner716.05 KB
2026-03-08
Seed Wheel Bolt.objDesigner563.11 KB
2026-03-08
Seed Spacer Handle.objDesigner470.59 KB
2026-03-08

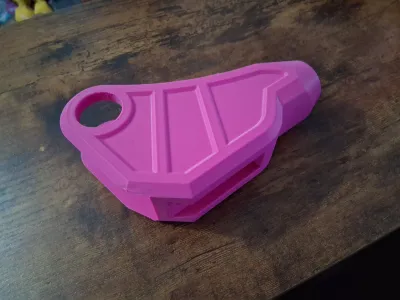

Seed Spacer Main Body.objDesigner1.22 MB
2026-03-08
Seed Spacing Wheel.3mfDesigner694.77 KB
2026-03-08
