Screw Tolerance U1
Print Profile(3)
  • 0.2mm layer, 2 walls, 15% infill

    2-disc

    PLA

    Designer
  • 0.2mm layer, 2 walls, 15% infill

    2-disc

    PLA

    Designer
  • 0.2mm layer, 3 walls, 15% infill

    1-disc

    PLA

    Designer

2

2

33

9

Released 2025-11-22
Details
Files(3)
Makes & Comments (0)

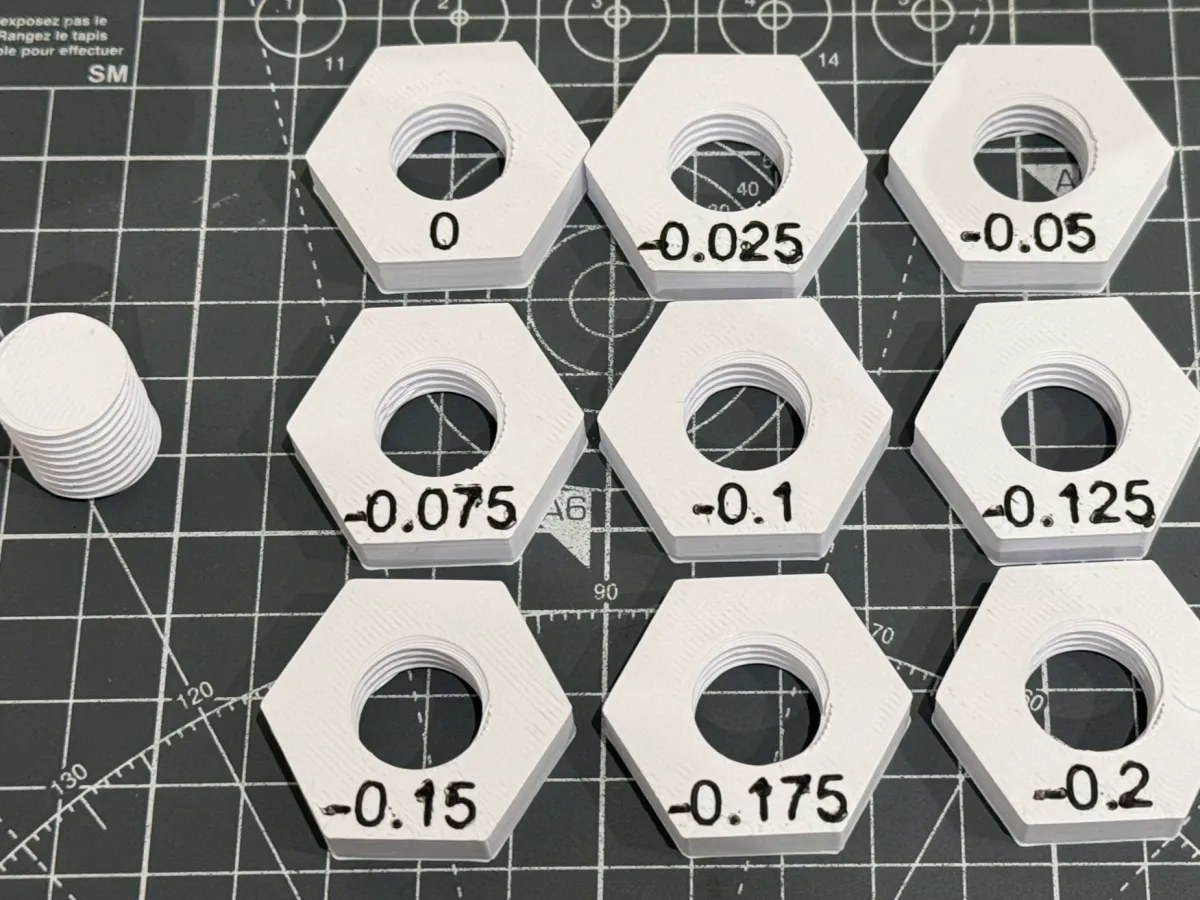

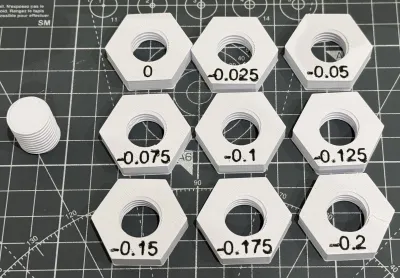

This is a test to verify what tolerance to us in your CAD screws.

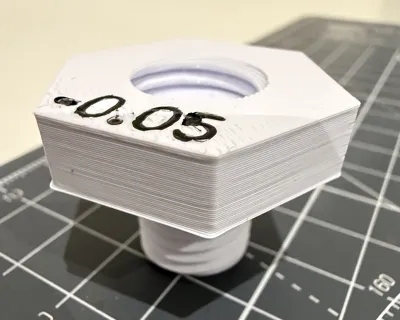

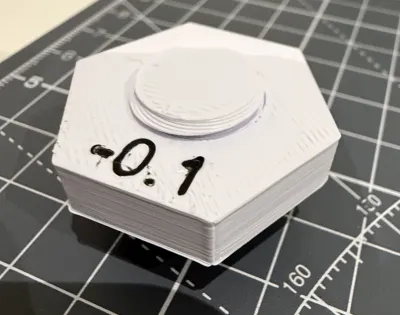

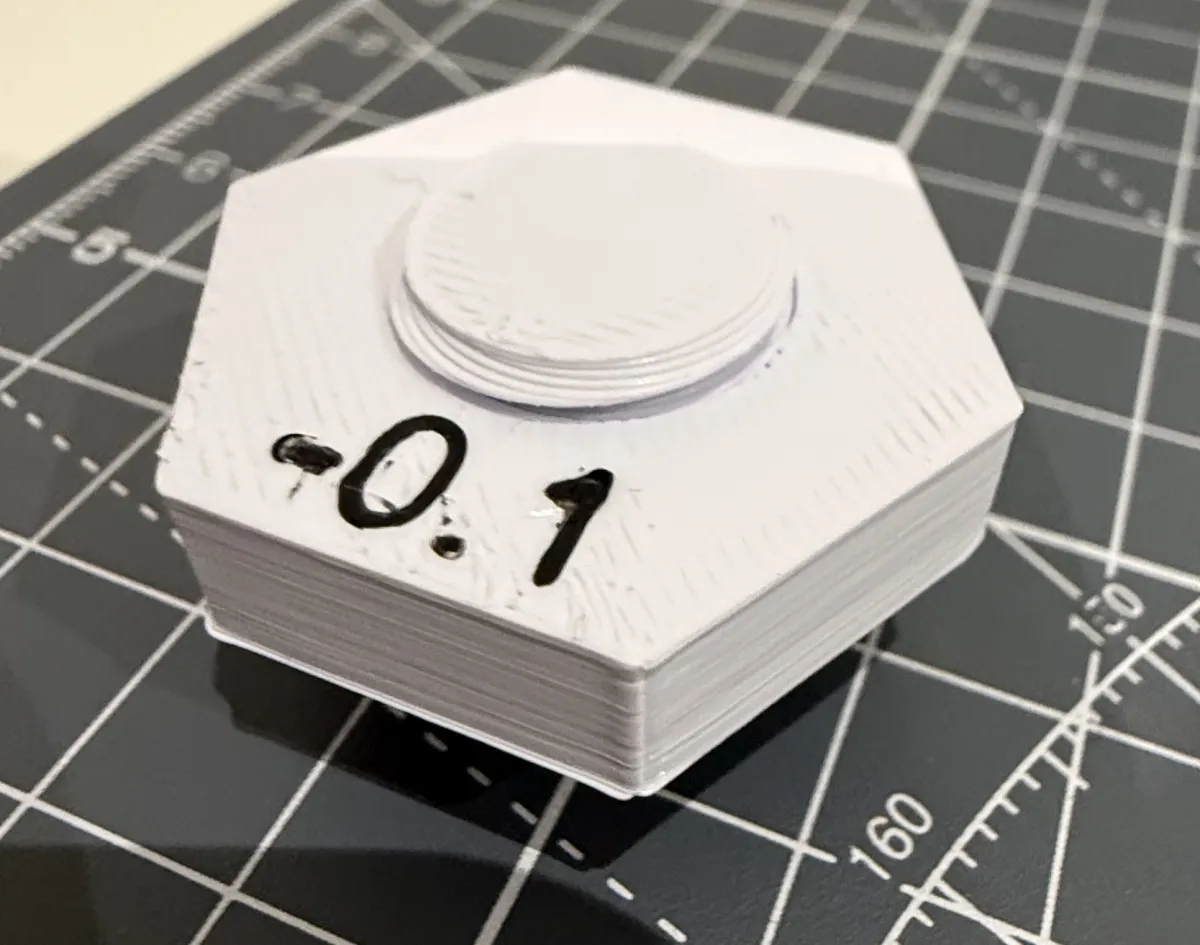

The tolerance is applied to the nut.
This is particularly handy if you have multiple printers and you want to be able to print something across them:

Print the test on each one of them, and then cross-check each printer's screw across all the other printers' nuts.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted
