6.25 mm Extended Offset Snaps (DS Part A) for Multiboard offset mount
Print Profile(0)

  • Earn points by adding print configurations

1

4

55

2

Released 2025-11-20
Details
Files(5)
Makes & Comments (0)

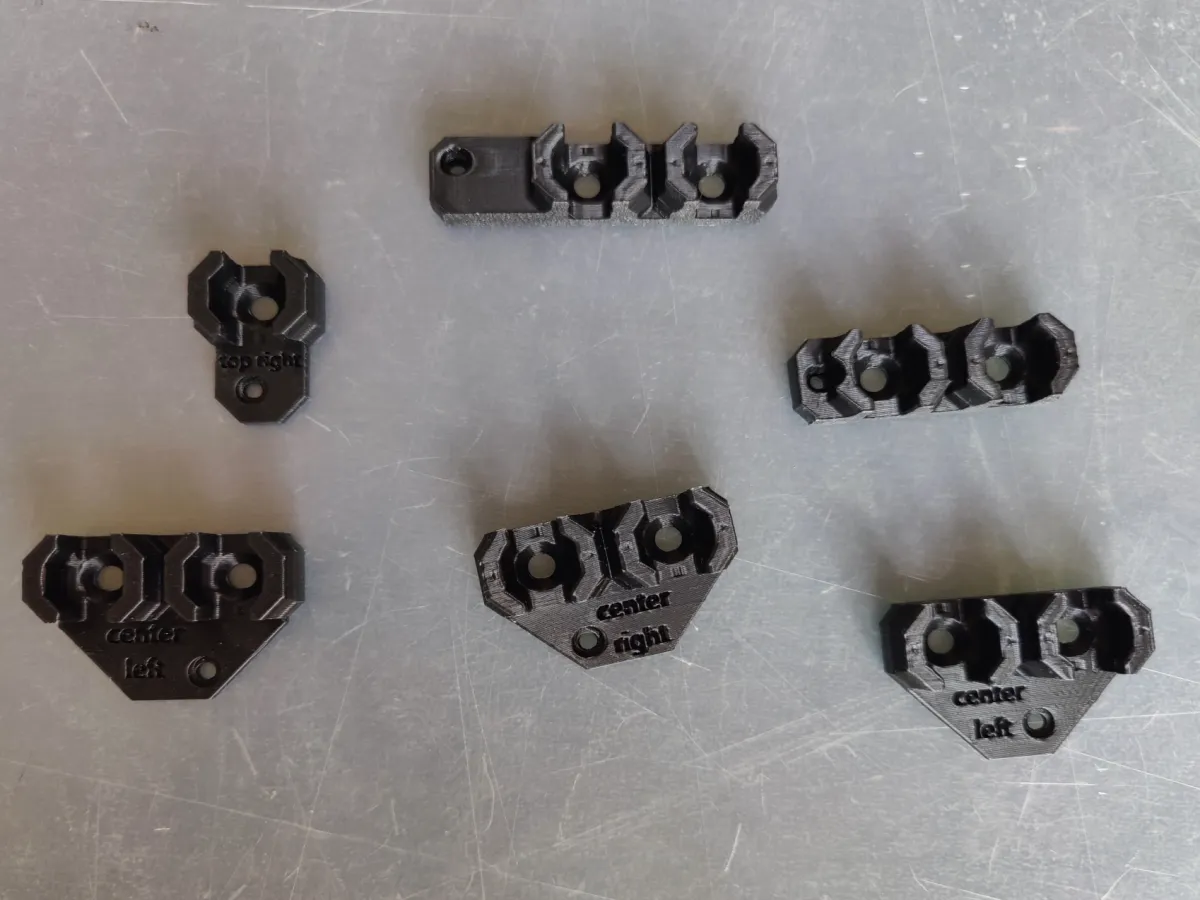

This is a collection of 6.25 mm Extended  Single & Dual Offset Snaps (DS Part A) designed for you to offset mount your Multiboard grids (6.25 mm is the most current & recommended standard for Multiboard system)



You can freely remix those offset mounts, adding holes & counterboring where & how you need them for your own projects.



Those are the one I designed to be further customized for my Elegoo Centauri Carbon Multiboard side panel Mod project





☕ Enjoying the design?

If you found this design helpful and would like to support my work, feel free to buy me a coffee!

👉  https://Ko-fi.com/skrattoune

Originality of the Model

The author declares that this work is their personally remixed model

Adaptation source:https://thangs.com/designer/Multiboard/3d-model/6.25%20mm%20-%20Dual%20Offset%20Snaps%20%28DS%20Part%20A%29-974338

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license

Models(5)

  • model file image
    6.25 mm - Dual Offset Snaps (DS Part A) extended w M3 hole.stlDesigner

    5.01 MB

    2025-11-19

  • model file image
    6.25 mm - Dual Offset Snaps (DS Part A) side extended.stlDesigner

    4.95 MB

    2025-11-19

  • model file image
    6.25 mm - Dual Offset Snaps (DS Part A) extended.stlDesigner

    4.95 MB

    2025-11-19

  • model file image
    6.25 mm - Dual Offset Snaps (DS Part A) w spacing.stlDesigner

    5.03 MB

    2025-11-19

  • 6.25 mm - Single Offset Snap (DS Part A) side extended.stlDesigner

    1.61 MB

    2025-11-19
