PCB Fixture
Print Profile(1)
  • 0.2 mm layer height, 2‑wall walls, 25% infill density

    1-disc

    PETG

    Designer

0

1

7

1

Released 2025-11-04
Details
Files(3)
Makes & Comments (0)

A small jig designed for soldering components onto small PCBs

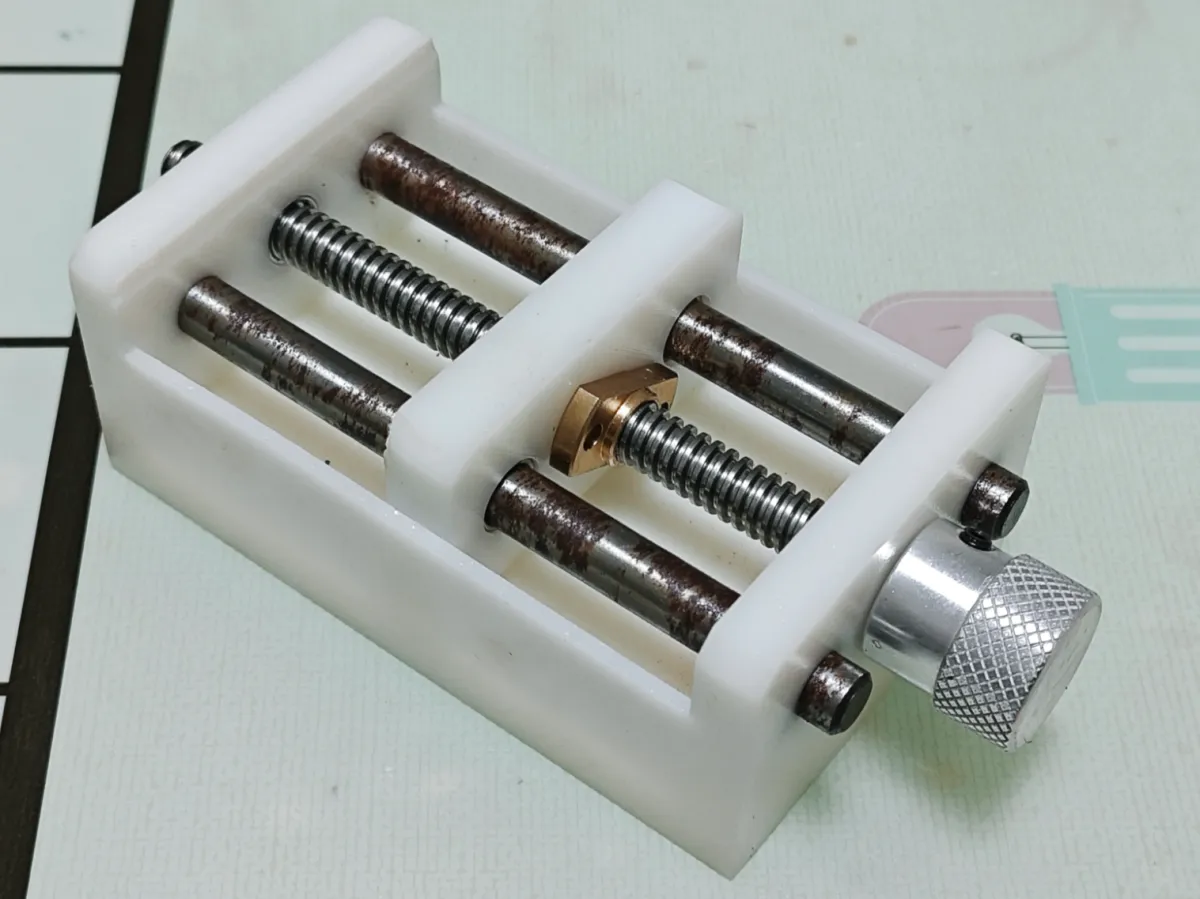

Requires two 100 mm–long 8 mm linear guide shafts (stainless steel is recommended—otherwise, the resulting assembly will look like the example shown in the image), along with one 132 mm T8 lead screw paired with a flange nut.

Simply add an 8 mm lockable hand‑tightened nut head and an 8 mm stop ring to complete the setup.

The mounting holes for the linear guide shafts on both sides may be slightly tight, so you’ll need to rotate them into place as you tighten them.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    8mm光轴
    2
    100mm长度
  • 2
    T8丝杆+法兰螺母
    1
    132mm长度
  • 3
    手拧螺母内径8mm
    1
    需要有小螺丝锁紧
  • 4
    8mm限位环
    1

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Standard Digital File License

This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.
