light
Wood grain
geometric
sense of design
- 0.2 mm layer height, 2‑wall walls, 15% infill density
1-disc
PETG
Designer - 0.2 mm layer height, 2-wall structure, 0% infill
1-disc
PETG
Designer - 0.2 mm layer height, 2-wall structure, 0% infill
1-disc
PETG
Designer
49
12
This model is to test the transparency effect brought about by the changes in the internal structure of the model of the wood grain modifier.

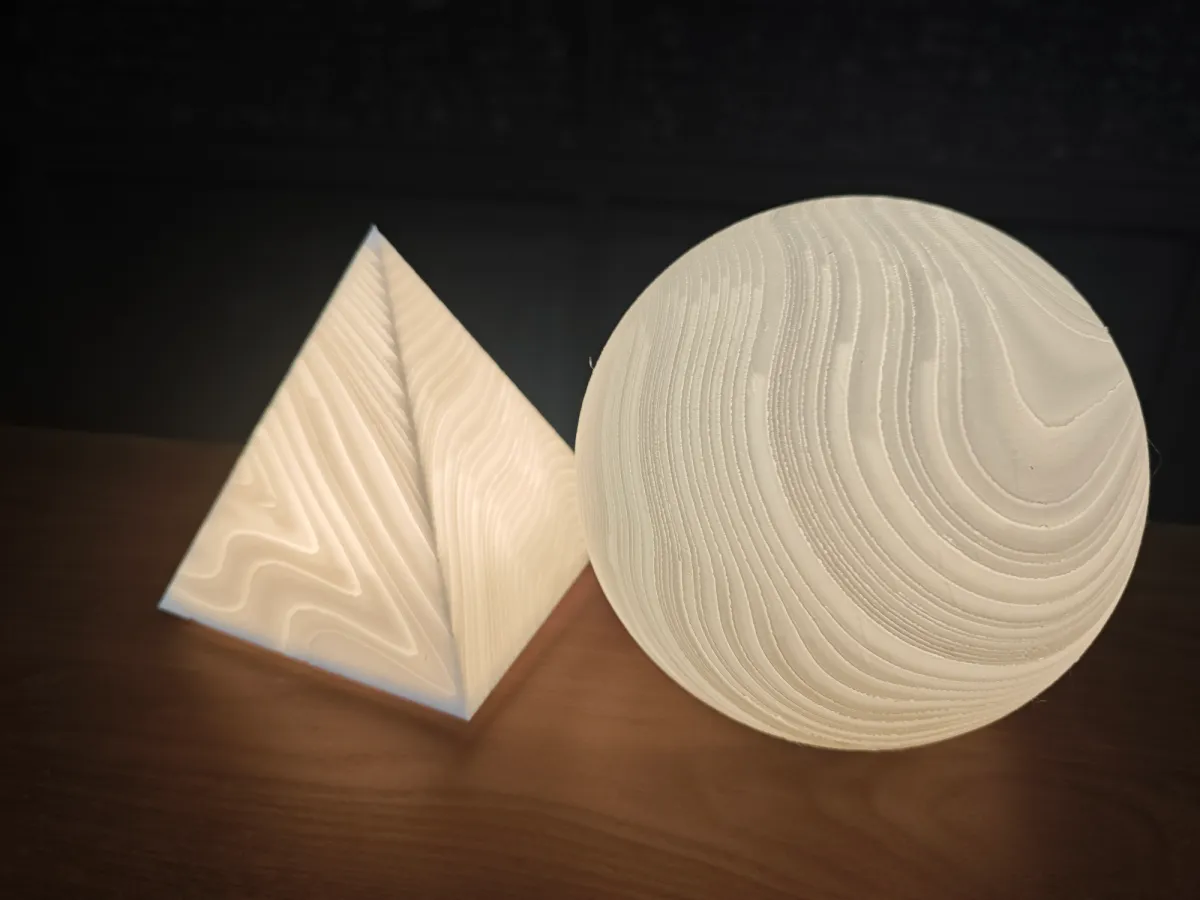

This model uploads two print configurations, the first two are lampshades and the third is a lamp holder

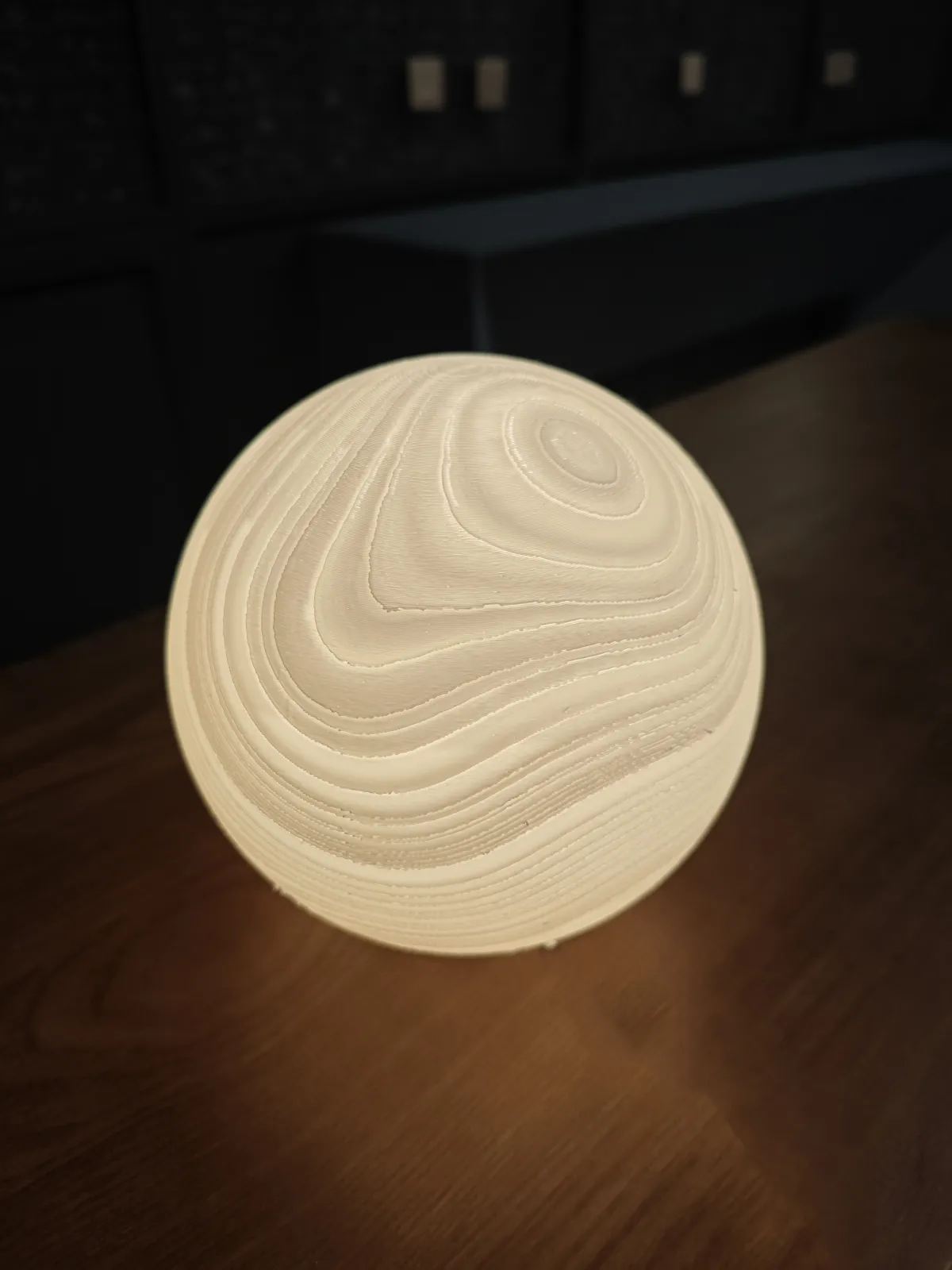

The diameter of the ball lamp is 156mm, the bottom edge of the pyramid lamp is 120mm long, the height is 120mm, and the thickness of the lampshade is 3mm.
The internal filling is 0, and the structural strength of the model is achieved by the new wall brought by the wood grain modifier.

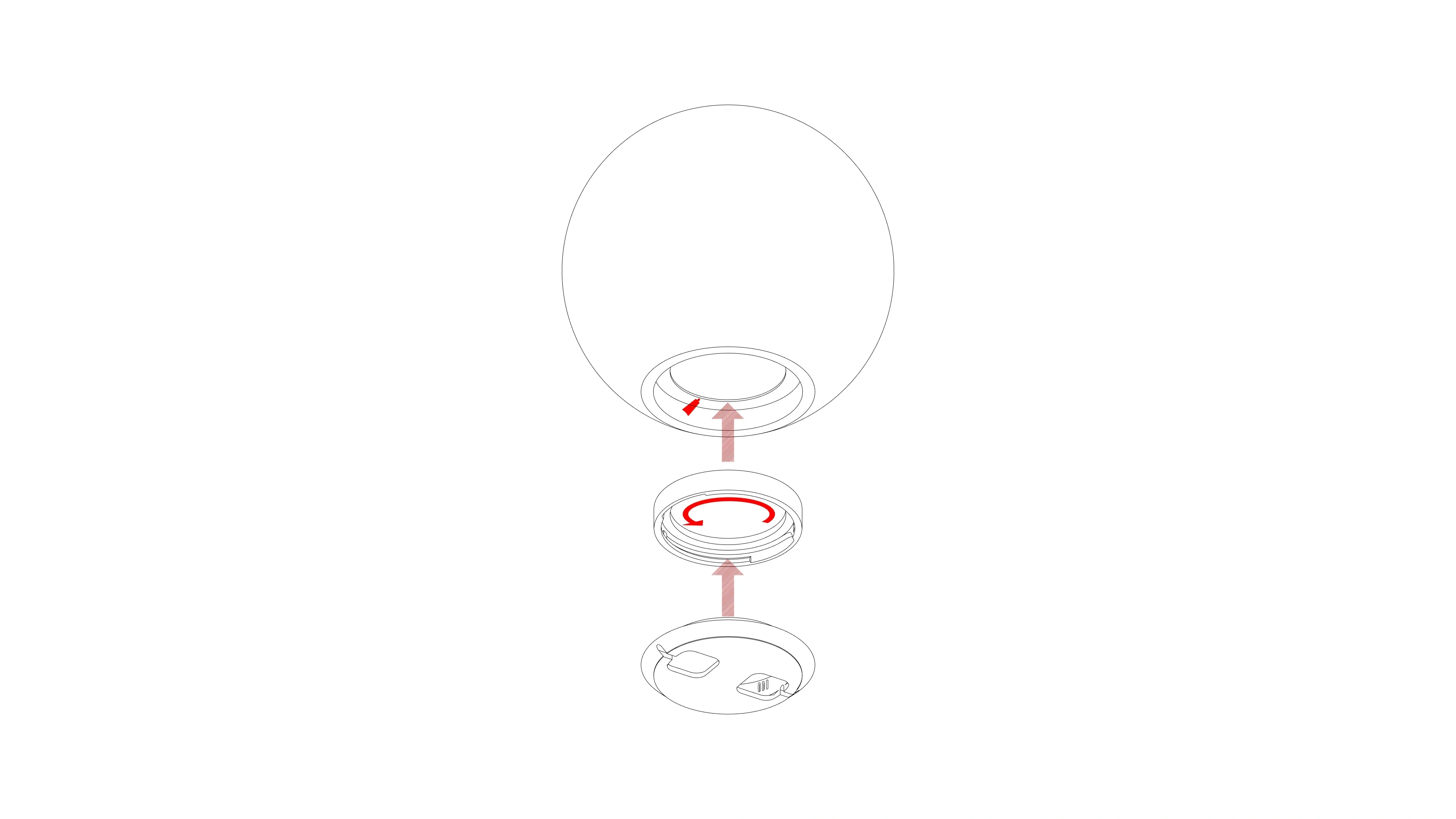

There is a small amount of filling in the lampshade. I did not make the interface component with the lamp holder (the middle part in the figure below) and the lampshade as a whole, so that I can rotate and replace the lampshade conveniently after putting it on. If you need a more stable connection, please glue the lampshade and the interface.
Bill of materials
- NameQuantityNotes
- 1LED灯-直径59mm，厚度8mm1
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.
Models(3)
- 01-lamp-sphere.3mfDesigner
29.73 MB
2025-08-10
- 01-lamp-pyramid.3mfDesigner
17.52 MB
2025-08-10
- 02-base.3mfDesigner
1.31 MB
2025-08-10
View all(3)
