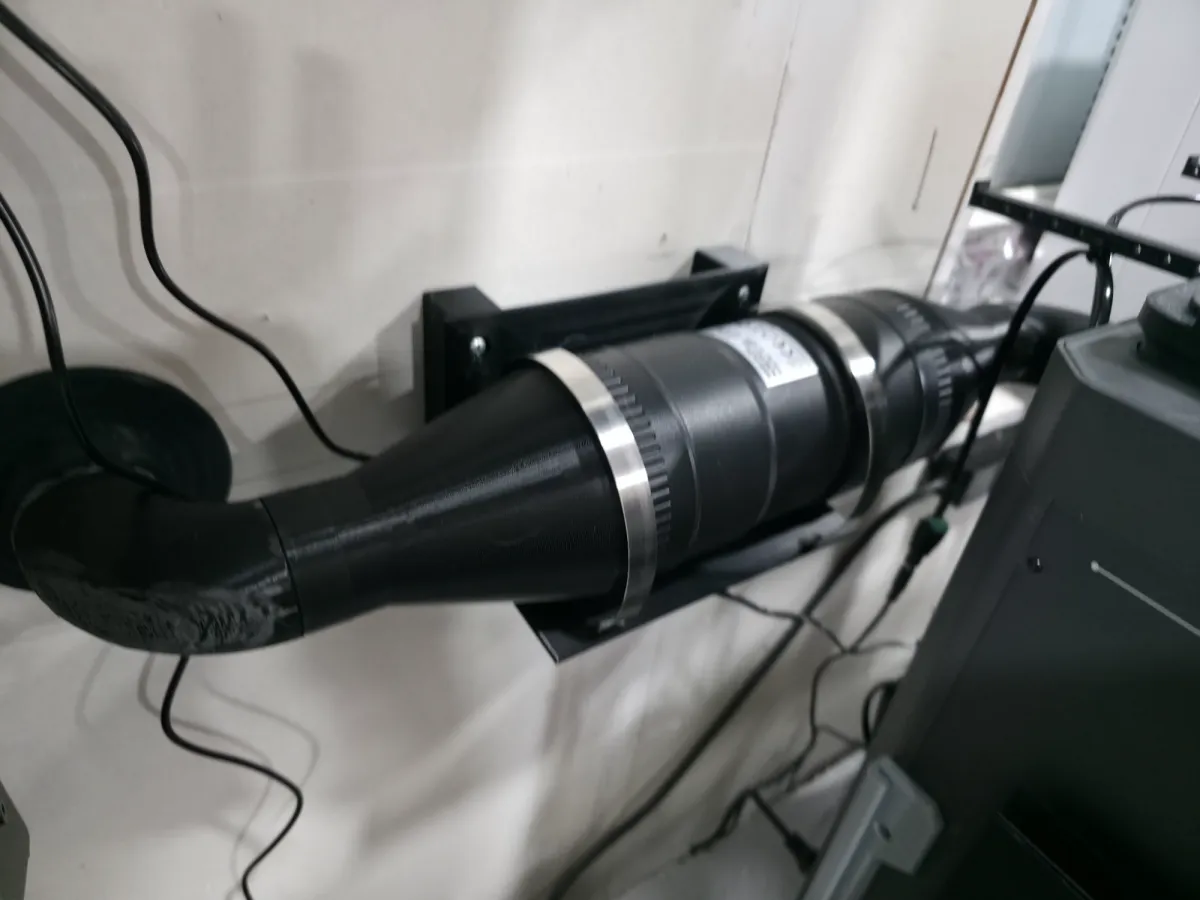

This is an entire exhaust system for the Centauri Carbon, including the manifold, ductwork, fittings, gasket, and wall penetration. It's compact, prints easily, and looks sleek. I printed the wall penetration section out of ASA, and the rest of the system from matte black PETG. Each piece has a socket for a male or female end, and I fused the parts together using Weld-On #3. Just apply a little on each part, hold them together for about 30 seconds, and they'll stay. I give it an hour or so before handling the glued pieces, and 24 hours to fully cure. The inline duct fan is a 4" variable speed fan that I found on Amazon. It's quiet and works well. The fan and the elbow to manifold connection are friction fit and NOT glued. The gasket is TPU and is optional. I found no real difference between using it and not using it, but I like having the option. You can cut the pipes to length with a pipe cutter, or use your slicer to cut them to fit. The duct pipe and elbows are all 50mm, so using a 2" hole saw for the exterior wall worked perfectly. I put silicone on the molded collar, pushed it flush with the siding, then slipped the removable collar on from the inside and fused it in place with the Weld-On. I designed a shelf for the duct fan to sit on, and it's strapped down with 4" hose clamps. I ended up needing to space the shelf out from the wall about 25mm, so I made some quick spacers to fit behind it if you need them also. I scuffed each joint a bit with 320 grit sandpaper before fusing.

Printed on Centauri Carbon
0.20 Layer Height
100% Infill
Elegoo ASA
SUNLU Matte Black PETG

Hon & Guan 4" Inline Duct Fan
https://www.amazon.com/dp/B0DK5HC3TB?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_1&th=1

4" Hose Clamps
https://www.amazon.com/Adjustable-Stainless-Steel-Clamps-Ducting/dp/B07HVBLVD2/ref=sr_1_7?dib=eyJ2IjoiMSJ9.pNaOfvQT-ekiDC-WIbHVSDW7kXhSKOgV57rAw3qWP3JBDe-sNWfpB9ipAcV7kk58GVz05Y6sg29CezUshOA8mgzVGfzi29vKA3xEkANmciSE0uBIQ3jtByGo4ha1m0rxw6E1DGvRqI_YNuQNksMTF-A0Qspc_oLlZ2jhhbA65K5gg-BXASbGODaJuEJu0KP4tw9db8PoLJdEA5YCnuirm0k5xZYG35Hjd0DPxDcp6kI.gYLuZ1nL06YHOG0NSROrD0mMlPyjFdKFHfvi_tv6S80&dib_tag=se&keywords=stainless%2Bsteel%2Bhose%2Bclamps%2B4%22&qid=1771528427&sr=8-7&th=1

Weld-On #3
https://www.amazon.com/gp/product/B0149IG548/ref=ewc_pr_img_2?smid=A1P2GRPKFIY2B9&psc=1
