Nema
stepper motor cooler
40x40mm fans

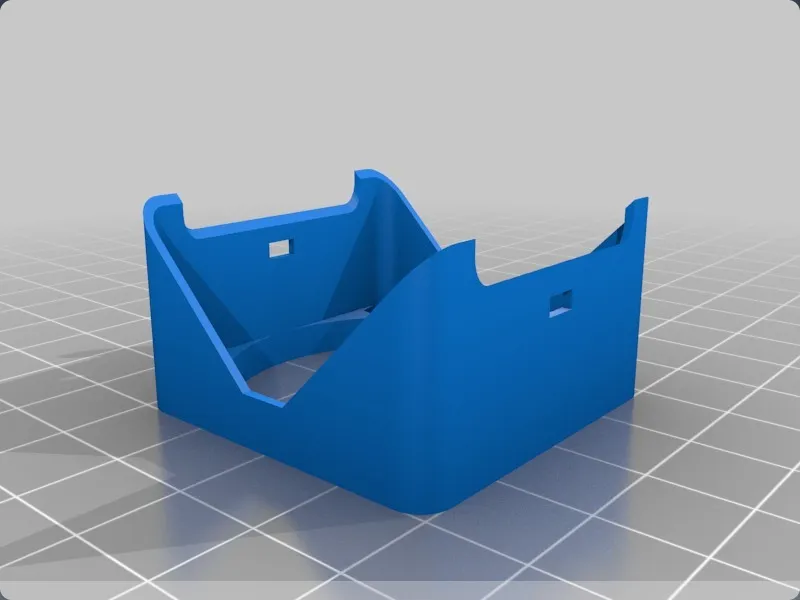

Nema stepper motor cooler: for 40x40mm fans
Print Profile(0)
3
2
Released 2025-07-23

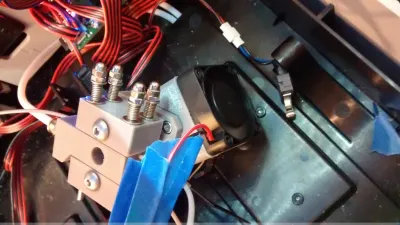

my bottom stepper motors got pretty hot (about 60°C): this should not be a problem usually but to ensure maximum power out of my Nema stepper I created this fanmount.
Prints easy whithout support!

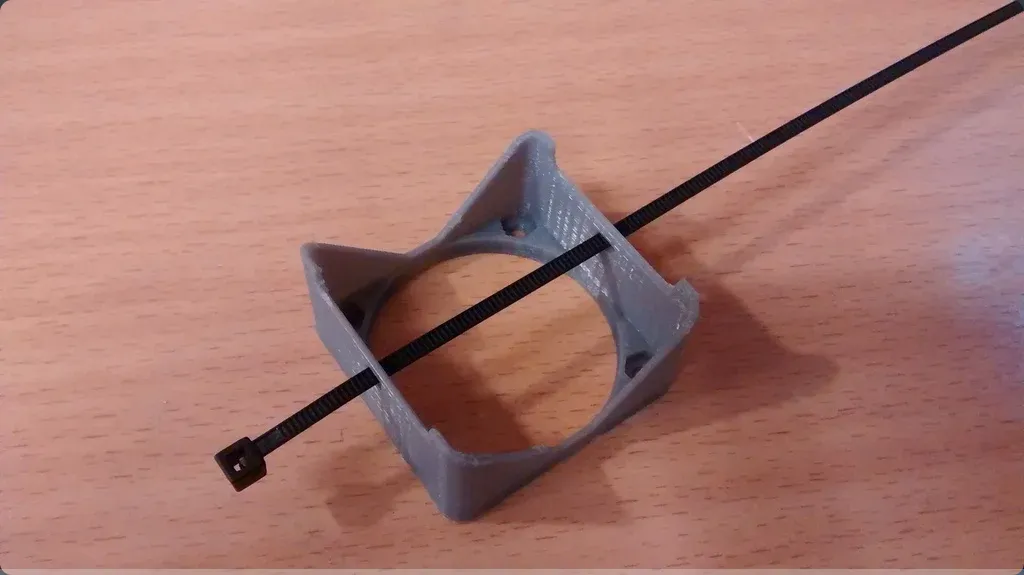

Mount with a zip-tie! (I used a 3,2mm wide one)!
You'll need:
a 40x40 fan
4 M3 nuts
4 M3x?? screws depending on your height of your fan
Originality of the Model
The author declares that this work is their personally shared model
Original creator:
MLworx
Reprint source:https://www.thingiverse.com/thing:728065
This model is licensed under the following terms:
Credit must be given to the creator
