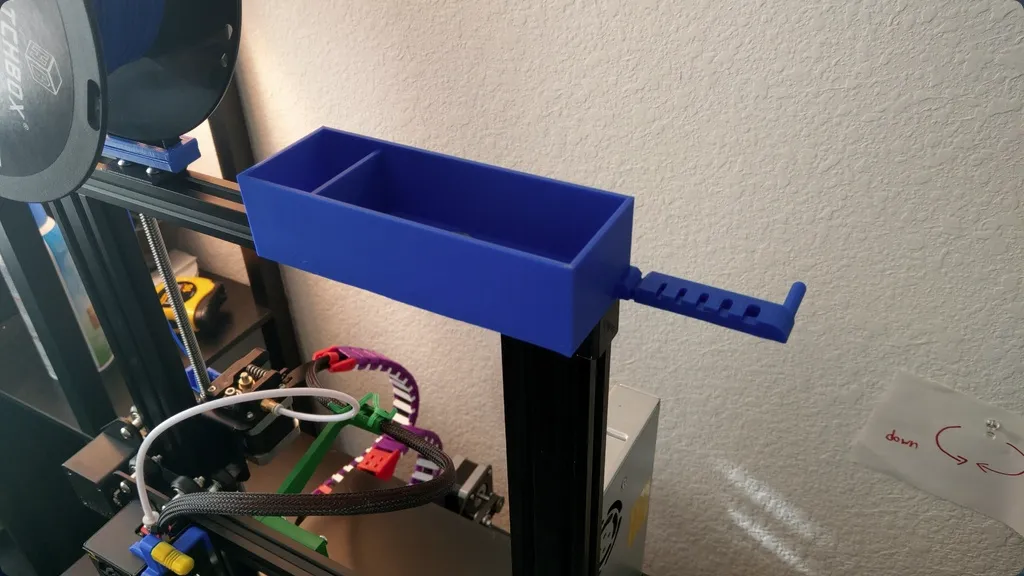

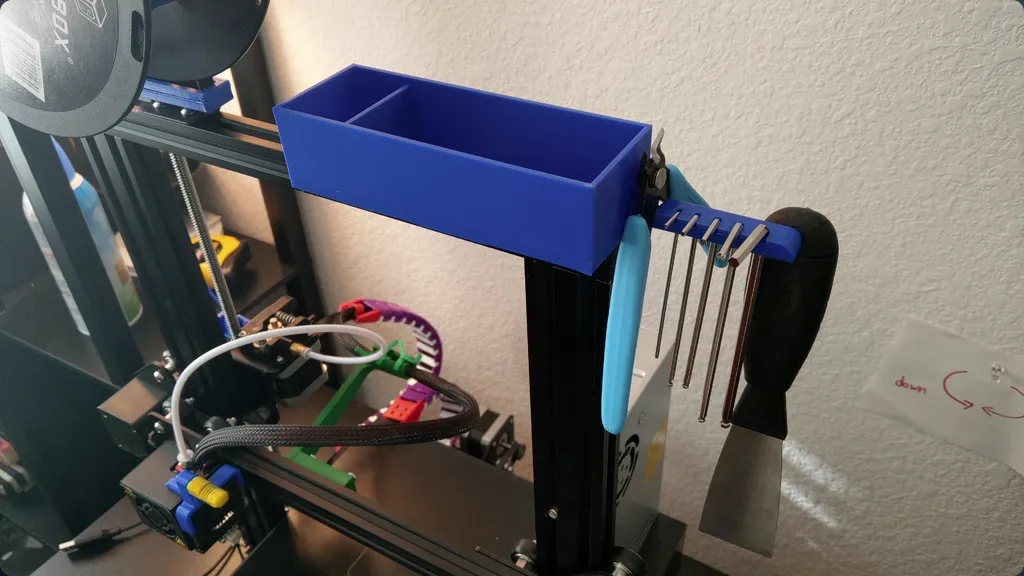

Tool holder for Ender 3 Pro! Design is specifically for the toolset that comes with the printer, with a little space for other smaller tools or parts in second compartment. Space on overhang arm for allen key set, spatula, and clippers. Put wrenches in the box. Remix design from similar tool holder by @qtr151. This design is a sliding clip-on as opposed to using the primary gantry screws to hold it in place.
To install just pop off the endcap on the right side of the top gantry and slide the holder in. Fit will be snug. Do NOT recommend trying to bend the clips around the gantry bar, they will break!
Print with supports and preferably raft! I made it with supports at a 0.2mm air gap and a 6mm raft.
Filament material: PLA 1.75
Resolution: 0.15mm
Infill: 20%
Nozzle Temp: 210ºC
Print bed: 60ºC
Speed: 40mm/s
Print Time: est 16 hours at current speed.
Originality of the Model
The author declares that this work is their personally shared model
This model is licensed under the following terms:
Credit must be given to the creator
Models(1)
- Top_Gantry_Toolbox_v2.stl
68.15 KB
2025-07-16
