Metric Bolt Measuring Device
Print Profile(0)

  • Earn points by adding print configurations

0

1

66

13

Released 2025-07-21
Details
Files(1)
Makes & Comments (0)

Great design but I wanted a few more bolt sizes.

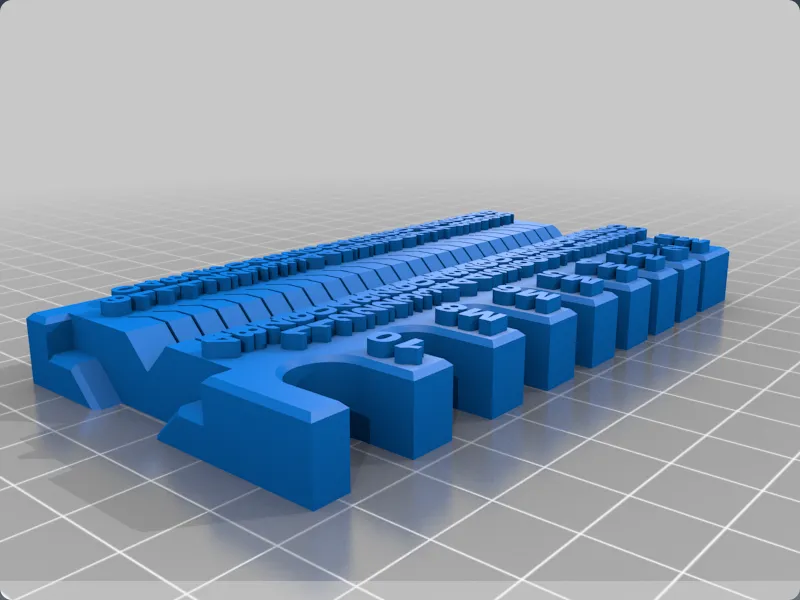

I recreated this from scratch in Fusion360 and added M6, M8 and M10 bolt sizes. It can now measure up to 100mm bolts.

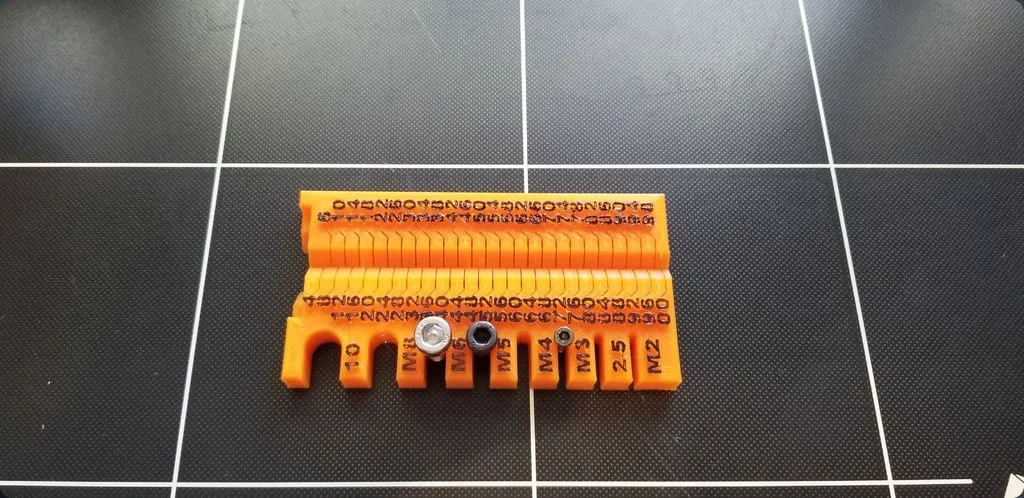

The one I printed was printed in one color and I just used a sharpie to darken the letters and numbers. I plan to print another and do 2 colors.

Originality of the Model

The author declares that this work is their personally shared model

Original creator:
ejjenkins
Reprint source:https://www.thingiverse.com/thing:4540343

This model is licensed under the following terms:

Credit must be given to the creator

Models(1)

  • Metric_Bolt_Measure_M2-M10.stl

    3.76 MB

    2025-07-04
