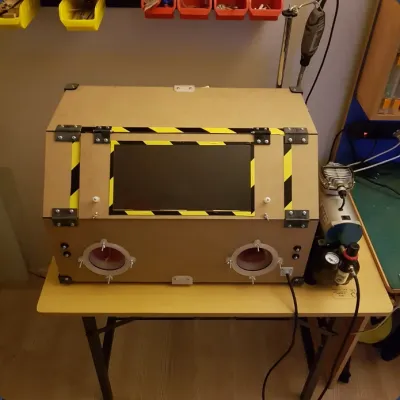

It's a magic box that provides peace at home!!

You have your own small space at home and you don't want to fight with your wife or mum, make this cabin immediately:)

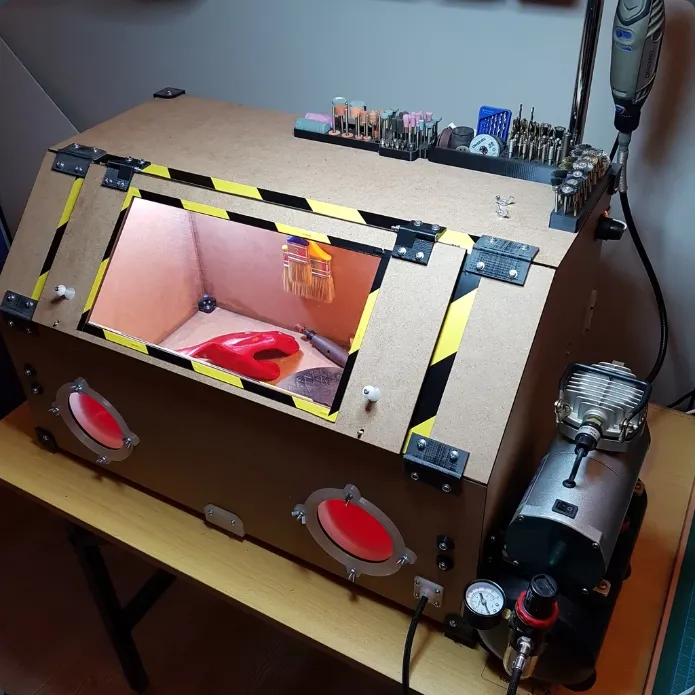

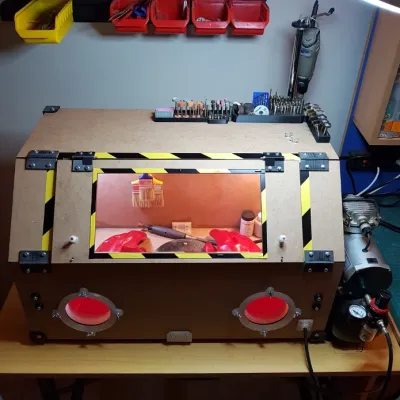

You can use for Dremel, Proxxon, Airbrush, Sandblaster or any dirty work. All in one solution...

If you want to use for airbrush painting, drill any hole and attach exhaust fan.

Use 4mm plywood/MDF or something else but it has to be 4mm thickness, i used 4mm MDF.

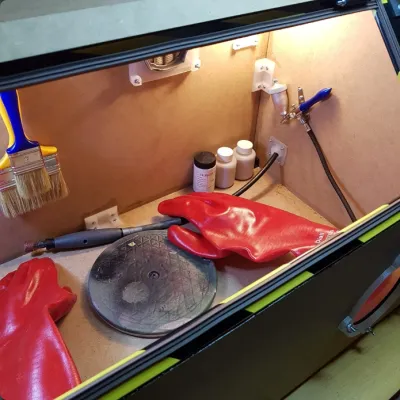

You can use two hose (8mm and 10mm) and you can add 2 light bulb (28mm hole).

I used top of the (Dremel 220-01 WorkStation) tube for dremel suspender. You can use any tube of "19x370mm" diameter.

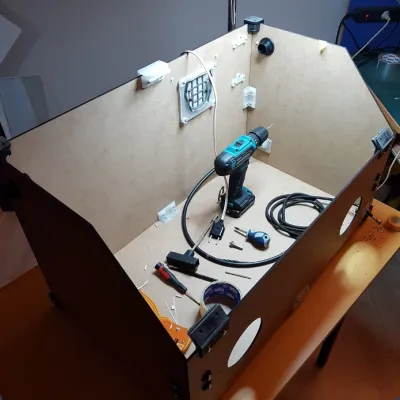

Drill backplate and use any air filter.

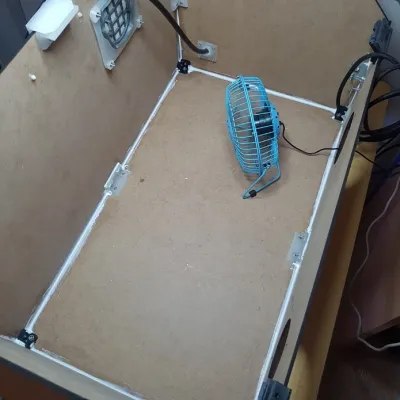

Seal the cabinet edges with glue from inside for dust and air isolation, thats a very important section! Otherwise, it doesn't make sense to use this cabinet.

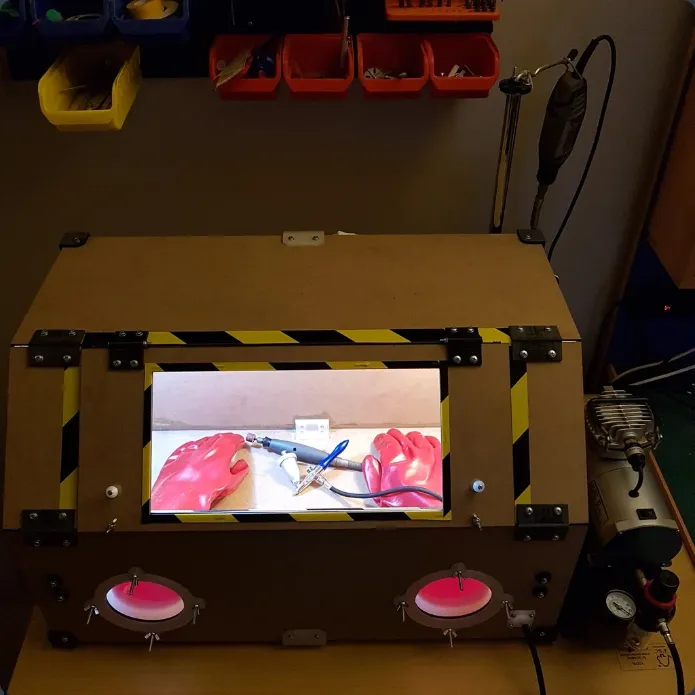

Diameter of gloves 105mm, i used 11" xl pvc work glove.

Use a metal clamp to fix the glove.

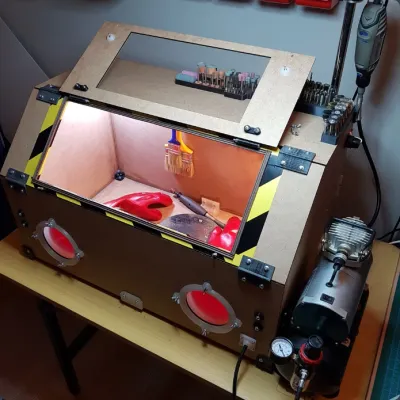

Apply rubber to the edges of the cover for isolation.

İnner dimensions (680x396x398mm).

I added dwg and dxf file for laser cut, also added skp (sketchup) file.

You need some nuts bolts and washer;
m3x35mm X2
m3x20mm X6
m3x15mm X30
m3 nut X38
washer X36

m4x30mm X2
m4x20mm X12
m4 fiber lock nut X4
m4 butterfly nut X10
washer X14

m6 fiber lock nut X8
m6 foot X4
