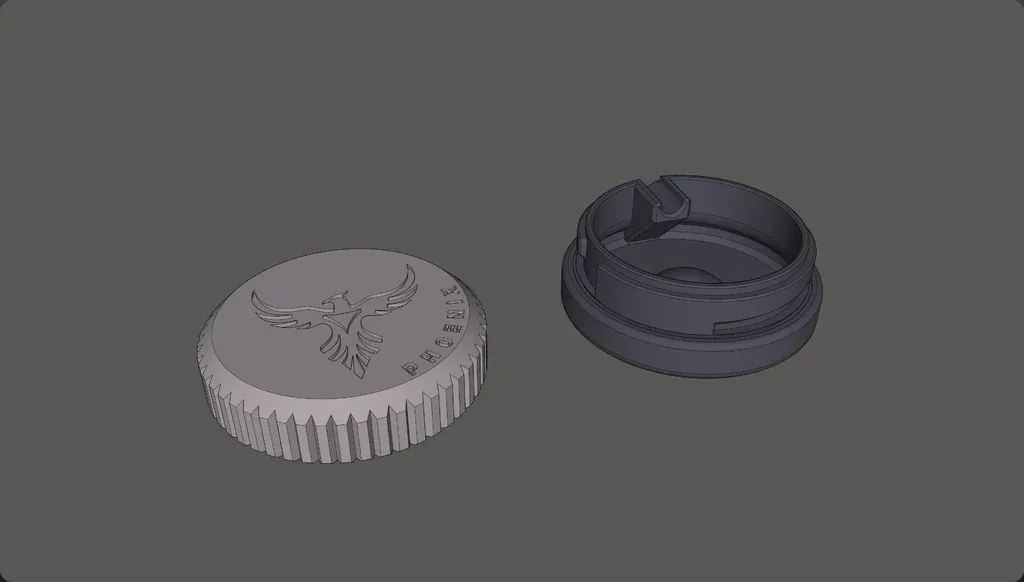

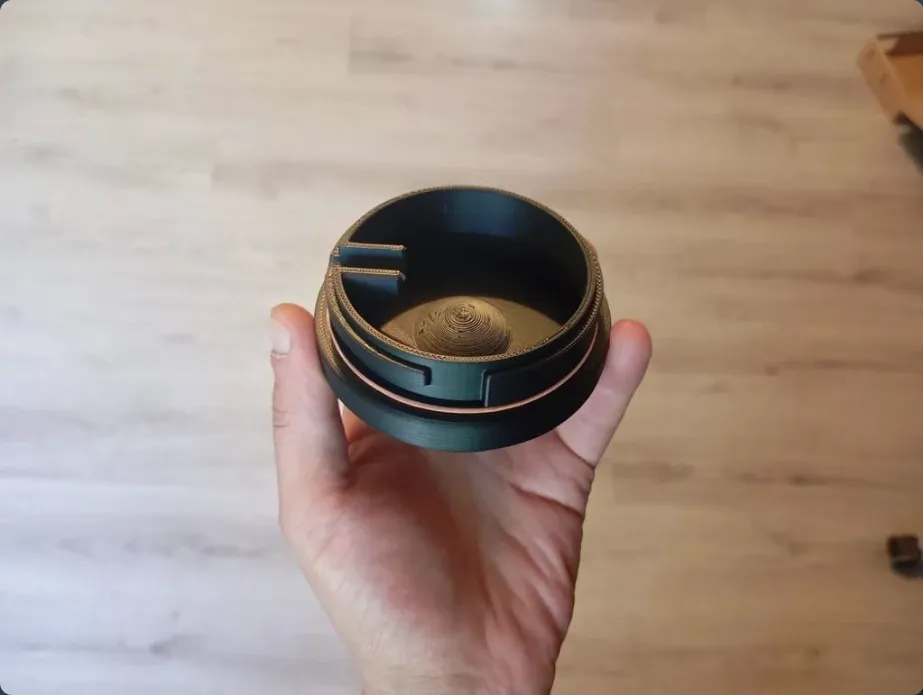

Phoenix ashtray:

  • For personal/travel usage
  • With groove for sealing rubber (For a regular hair band with a diameter of 4 cm)
  • Bayonet thread

Print Settings:

  • Material: ASA
  • Flow rate: 0.95 (95%)
  • Nozzle diameter: 0.6 mm (recommended)
  • Layer height: 0.2 mm
  • Perimeters: 3 (with 0.4 noozle use 4 perimeters)
  • Solid layers: Top: 6, bottom: 4
  • Infill: 35%
  • Brim: 4 mm
  • Print speed: 30 mm/s
  • Print orientation: As in .stl files
  • Support: No

Benefits of printing:

  • Chamber
  • Heated chamber at 45°C
  • Smooth PEI bed plate, 3DLack

  • If you don't have any of the benefits, you can use ASA_anti-warping_triangles, in PrusaSlicer/Superslicer set precise alignment (for proper alignment of objects on the print bed) and use a 4mm brim on everything.

Note: The Phoenix_Bottom model includes a groove (at the end of the bayonet thread) for inserting a sealing rubber band. Use tweezers to attach the rubber band into groove.

(With a rubber band, you will get a full anti-smell seal).

Originality of the Model

The author declares that this work is their personally shared model

Original creator:
zacharc

This model is licensed under the following terms:

Credit must be given to the creator

Models(4)

  • ASA_anti-warping_triangles.stl

    2.43 KB

    2025-06-27

  • Phoenix_Bottom.stl

    797.74 KB

    2025-06-27

  • Phoenix_Lid.stl

    323.81 KB

    2025-06-27

  • Sketchup_2015.skp

    1.94 MB

    2025-06-27
