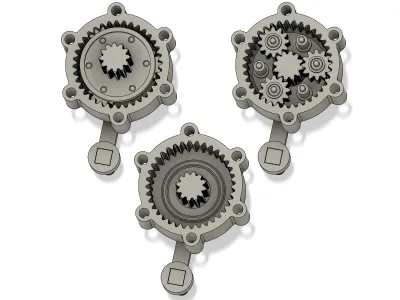

Stackable 4:1 Planetary Gearbox – 3D Printable Mechanism - VogMan

Explore gearing and mechanics hands-on with this modular, stackable planetary gearbox!

Designed with a 4:1 ratio, this 3D printable gear system lets you stack multiple units together for greater gear reductions and complex builds. Perfect for hobbyists, tinkerers, educators, and anyone who loves mechanical projects!

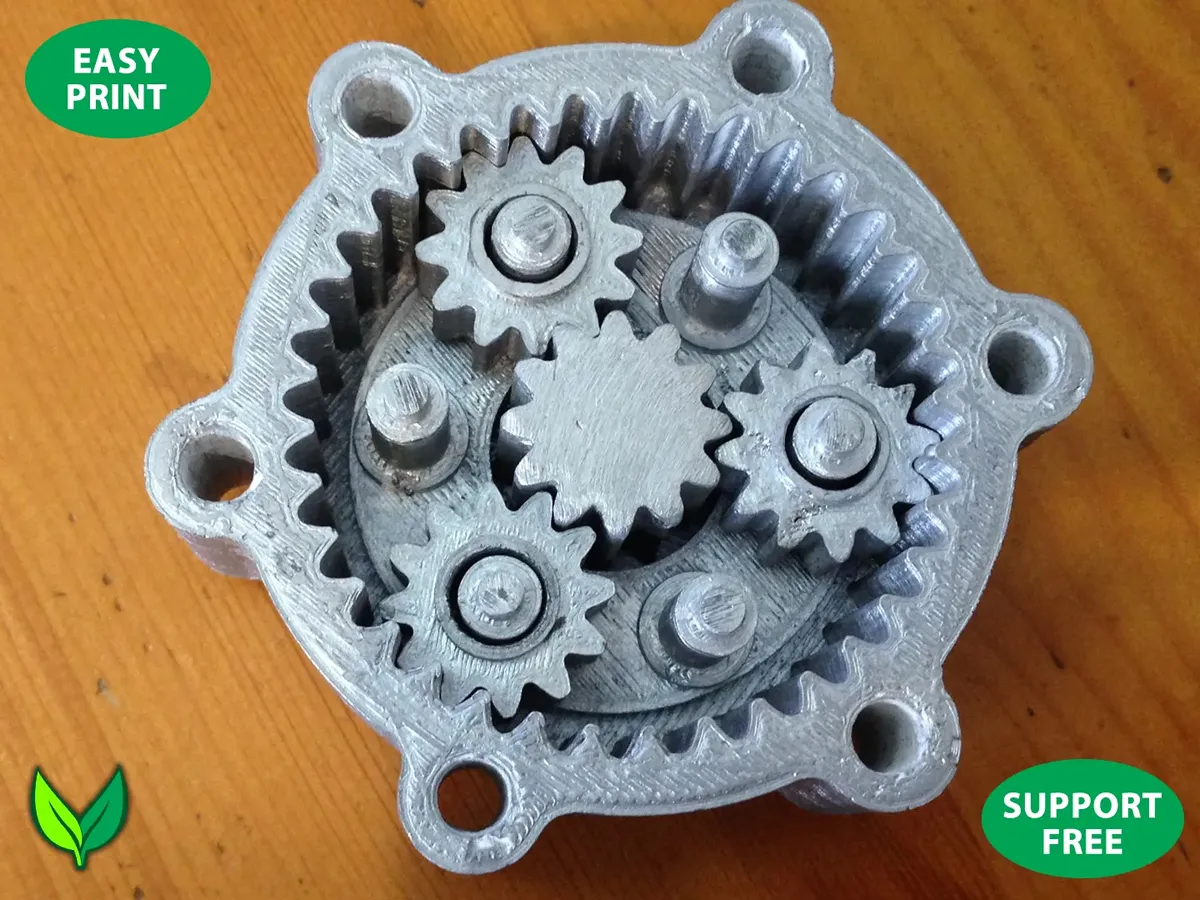

⚙ Prints support-free — recommended in PLA or PLA+ for strength.

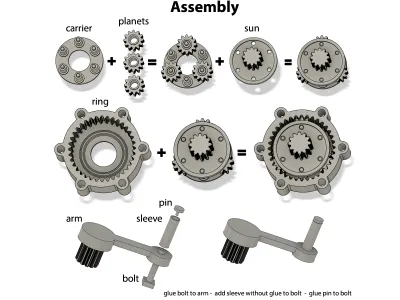

🔧 Parts slot together
📏 Standardized shaft and gear sizes for easy remixing or customization.

📦 Tip: Stack two or three units together for extreme gear reductions!

💥 Follow VogMan for more creative prints, tabletop props, and DIY projects!

🎥 YouTube: @VogMan

FDM
No supports are needed. Just place the file flat of the plate and it will print happily. It printed easily for me with a standard 0.4 nozzle, 0.200 layer height, 3 walls, 15% infill.

WANT TO TIP?
My design for these planetary gears was inspired by a build by PCGEAR https://www.thingiverse.com/thing:3047454 and whilst mine was a completely separate build, I still feel that if you're good enough to want to give a tip, it should go to him. If I hadn't seen and tried his version, I would have never made my own. So my thanks go to PCGEAR for the inspiration.
