Description

Create crisp, two-colour labels for your Multiboard drawers in seconds, right inside the MakerWorld Customizer.

Parametric modeling available here: https://makerworld.com/en/models/1509732-multiboard-label-generator#profileId-1580523

📏 Supported Sizes

Large drawer example: https://thangs.com/designer/Multiboard/3d-model/4x1x1-Deep%20-%20Multibin%20Simple%20Drawer-1128811
Small drawer example: https://thangs.com/designer/Multiboard/3d-model/1x1x1-Deep%20-%20Multibin%20Simple%20Drawer-1128787

🛠️ How the Customizer is organized

1️⃣ Label Settings

1. Size – pick Small (28 mm) for 1×1 drawers, Large (78 mm) for everything else.
2. Font – Roboto, Arial, Liberation Sans, Times New Roman or Courier New.
3. Label Text – the characters you want on the tag (e.g. “M3”, “USB-C”, “BAT”).
4. Text Size Override – leave at 0 for auto-fit (two perimeters). Use a value only if you need the text bigger/smaller.

2️⃣ Icon Settings

1. Icon Type – choose from checkmark, circle, square, ruler, pen, pencil, marker, etc.
2. Arrow Direction – appears only when arrow is selected.
3. Icon Position – left, right or both sides.
4. Icon Size Override – 0 = auto size (two perimeters). Adjust for custom thickness.

3️⃣ Icon Positioning

1. Offset Method – Center-based (move both icons together) or Separate.
2. Left Icon Offset – shift the left icon horizontally.
3. Right Icon Offset – shift the right icon horizontally.

4️⃣ Advanced Settings

Quick-print defaults:

• Base layers: 0.4 mm (two × 0.2 mm)
• Text/Icon layers: 0.4 mm (two × 0.2 mm)

Change these only if you want a thicker tag or deeper emboss.

🎨 Two-Colour Printing Guide (Bambu Studio)

1. Generate and download the STL/3MF from MakerWorld (it’s a single mesh).
2. Load into Bambu Studio and set the model’s primary colour (background).

3. In the layer preview, drag the vertical slider down one layer (there are only 4).

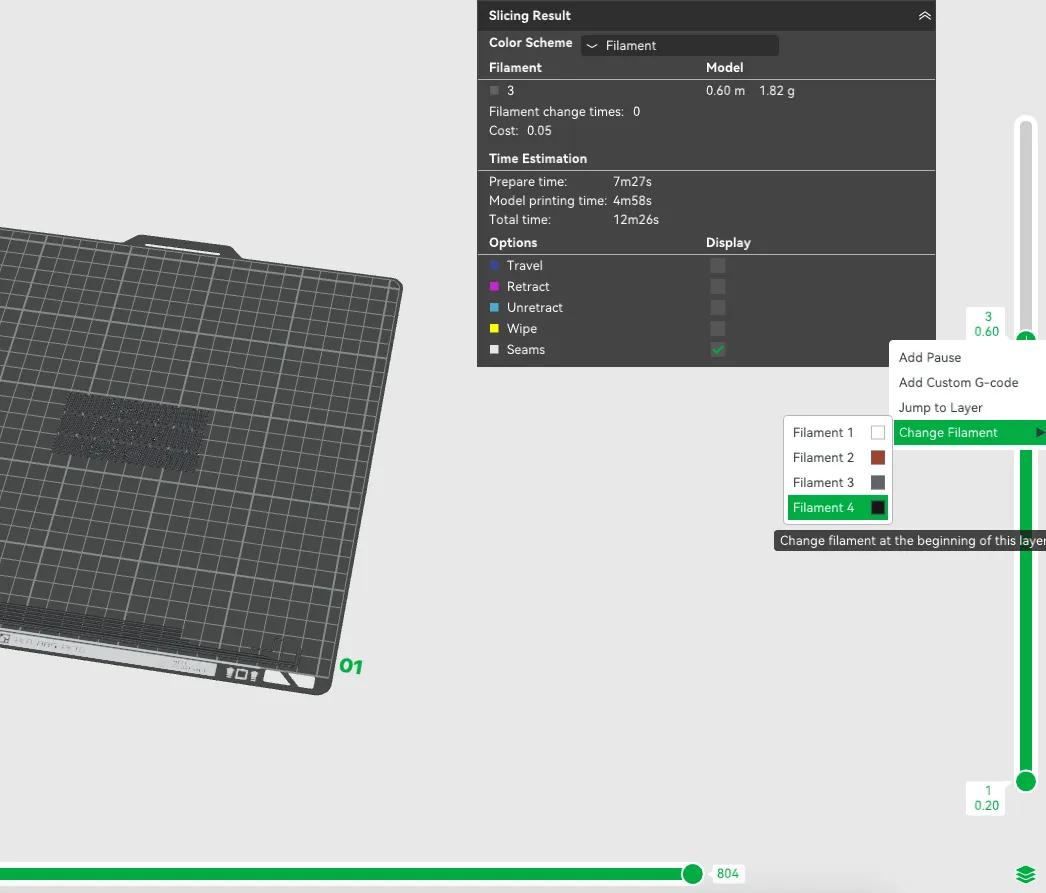

4. Right Click “+” → Change Filament and pick your second filament for the text/icons.

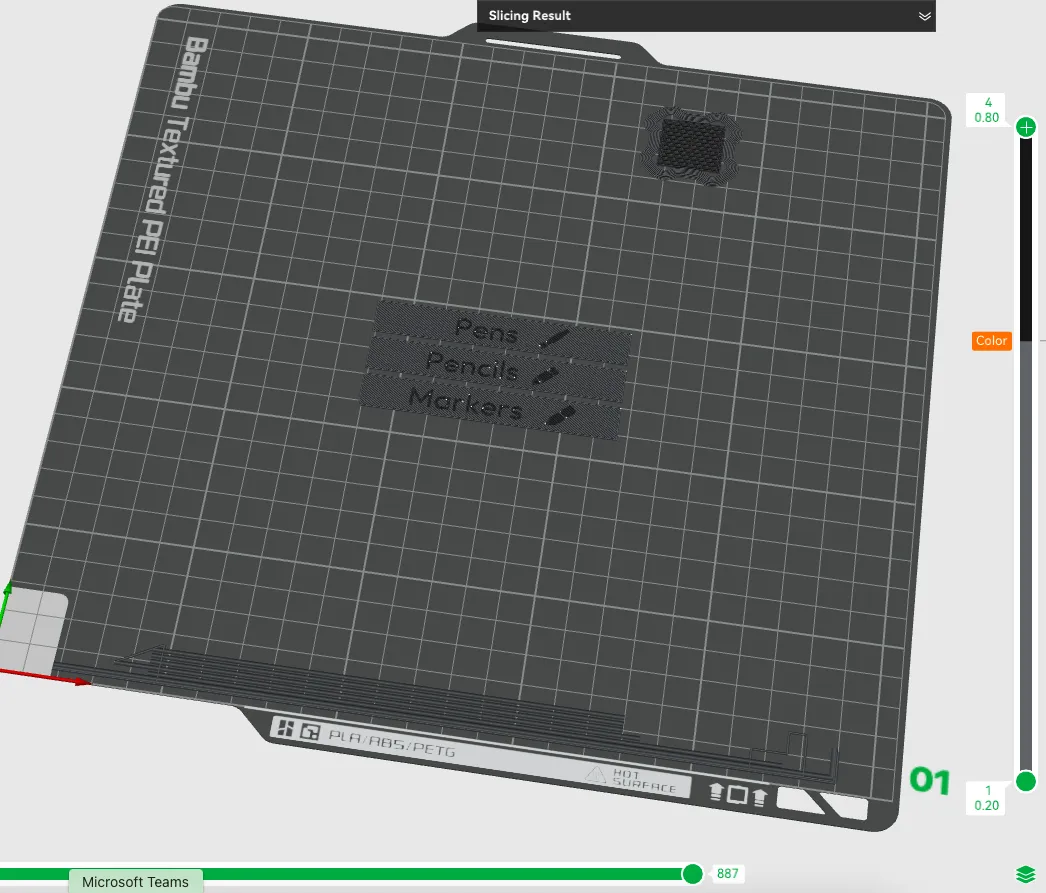

5. Slice (Important Slice again so it would look like the following picture) & print – the printer will pause automatically after layer 3 for the color swap.



(On other slicers, insert a filament-change at Z = 0.4 mm.)

💡 Why this remix?

Inspired by the original full-featured generator by Multiboard
https://thangs.com/designer/Multiboard/3d-model/Multiboard%20Label%20Generator-1135329
I created a lightweight, quick-label version that focuses on the most common needs – two standard sizes, basic icons, and super-fast prints you can churn out in minutes. Kudos to the Multiboard team for the idea!

Hardware & consumables I use

(Affiliate links—using them won’t change your price but helps me keep designing, thank you!)

• Polymaker PLA PRO → Link
• Elegoo PLA → Link
• ANYCUBIC PLA Plus → Link

📝 Print Settings (recommended)

• Layer height: 0.20 mm
• Nozzle: 0.4 mm
• Infill: 15 % (Grid or Gyroid) – or 0 % since it’s only 0.4 mm thick
• Material: PLA
• Supports: none
• Build plate adhesion: skirt or none

🔄 Change Log

• v1.0 – initial release (Small & Large, basic icons, two-colour ready)
  Im working on a .4mm height embedded text label generator next. If this post gets enough support, I will release that other version once its finished. Please support me by rating and liking if you enjoyed this model and found it usefull.

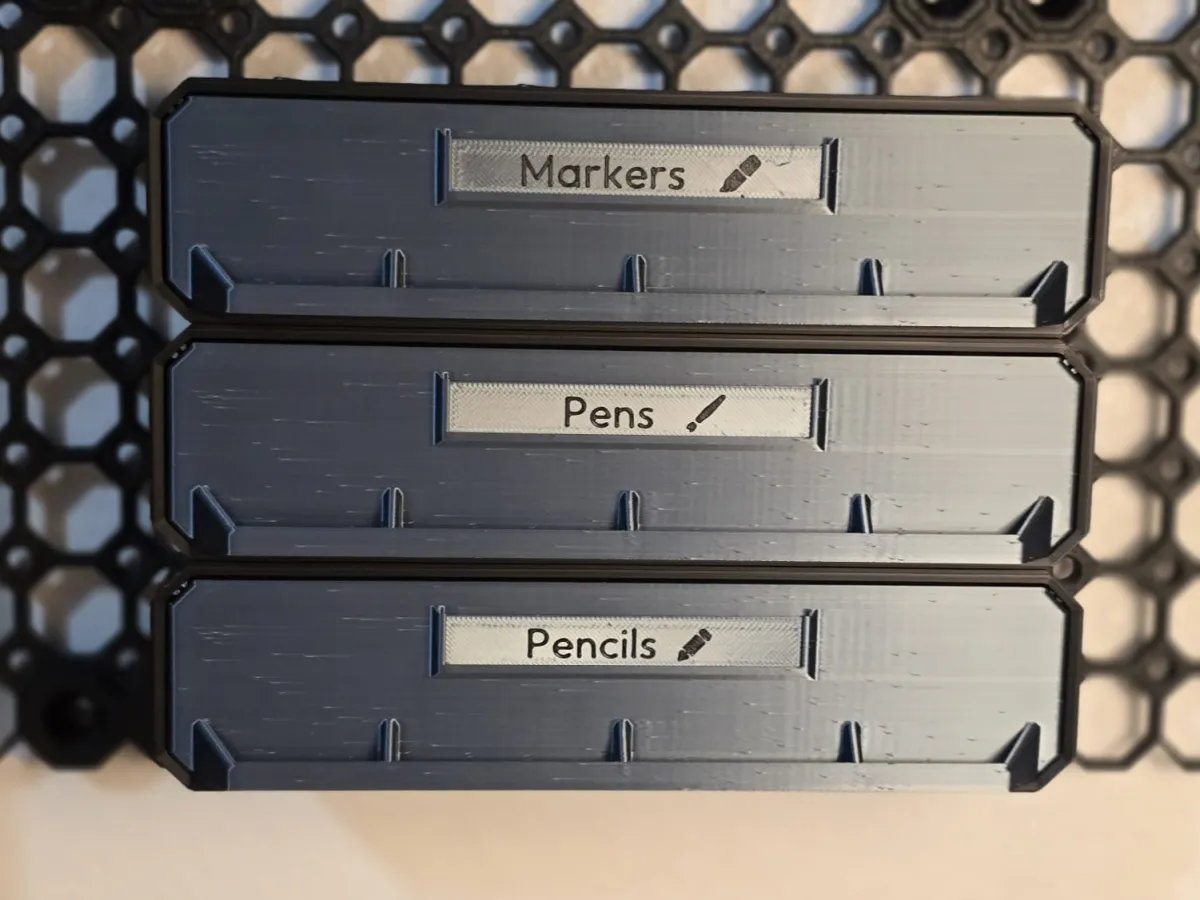

Have fun labelling your drawers – and share your makes!
