Wankel Rotary Engine
Print Profile(0)

  • Earn points by adding print configurations

2

3

91

5

Released 2025-07-11
Details
Files(9)
Makes & Comments (0)

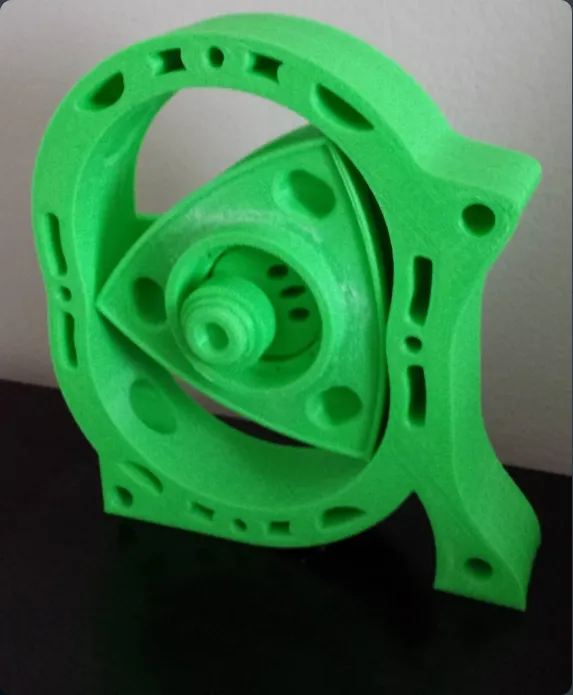

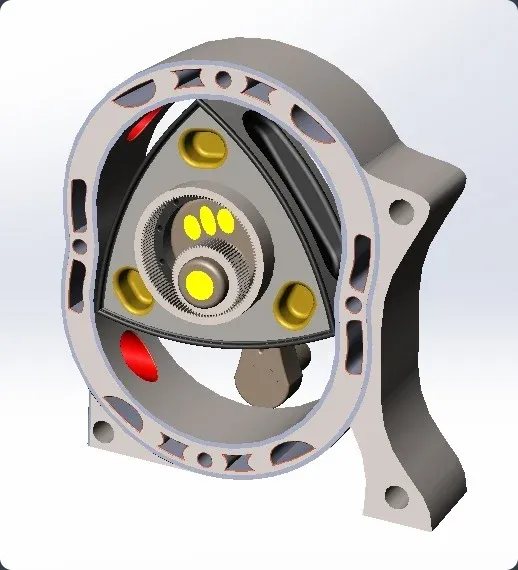

Single rotor Wankel rotor engine for display. This is derived from the Grabcad model by Ravi Yadav (http://grabcad.com/library/wankel-engine-2) and converted into a 3d printable option. It will require some gluing and a piece of plexi-glass for the back. You can printout a back plate but i didn't like having the back covered. Enjoy
UPDATE
added a back plate just in case.

Originality of the Model

The author declares that this work is their personally shared model

Original creator:
ECU_Engineer
Reprint source:https://www.thingiverse.com/thing:536050

This model is licensed under the following terms:

Credit must be given to the creator

Remixes must be shared under the same license
