GT2 Timing Belt Pulley Set - Toothed & Smooth
Print Profile(1)
  • 0.16mm layer, 2 walls, 15% infill

    1-disc

    PLA

    Designer

1

1

16

6

Released 2026-02-11
Details
Files(3)
Makes & Comments (0)

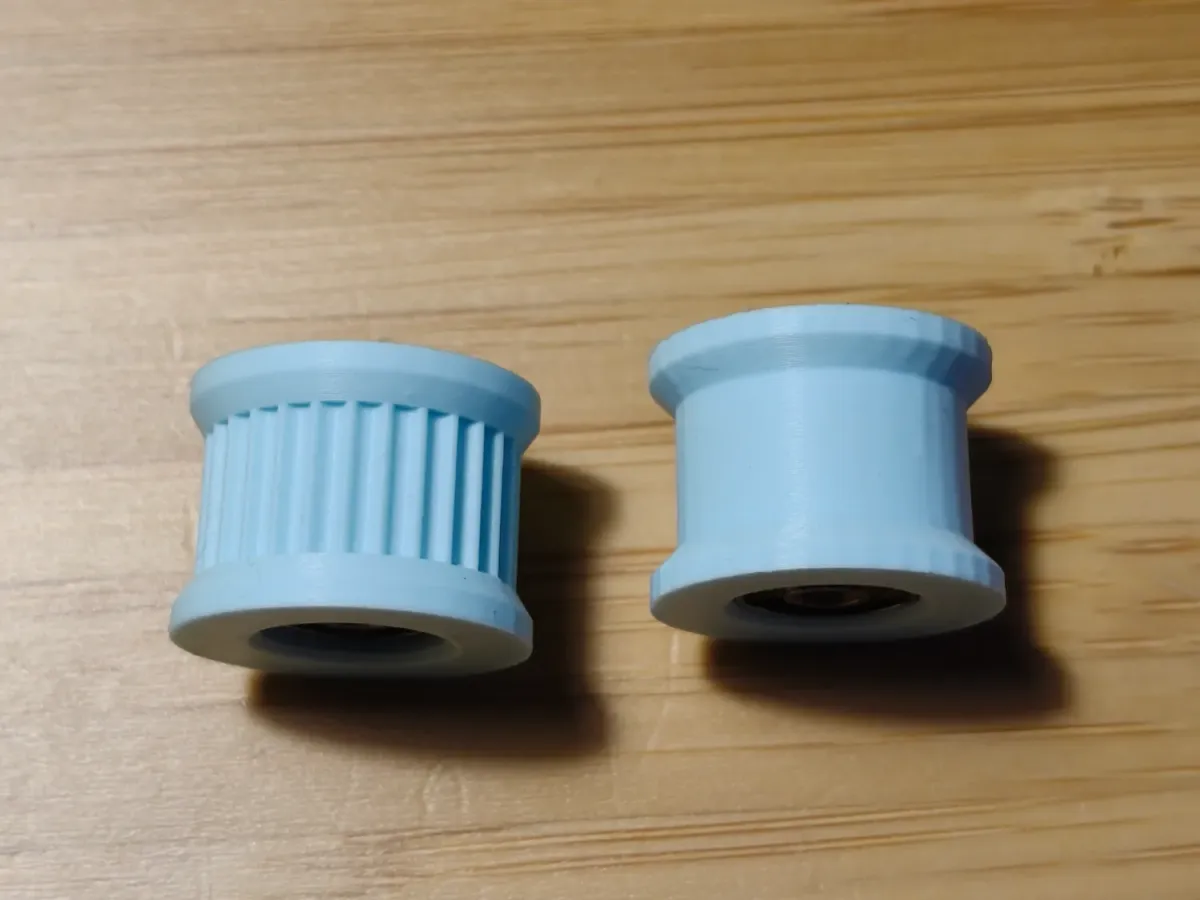

Build the perfect motion system with this versatile GT2 pulley set! This upload includes two essential variations: a toothed gear for precise power transmission and a smooth version to serve as a high-quality idler.

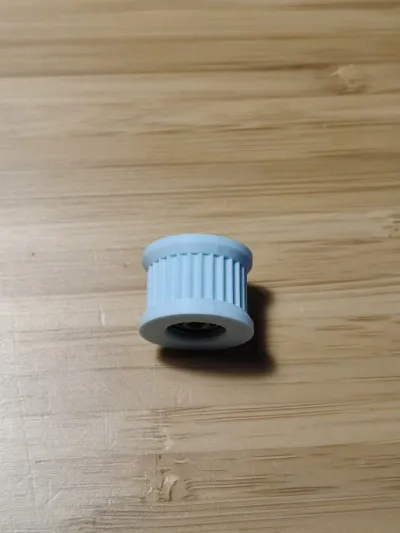

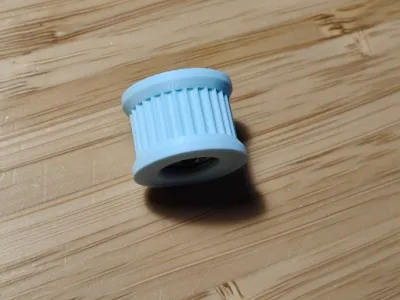

  • Toothed Version: Features an accurate GT2 profile for perfect engagement with standard timing belts, ideal for motor-driven axes.
  • Smooth Version (Idler): Designed without teeth to act as a low-friction guide on the back side of the belt, ensuring smooth and quiet operation.

Bill of materials

  • Name
    Quantity
    Notes
  • 1

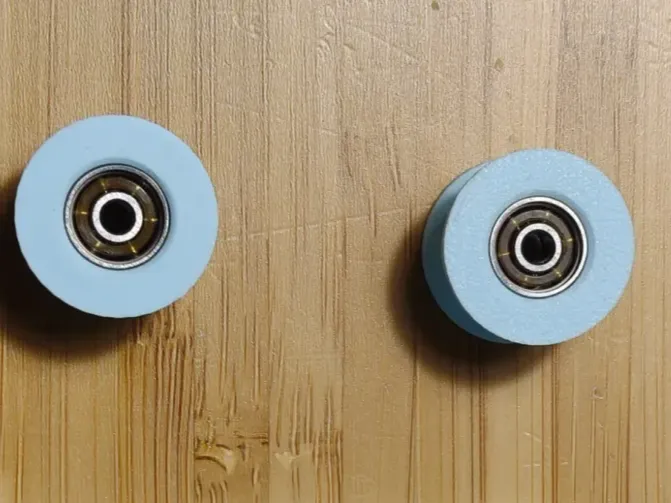

    Ball bearings
    4
    3x10x4

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(3)

  • model file image
    GT2 timing belt Pulley gear with-without teeths.3mfDesigner

    104.91 KB

    2026-02-10

  • model file image
    timing belt Pulley gear without teeth.stlDesigner

    49.50 KB

    2026-02-10

  • model file image
    timing belt Pulley gear with teeth.stlDesigner

    289.14 KB

    2026-02-10
