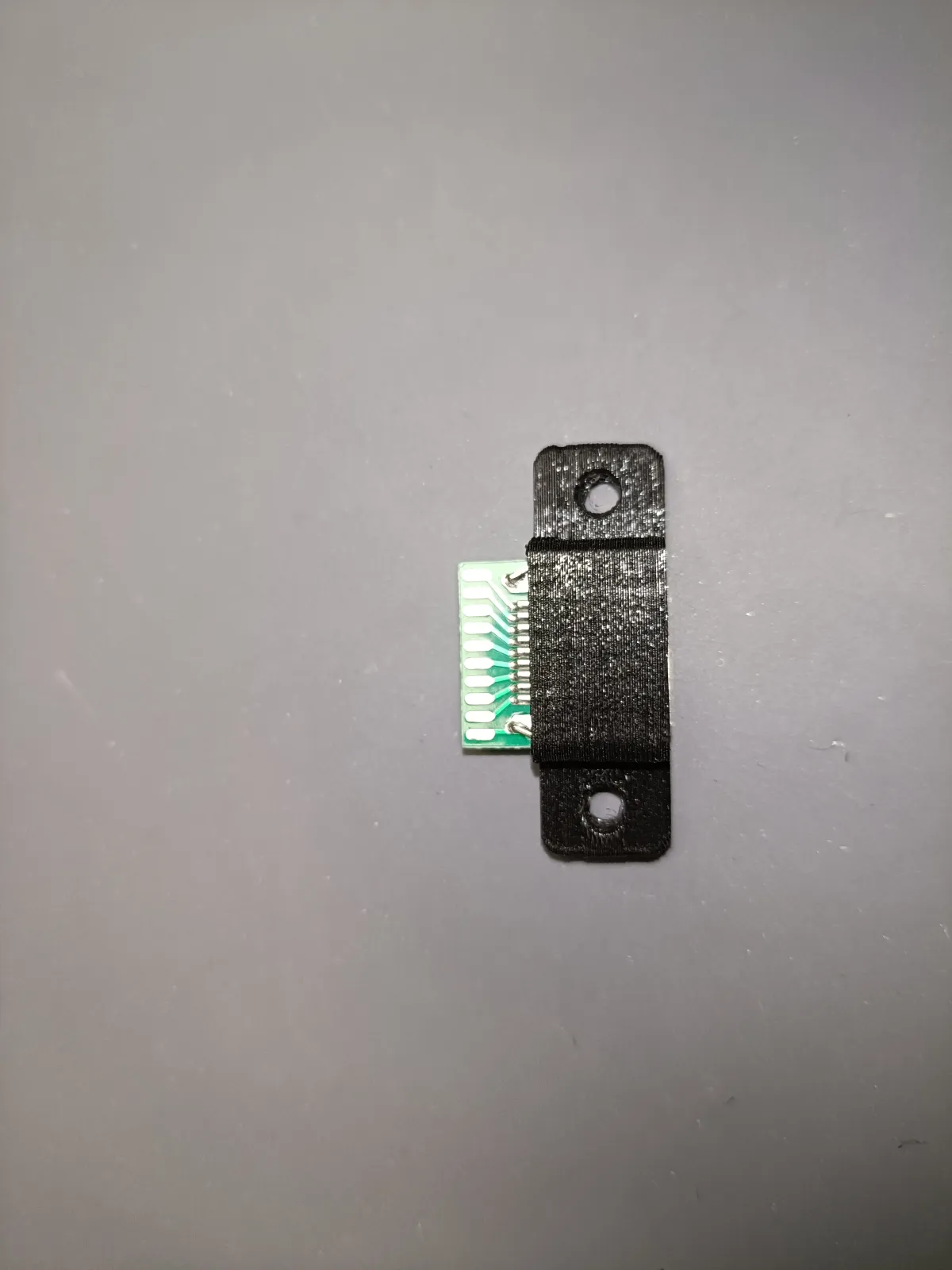

This allows you to mount an HDMI breakout board to a flat surface with two screws.

There are two versions, one has the mounting holes vertically and the other horizontally, each version consists of two parts.

The holes are for M3 screws.



Compatible breakout boards (remove the plastic part that comes with them, this is an affiliate link so I get a small commission if you purchase through here): https://s.click.aliexpress.com/e/_c3ifgmzh

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    HDMI breakout board
    1
    https://s.click.aliexpress.com/e/_c3ifgmzh
  • 2
    M3 screw
    2
  • 3
    M3 nut
    2

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted
