1. Inspiration and Design Concept

The design inspiration for this Red Silk Patrick Star Ice Cream model stems from the endearing, lovable character of Patrick Star from the classic animated series “SpongeBob SquarePants,” combined with a keen capture of the joyful summer atmosphere. The iconic moment—Patrick Star holding an ice cream cone in one hand while bursting into a hearty laugh—is brought to life through 3D printing technology, with its smooth, rounded lines and vivid expressions instantly evoking cherished childhood memories.

By choosing red silk PLA filament, not only does the model exhibit a silky, satin-like sheen under light, but it also imbues this beloved cartoon character with a unique texture and festive charm. The design’s core intent is to create a single-piece, easy-to-print, delightfully playful desktop ornament—perfect for 3D printing enthusiasts, especially animation fans, who can effortlessly own a personalized collectible that stands out with its distinctive flair.

2. Overview of the Model

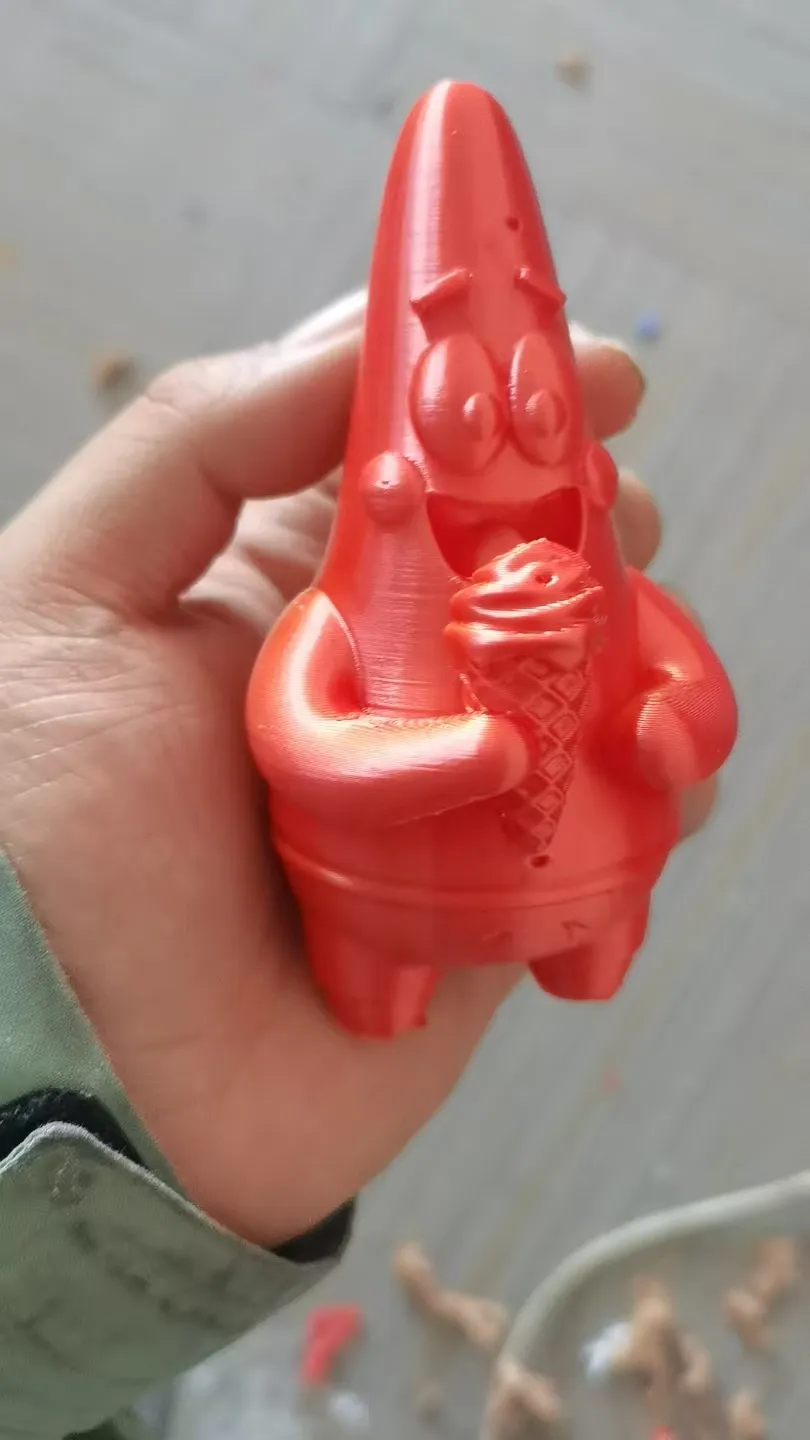

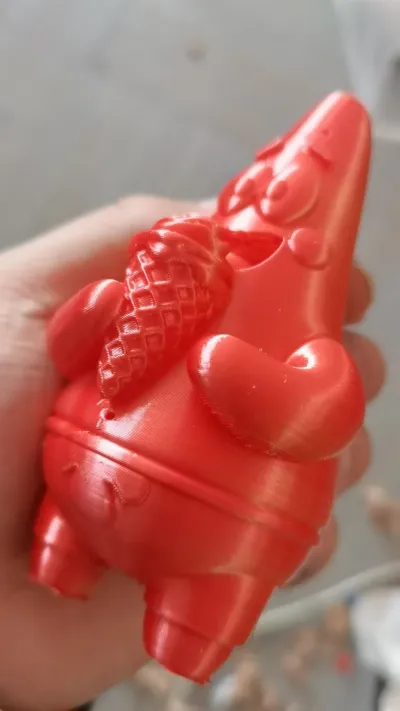

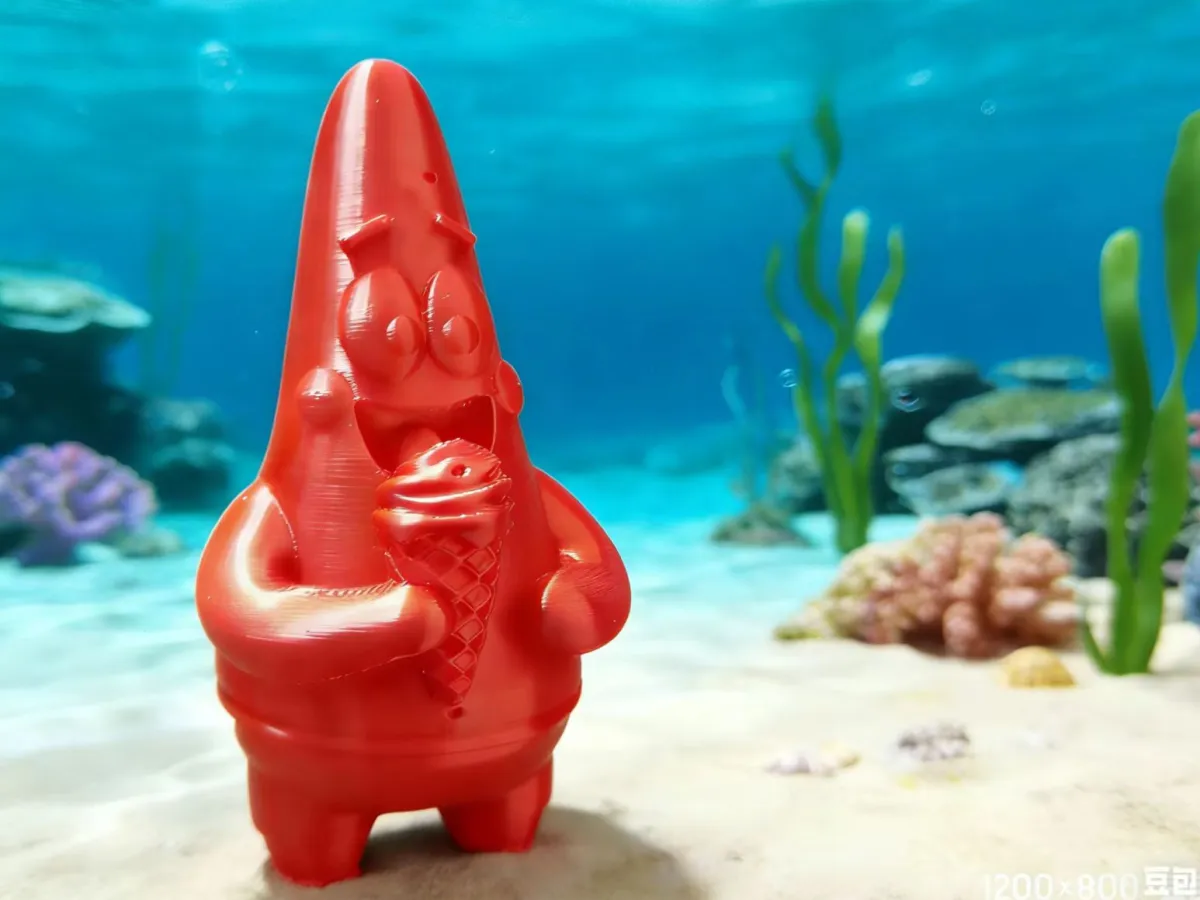

The Red Silk Patrick Star Ice Cream is a fully integrated, three-dimensional sculpture characterized by its round, full form and lack of sharp edges—a visually soft and soothing aesthetic. The intricate texture of the ice cream cone on Patrick’s head, the rosy flush on his cheeks, and the natural transition between his arms and body all add lively detail to the otherwise simple silhouette; his relaxed pose suggests he might gently sway at any moment.

The material has been specially optimized for red silk PLA, maximizing the filament’s luster and color vibrancy to deliver a festive yet sophisticated finish. From a structural standpoint, the design takes FDM printing characteristics into account: only a few overhanging areas—such as the ice cream cone on top of Patrick’s head and the underside of his arms—require support, while the base features a flat, stable surface. This ensures high print stability and keeps equipment requirements moderate, making it feasible for most home-level desktop 3D printers to produce the model without issue.

3. Printing Requirements (Key Parameters)

1. Filament Requirements

- Recommended Filament: Red silk PLA (1.75 mm), the material best suited to showcase the model’s full potential. The silk-like sheen and rich color saturation of the filament bring Patrick’s form to life with enhanced depth and artistic appeal.
- Pre‑Processing: Before printing, we recommend drying the filament at 50–60°C for 4–6 hours to prevent moisture absorption, which can lead to bubbling or rough layer lines—and ultimately compromise the final glossy finish.

2. Equipment and Core Parameters

- Compatible Devices: Most FDM desktop 3D printers will work well; simply ensure the heated bed size matches the model’s base dimensions.
- Nozzle Diameter: 0.4 mm (standard configuration, delivering optimal results).
- Layer Thickness: 0.15–0.2 mm—prioritize 0.15 mm for fine details, while opting for 0.2 mm when speed is a priority.
- Wall Layers: 2–3 layers are sufficient to maintain structural integrity.
- Infill Density: 10%–20%. As a decorative piece, there’s no need for excessive infill; a triangular infill pattern is recommended.
- Top/Bottom Layers: 3–4 layers to ensure a smooth, even surface.
- Temperature Settings: Set the nozzle to 205–215°C and the heated bed to around 60°C (for PEI sheets, you can lower the bed temperature to 55°C).
- Cooling Fan: Turn off the cooling fan during the first layer, then activate it at 50%–70% speed starting from the second layer to ensure strong interlayer adhesion and proper shaping.
- Print Speed: For outer walls, aim for 30–50 mm/s; you can increase the speed slightly for inner walls and infill to achieve a smoother surface.

3. Special Settings (Key Considerations)

- Do You Need Glue?
Glue is not required during the printing process. This model is designed as a single-piece construction; once printed, it’s a complete, finished product ready to use—no assembly needed. If you wish to secure the finished piece to a display stand, you may use a small amount of double-sided tape for added support.
- Do You Need Support?
Support is necessary. Certain areas of the model—including the ice cream cone, the underside of Patrick’s arms, and specific details on his head—feature prominent overhangs that require support to preserve fine details. We recommend using tree‑like supports, keeping the density at 10%–15% with contact points measuring 0.2 mm in diameter. This approach effectively supports the overhanging sections while allowing for easy removal after printing, minimizing damage to the model’s surface.
- Do You Need a Skirt?
We suggest adding a skirt. The model’s base is flat, so incorporating a narrow skirt (5 mm wide, 1 layer) can significantly enhance initial adhesion during printing, preventing warping and shifting. To further improve stability, we recommend lightly spraying a small amount of 3D‑printing‑specific adhesive onto the print bed—leveraging the bed’s inherent tackiness to ensure solid, reliable prints. Additionally, consider thickening the base plate to boost structural stability during early printing stages.

4. Printing Notes

1. Always verify that your model file is complete and free of defects or errors before printing—this helps avoid slicing failures.
2. The quality of the first layer directly impacts overall success; slow down the print speed to ensure the base adheres firmly.
3. Silk filaments are sensitive to temperature: temperatures that are too high can cause oozing or stringing, while temperatures that are too low may result in insufficient interlayer adhesion. Be sure to fine‑tune settings according to the recommended parameters.
4. When printing overhanging areas like the ice cream cone on Patrick’s head, you can reduce the print speed slightly to better preserve fine details.
5. After printing, do not remove the model immediately—allow the platform to cool completely to room temperature before demolding. This helps minimize warping, edge curling, and damage to the skirt during removal.

5. Post‑Processing and Assembly Instructions

This model is designed as a single piece; no assembly is required after printing—only basic post‑processing is needed:

1. Once the model has cooled completely, carefully remove the small amount of support around the head using needle‑nose pliers or a craft knife. If any residue remains, gently sand it down with an 800‑grit polishing stick—apply light pressure to avoid damaging the silk’s delicate luster.
2. Clean up any excess material along the base skirt; if there’s residual buildup, use a craft knife to carefully scrape it away—no extensive sanding is necessary.
3. Use a soft brush to sweep away surface dust; for any oil stains, lightly wipe them clean with a lint‑free cloth dampened with a small amount of anhydrous ethanol, then dry the surface with a clean, dry cloth.

Once post‑processing is complete, the model is ready to be used directly as a desktop decoration—or you can affix it to a display stand using seamless adhesive or nail‑free mounting solutions, perfect for collection and exhibition purposes.

6. Application Scenarios and Key Features

1. Applicable Scenarios

- Desktop Decor: Place it on your desk, bedside table, or entryway cabinet to add a warm, comforting touch to your space.
- Fan Collection: A must‑have for SpongeBob SquarePants fans, capturing classic moments in a tangible, 3D‑printed form.
- Creative Gift: Perfect as a birthday or holiday gift, spreading joy and nostalgia to those who receive it.
- Model Showcase: Ideal for 3D printing enthusiasts to share their creations and exchange technical insights, showcasing the exceptional printing performance of silk‑based filaments.

2. Key Features of the Model

1. A Soothing Aesthetic: With its smooth, rounded lines and endearing, approachable expression, the model exudes warmth and healing.
2. A Silky Texture: Crafted from red silk PLA, the model boasts a细腻, satin‑like sheen that delivers a premium, artisan‑quality finish.
3. One‑Piece Construction: Zero assembly required—print it, and you’re done; use it right away.
4. Printer‑Friendly: Minimal support needs, optional skirt, low equipment requirements—easy to get started, even for beginners.
5. Versatile for Any Setting: Seamlessly adapts to modern minimalist interiors, cozy home environments, and festive party scenes alike—balancing aesthetic appeal with practical usability.
