✨ Source of Inspiration

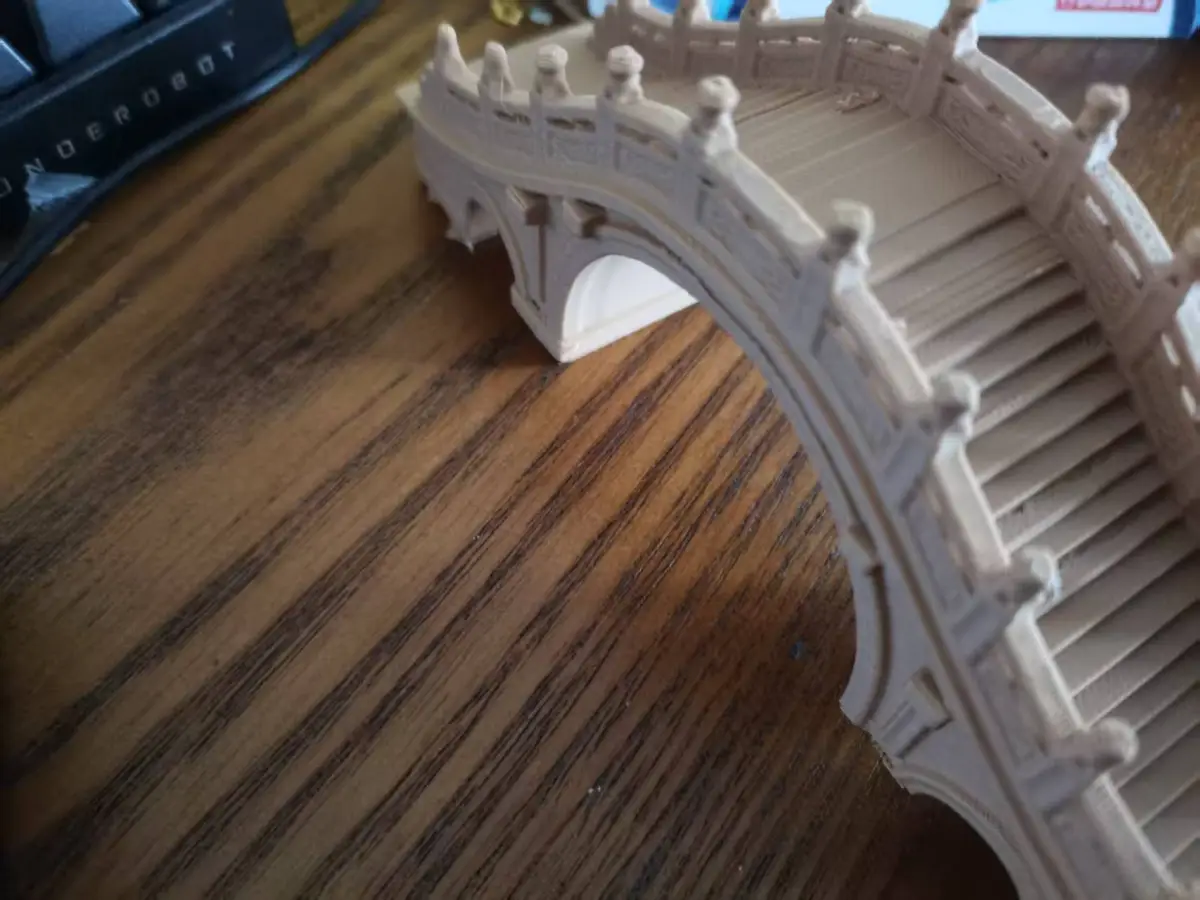

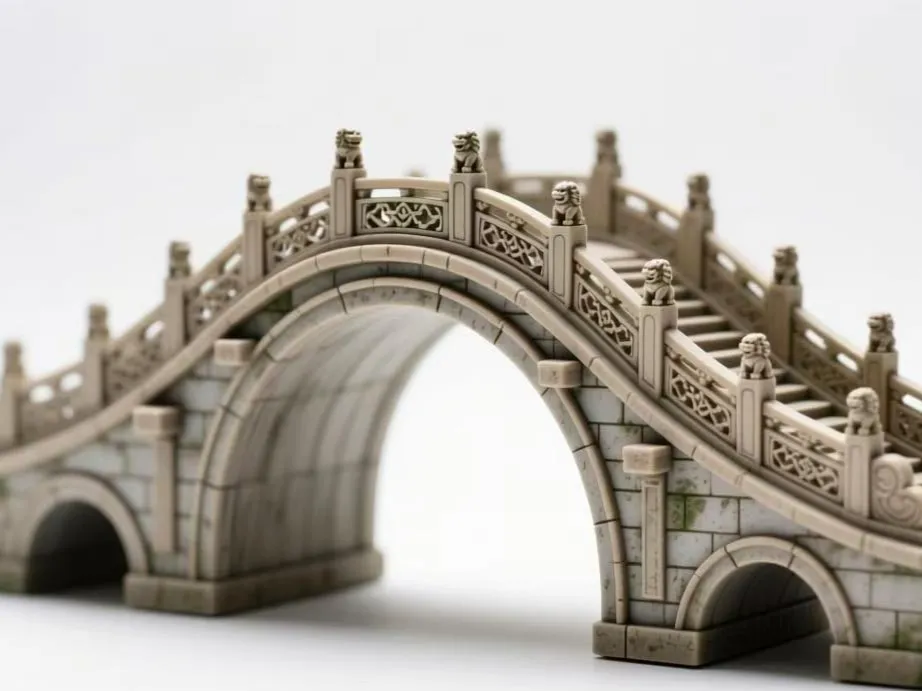

This stone arch bridge model draws its design inspiration from the iconic architectural styles of China’s Zhaozhou Bridge and the Seventeen-Arch Bridge at the Summer Palace. The design captures the distinctive arched structure, balustrade railings with ornate piers, and intricate relief patterns of traditional stone arch bridges—faithfully recreating the aesthetic essence of ancient Chinese bridges in a miniature scale.

The model not only preserves the graceful, “long rainbow lying across the waves” curvature but also showcases the ingenious craftsmanship of ancient builders through its meticulously detailed balustrade textures and pier designs, making it a culturally rich decorative piece that seamlessly blends artistic value with functional appeal.



🛠️ Detailed Printing Settings

Parameter | Recommended Value | Detailed Explanation
Material | PLA – Wood‑Effect Filament | Environmentally friendly, odorless, with a fine surface texture that effectively mimics the tactile qualities of wood or stone, compatible with most desktop 3D printers
Layer Height | 0.16 mm | Provides crisp, clear rendering of balustrade reliefs and pier details while balancing precision with printing efficiency; for ultra‑fine detail, layer height can be reduced to 0.12 mm
Print Speed | Outer Walls: 35–40 mm/s | Filling: 60 mm/s | Supports: 30 mm/s | Slow down printing speeds in delicate areas such as bridge arches and balustrades to minimize jitter-induced cracking and ensure sharp, well‑defined textures
Wall Thickness | 1.8 mm | Ensures sufficient structural integrity for the arched form, preventing deformation under self‑weight; for larger models, wall thickness can be increased to 2.0 mm
Fill Density | 20% | Uses a lattice fill pattern to enhance the arch’s flexural strength while avoiding excessive material waste
Nozzle Temperature | 200–205℃ | For wood‑effect PLA, we recommend setting the nozzle temperature to 202℃ to prevent discoloration or carbonization caused by high temperatures
Bed Temperature | 55℃ | Ideal when paired with PEI or glass print beds, this temperature helps prevent warping at the base and improves adhesion for optimal model fidelity
Fan Speed | 100% starting from Layer 4 | Maintain 50% fan speed for the first three layers to slow cooling and reduce the risk of edge warping; subsequent layers should be cooled at full speed to ensure dimensional accuracy
Skirt | Width: 12 mm, 3 layers | Increases the contact area at the base, helping to stabilize long, slender bridge structures and prevent tipping due to an uneven center of gravity
Supports | Localized Tree‑Like Supports | Focus on supporting the underside of the bridge arch and any overhanging sections of the balustrade, with a support density of 12%. Ensure contact points are ≤1 mm in diameter and positioned on non‑visible surfaces



⚙️ Key Considerations

- Support Removal: For supports beneath the bridge arch, use needle‑nose pliers to carefully snip them off at the base—never pull them straight out, as this could damage the arch’s delicate geometry. Balustrade supports should be gently peeled away with tweezers to avoid cracking or breaking the intricate relief patterns.
- Print Monitoring: During the first 20 layers, pay close attention to bottom adhesion; if warping occurs, pause the print and apply a thin layer of solid glue along the edges. When printing the junctions between the bridge arch and balustrades, we recommend monitoring the process in real time to prevent filament breakage.
- Post‑Processing: Lightly sand any remaining support structures using 400–800 grit sandpaper, then apply a matte wood wax oil to enhance the wood‑like finish and bring out the subtle layers of the balustrade reliefs.
