Miffy – 21 cm, single color print

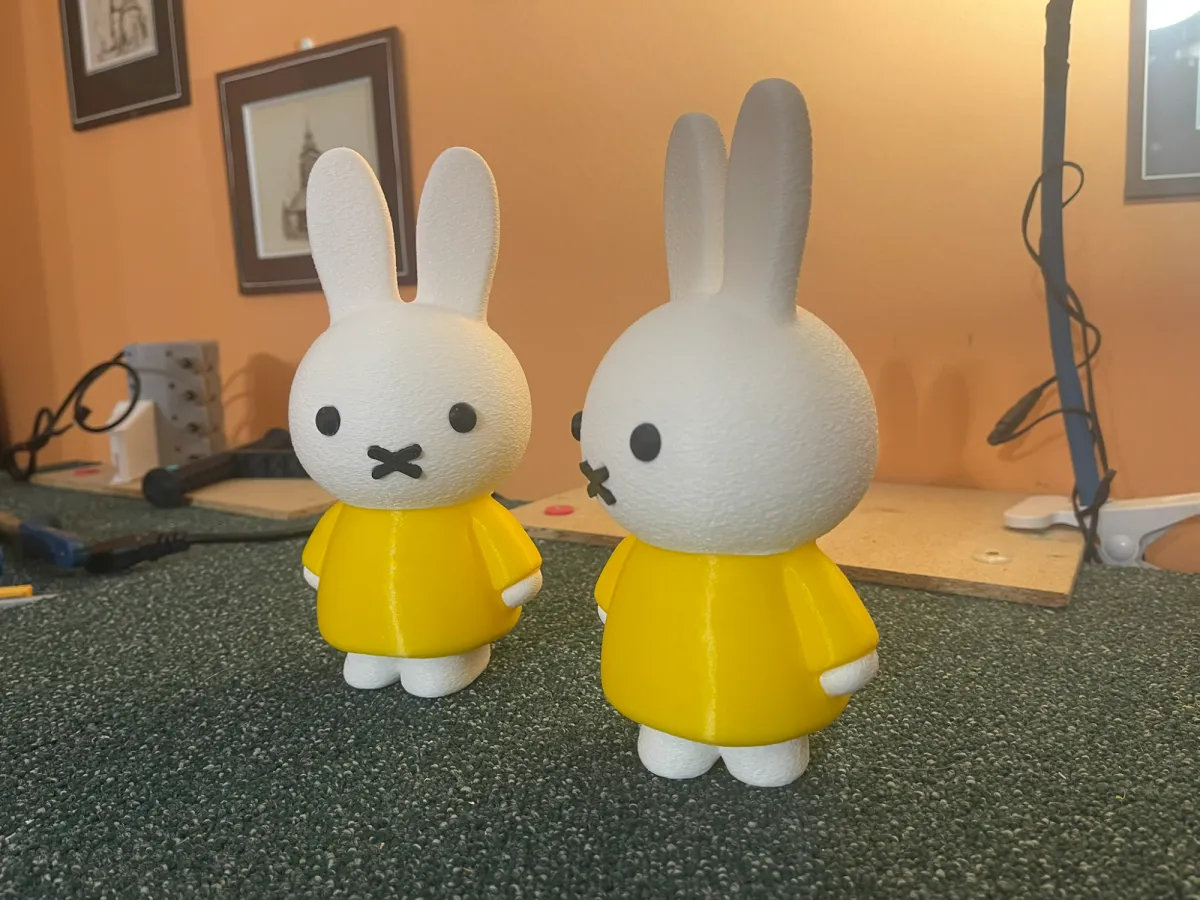

The iconic character Miffy by Dick Bruna comes to life as a charming 3D‑printed figure! Standing 21 cm tall, this model is designed for easy printing on standard FDM printers without the need for multi‑material setups or painting. All parts are separated by color and optimized for clean assembly with functional rotating joints.

Features

⚪ Color‑separated parts – no painting or MMU required
🌟 Classic Miffy look – white head, black eyes and “X” mouth, yellow dress

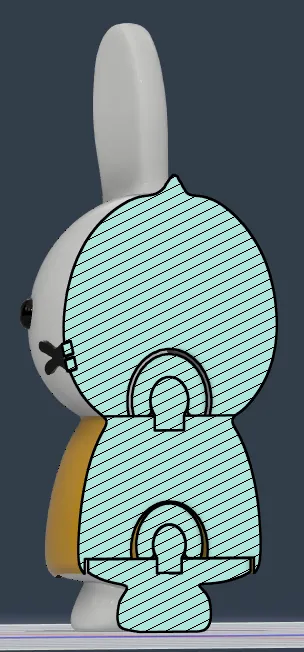

🔄 Rotating head – attaches via a friction‑fit pin, no glue
🔄 Rotating legs – lower body attaches via a pin, no glue
🧩 Modular design – easy to print, easy to assemble
📏 Height: 21 cm at 100% scale

Print Settings

Layer height: 0.20 mm
Infill: 7% gyroid
Walls: 2
Supports: required
Fuzzy skin: optional (recommended for a soft, plush‑like texture)

Assembly Instructions

Use standard cyanoacrylate (super glue) only where indicated.
Do not glue the head or the leg joint — both must remain rotatable.

1) Pins – Preparation

The model includes two pins:

Small pin → inserts into the lower body (legs) - secure with glue
Large pin → inserts into the upper body (torso) - secure with glue

Assembly steps:

Insert the small pin into the hole in the lower body (legs).
Insert the large pin into the hole in the upper body (torso).
Secure both pins with glue so they are firmly fixed in place.
Allow the glue to fully cure before continuing.

2) Connecting the Body and Legs

Once the glue has dried, slide the upper body onto the small pin fixed in the lower body.
Do not glue — the legs must remain rotatable.

3) Connecting the Head

Place the head onto the large pin fixed in the upper body.
Do not glue — the head stays freely rotatable.

4) Eyes and Mouth

Insert the eyes and mouth dry‑fit first to check alignment.
Remove them, apply a small amount of glue, and fix them in place.

5) Arms

Finally, glue the arms onto the ends of the sleeves.

Available Files

3MF files – pre‑arranged plates for Bambu Studio, OrcaSlicer, Anycubic NEXT, and Elegoo Slicer
STL files – individual parts for all other printers and slicers
