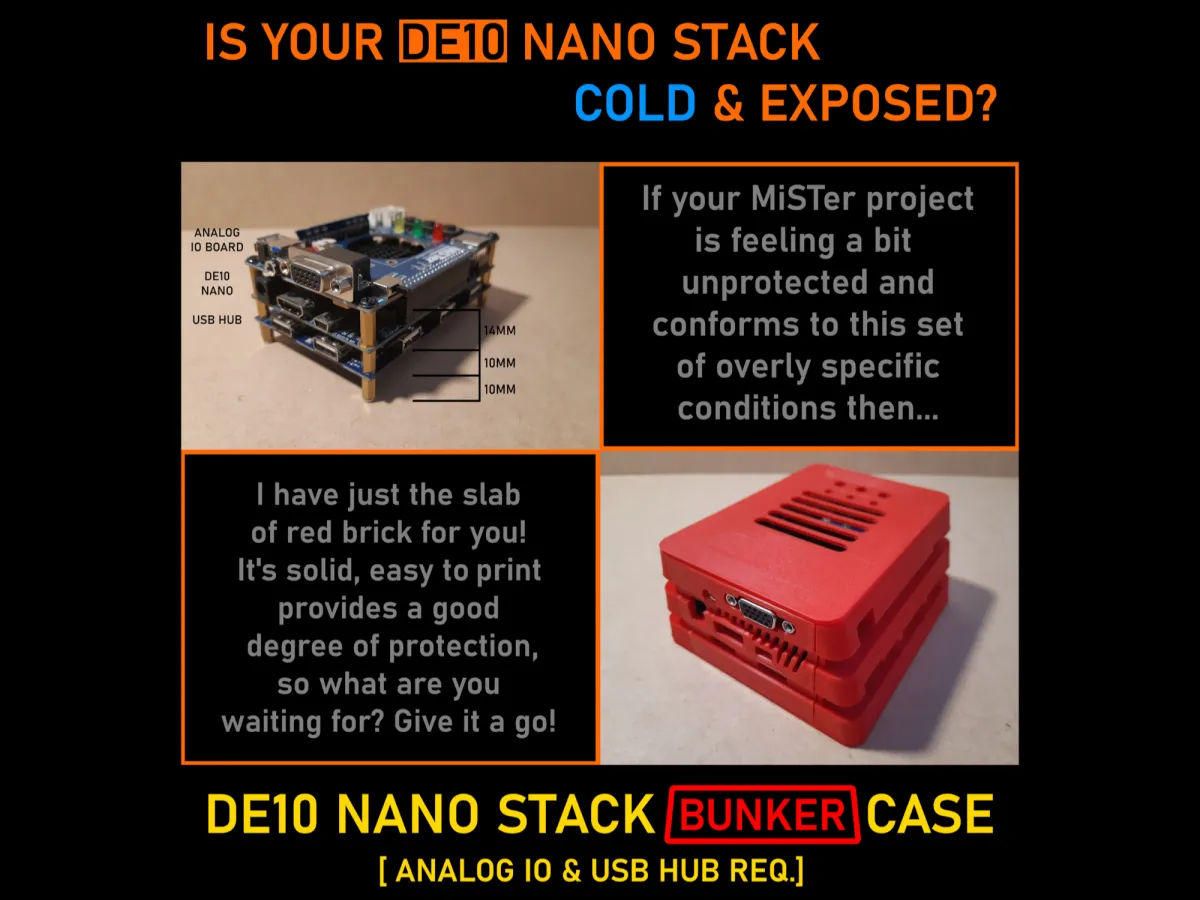

Here is version 2 of the DE10 Nano Stack case. The Bunker!



With thicker walls comes more filament usage but it can sustain a heavier assault
from the dog snagging a cable and dragging it off the desk, down the hall and halfway down the stairs.

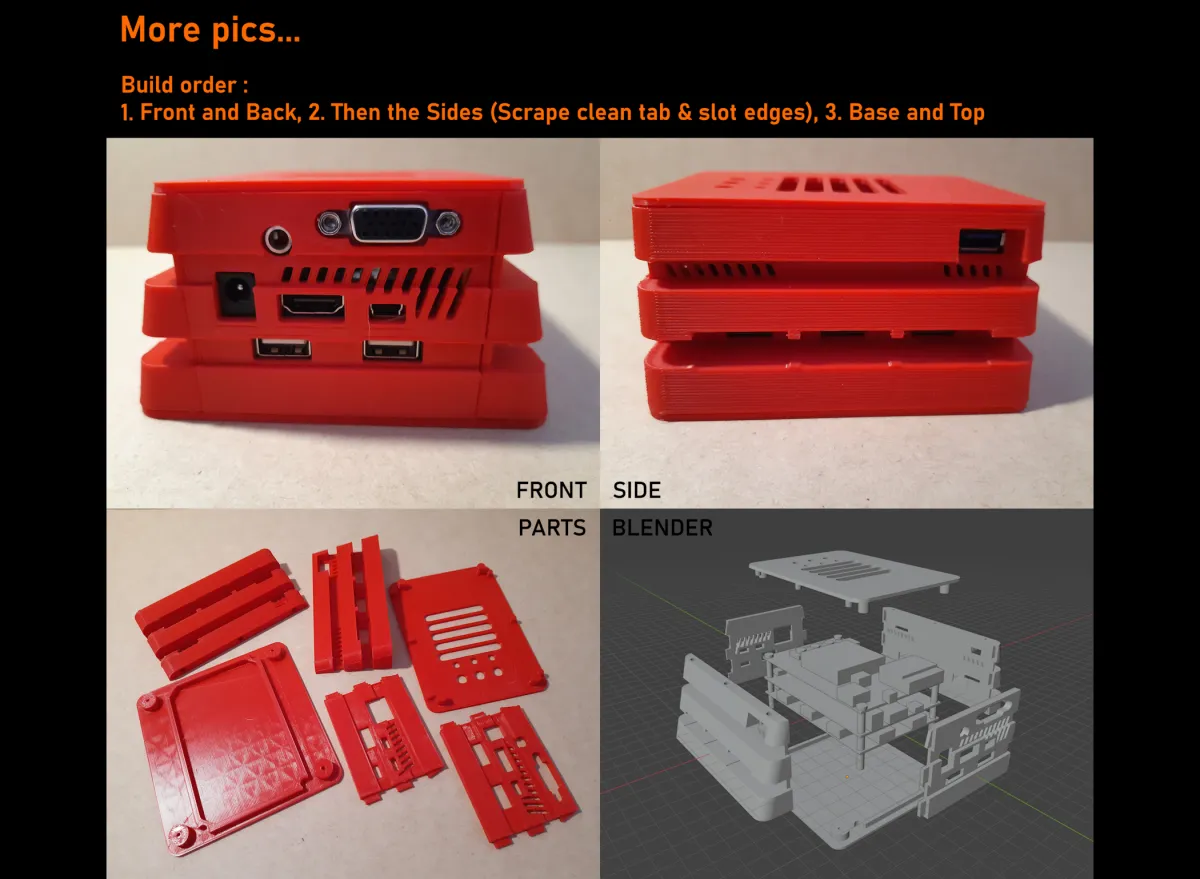

It is a pretty tight fit, so I would advise running a blade around the tabs and slots so they fit together easier and so join closer together. It is also a fit and forget affair so if you do need to take it apart be careful not to pull your tabs off.



As is the way with this kind of niche hobbiest endeavour, give me a shout if you have a connector or switch that's located differently and I will adjust a part for you.



May your Bunker never be busted!



                PATREON & PATREON SHOP.                https://www.patreon.com/3DFreeman



Thanks for your continued support!

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Models(6)

  • D10C_BACK.stlDesigner

    45.20 KB

    2026-01-28

  • D10C_BASE.stlDesigner

    799.11 KB

    2026-01-28

  • D10C_FRONT.stlDesigner

    77.52 KB

    2026-01-28

  • D10C_SIDE1.stlDesigner

    243.73 KB

    2026-01-28

  • D10C_SIDE2.stlDesigner

    242.76 KB

    2026-01-28

  • D10C_TOP.stlDesigner

    292.17 KB

    2026-01-28
