The Ultimate Backyard Fluid Dynamics Upgrade

Welcome to the end of stagnant water, algae blooms, and pond muck.

The Inspiration: Most commercial pond aerators are incredibly expensive, and standard 3D-printed aerators often fail under the hydraulic pressure of high-flow pumps. I designed this natively in Fusion 360 to bring industrial-grade fluid dynamics and structural reliability to the backyard pond or homestead.

By forcing water through a mathematically optimized throat, this Venturi pulls a massive vacuum, sucking fresh air from the surface and blasting it into the deepest, most oxygen-starved layers of your pond.

The Engineering Features:

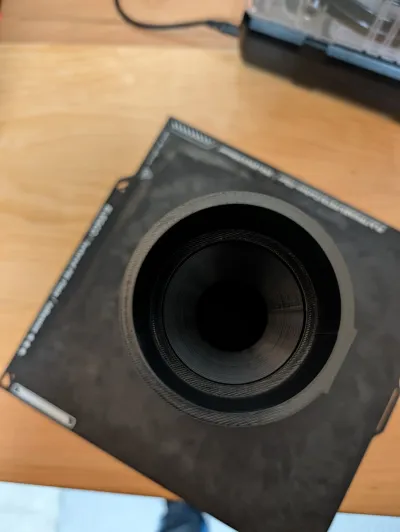

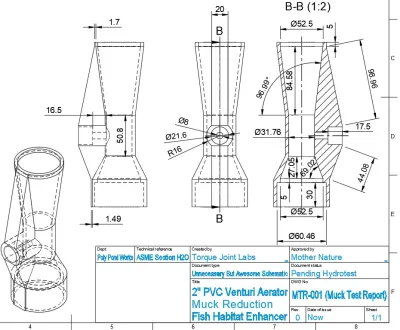

• 7-Degree Recovery Cone: The internal divergence angle is optimized to exactly 7 degrees. This prevents boundary layer separation, maximizing pressure recovery and vacuum pull without causing micro-cavitation.

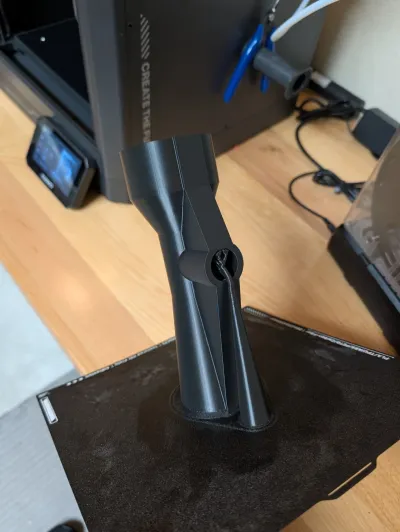

• Structural 1/2" Air Port: Features a massively reinforced side-boss with an integrated gusset. Rigid 1/2" PVC air lines act like levers; this gusset ensures the port won't snap off if the pipe is bumped.

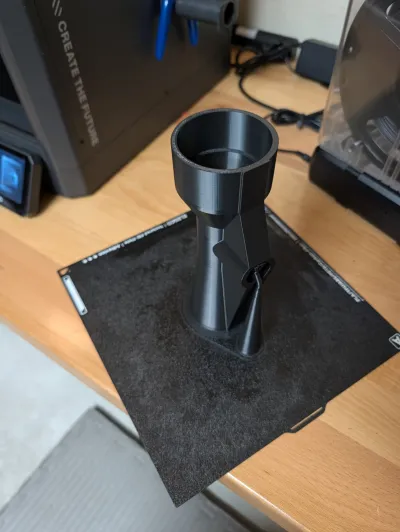

• Slip-Fit 2" Socket: The bottom is perfectly toleranced (Ø60.46 mm) to slide directly over standard 2" Schedule 40 PVC pipe with just enough micro-clearance for epoxy.

⚠️ CRITICAL Printing Requirements

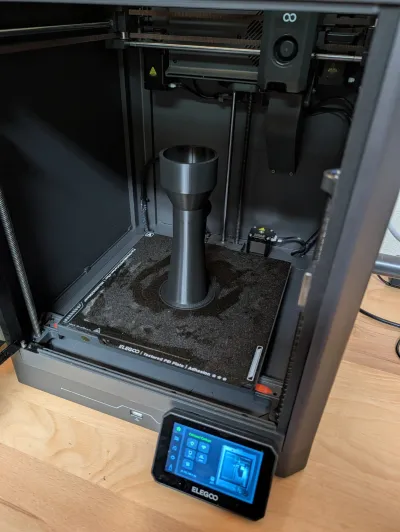

This is a pressure vessel operating continuously underwater with a 5,000 GPH pump. Do not print this with standard decorative settings, and DO NOT use PLA. * Material: ASA, PC-CF, or PETG. If choosing PETG, consider UV resistance if the venturi will sit near the water surface.

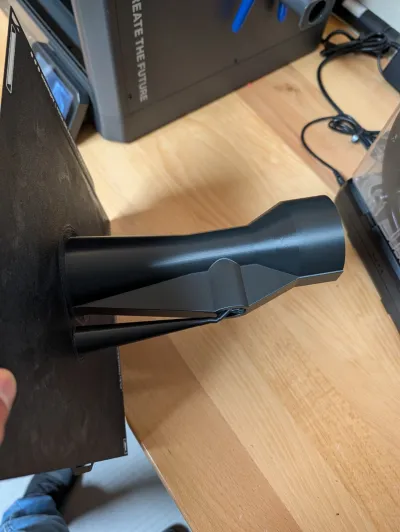

• Orientation: Must print vertically (standing flat on the venturi outlet). This ensures the "hoop stress" of the pressurized water is contained by continuous layer lines.
• Wall Perimeters: 6 to 8 walls. The strength of this part comes from the outer shell, not the infill.
• Extrusion / Flow: Increase your flow ratio by 3% to 5% to over-extrude slightly. This forces plastic into microscopic voids, ensuring a perfectly watertight part.
• Seams: Use Scarf Joint Seams. If unavailable, select "Staggered Inner Seams" and manually paint your seam down the thick backside of the 1/2" port boss.

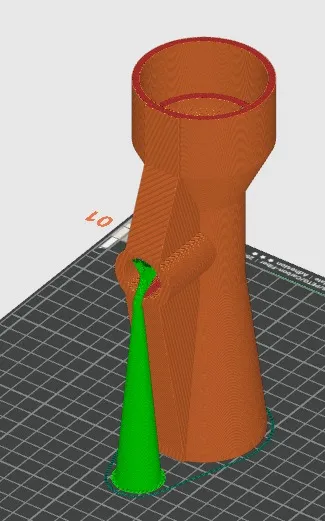

• Supports: Use Tree/Organic supports for the outside of the 1/2" boss. Use a Support Blocker inside the 8mm air hole! The printer will bridge the 8mm gap easily, saving you from digging supports out of the deep PVC socket.

Assembly & Installation Instructions

1. Prep the Pipes: Cut your 2" Schedule 40 PVC water feed pipe and your 1/2" PVC air snorkel to length. Scuff the outside of the pipes where they will enter the printed part with sandpaper.
2. Bonding: Standard PVC cement (Oatey) melts PVC, but it does not chemically weld to 3D printed ASA/PETG. For a permanent, waterproof bond, use a high-quality Marine Epoxy (like J-B Weld MarineWeld) inside the printed sockets.
3. Assemble: Slide the Venturi onto the 2" pipe, and insert the 1/2" snorkel into the side port. Let the epoxy fully cure according to the manufacturer's instructions.

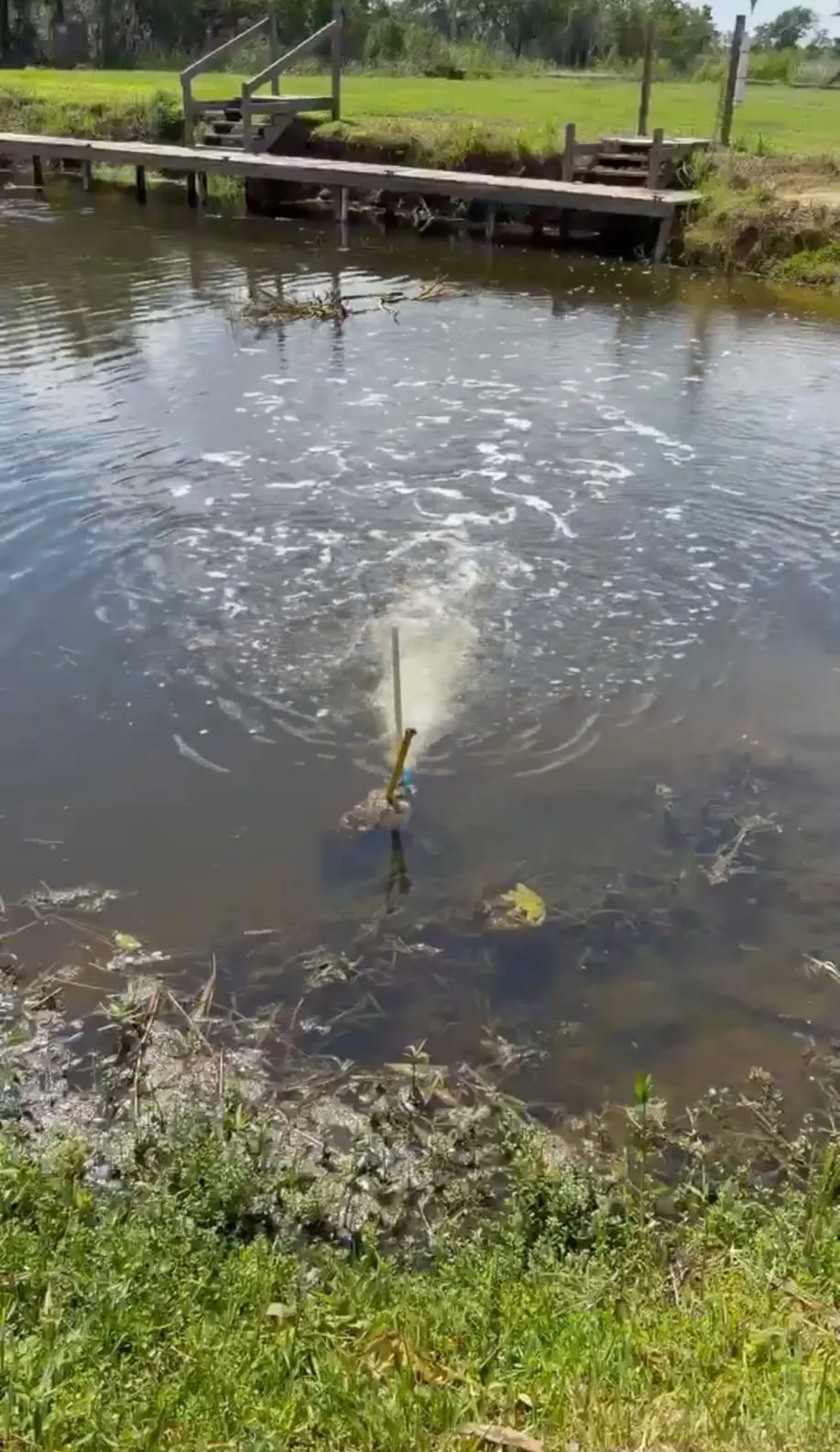

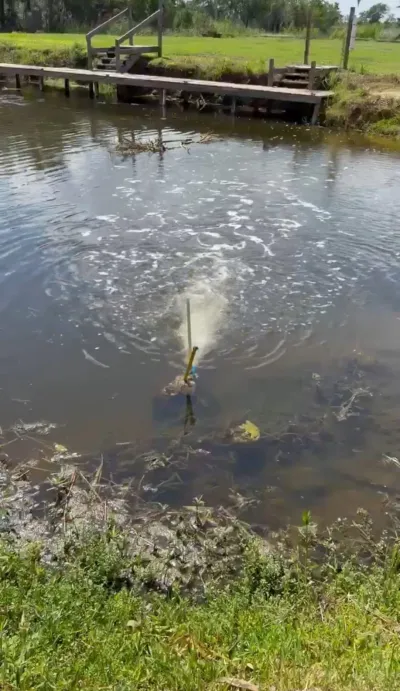

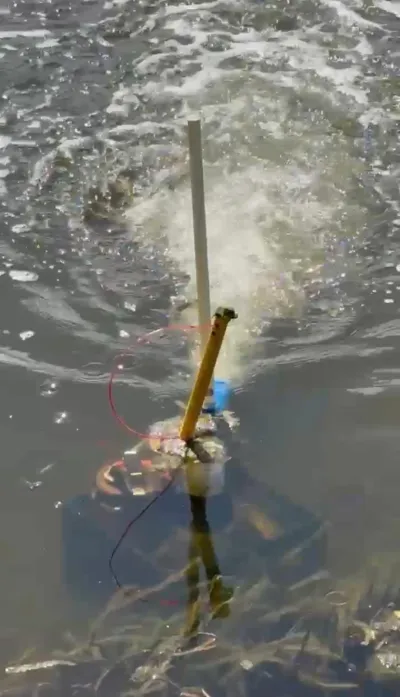

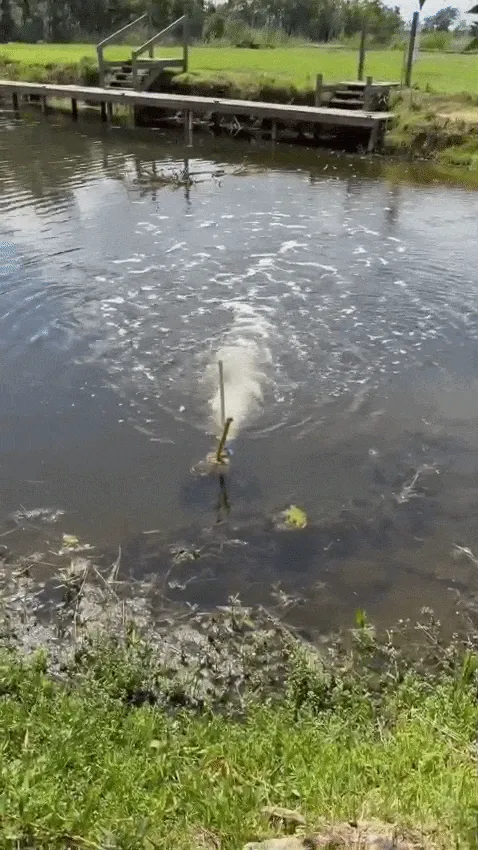

4. Deploy: Hook the 2" line to your 5,000 GPH pump, sink the assembly into the deepest part of your pond (keeping the top of the 1/2" snorkel above the water line), and turn it on!

Original Model designed by Torque Joint Labs.
