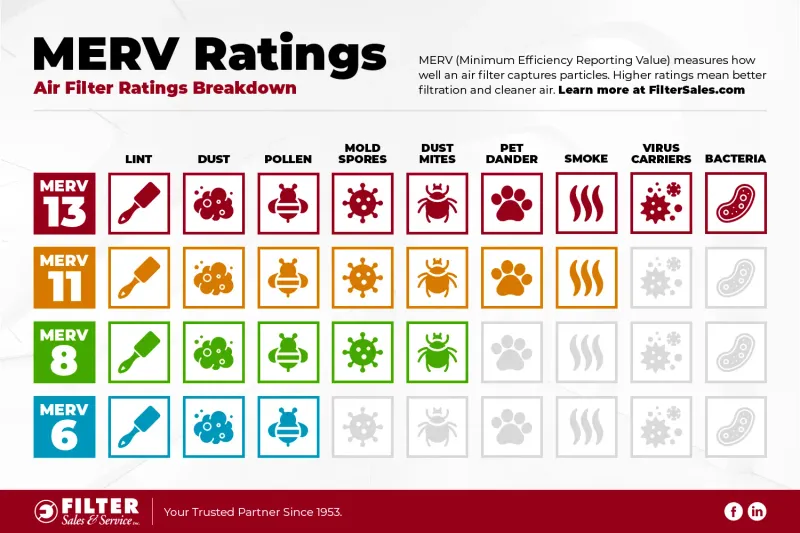

Recommended filter: make sure the filter is HEPA and certifies for at least MERV11. For filtering virus carriers and bacteria, use a filter that's rated for a minimum of MERV13.

Typical air filtration devices which cost ~£100 can usually filter out 100-200m^3 of air per hour. In comparison, This purifier aims to achieve 1000m^3 per hour. (the fan itself is rated for 1680m^3, but I have made a conservative estimate of 1000 due to filters adding resistance to the airflow)

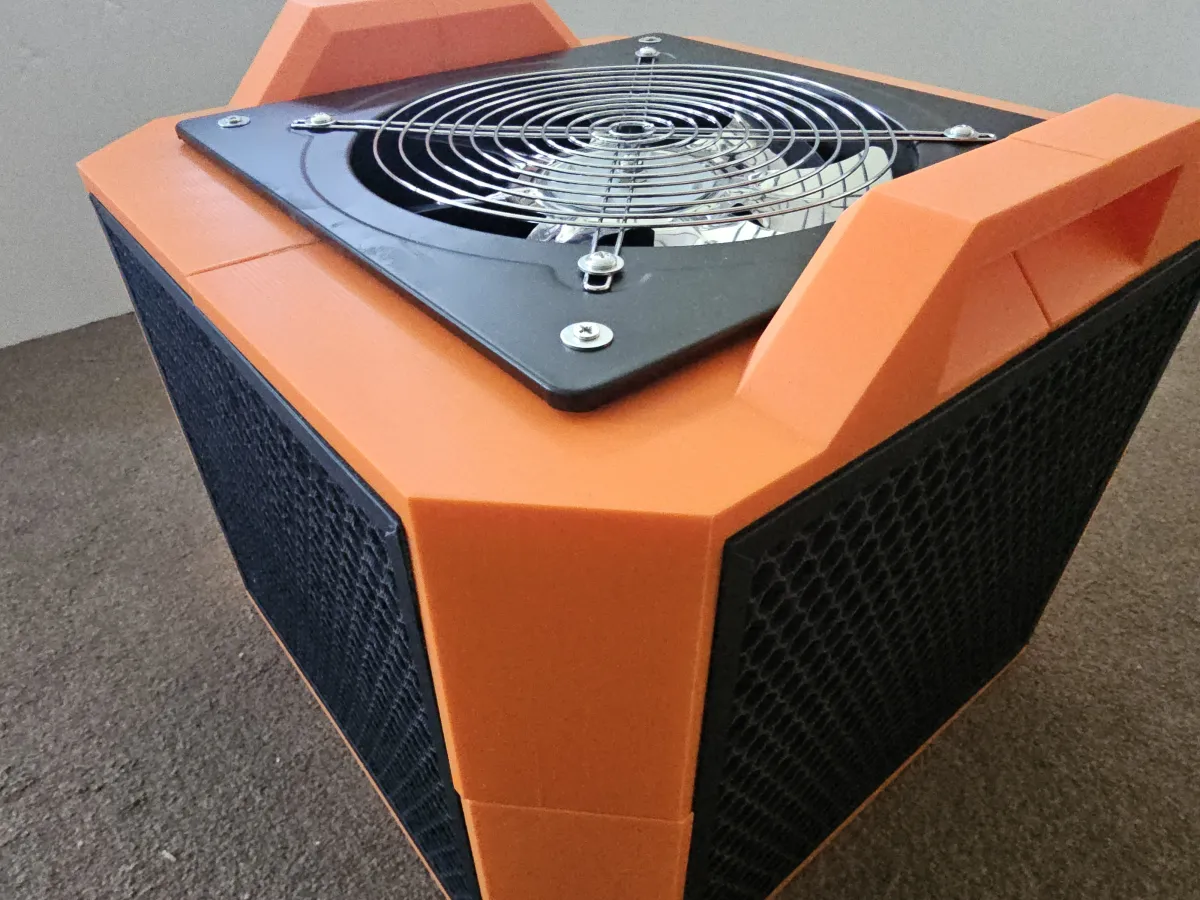

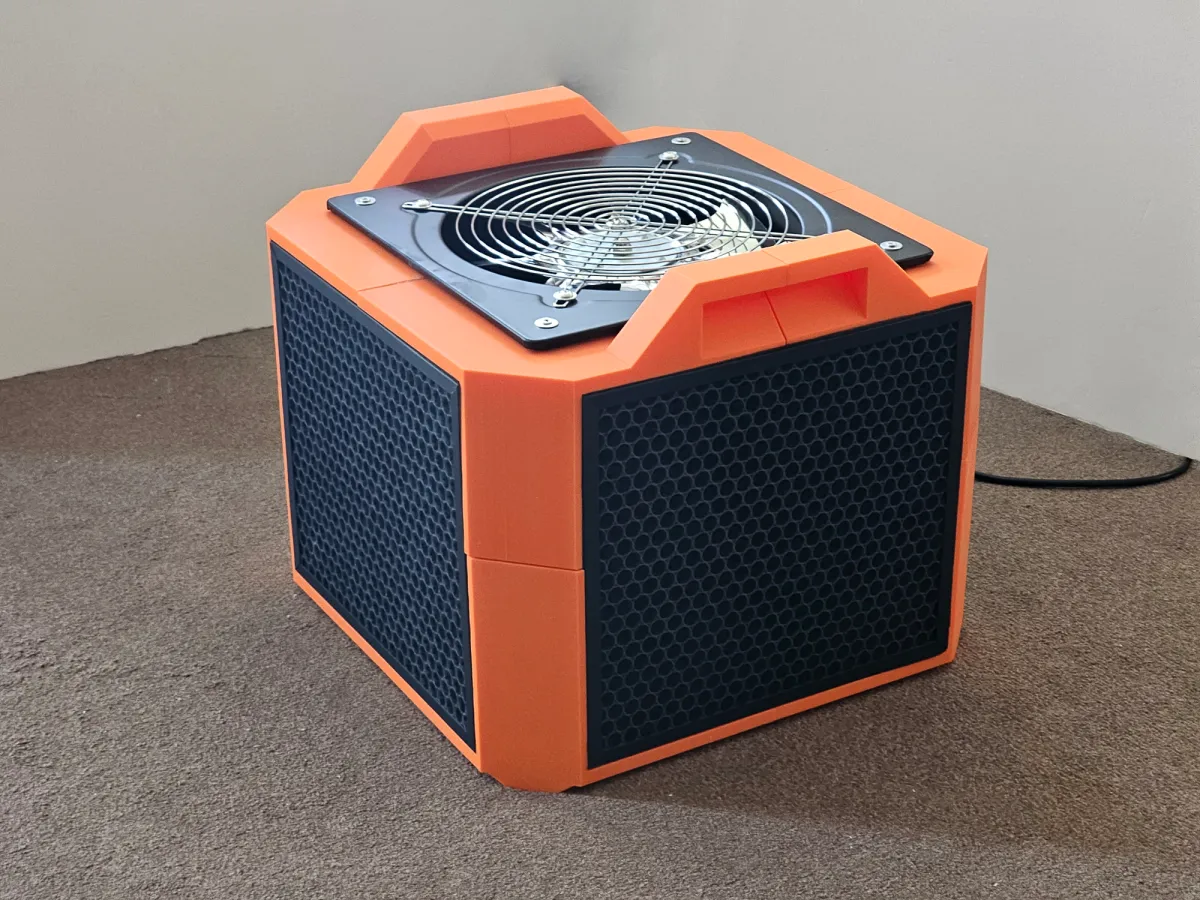

This design has 4 replacable filters, and includes 2 carrying handles.

Hardware:

1x Large 250mm ventilation fan (250mm diameter, 300mm mounting plate, 255mm screw spacing. Often sold for kitchens):
https://amzn.eu/d/0aF1TzE7
4x screws (included with the fan, thread directly into the plastic)
4x Air filters:
https://amzn.eu/d/09JN1nY6

Also requires 2kg of filament. PLA is suggested.

Total hardware cost: £82 ($112 USD)
Total cost including filament £102 ($138 USD)


If you only want to filter dust in a workshop, chosing a lower MERV rating can save you money. If using in a dusty environment, make sure to clean these filters regularly with a vacuum. These filters should be entirely replaced every 6-12 months with moderate use. Light use in fairly clean rooms (such as offices) can extend the life of these filters to 2 years or more. With heavy use, these filters should not be used for longer than ~4-6 months.
You can also add a pre-filter to extend the lifespan of this filter

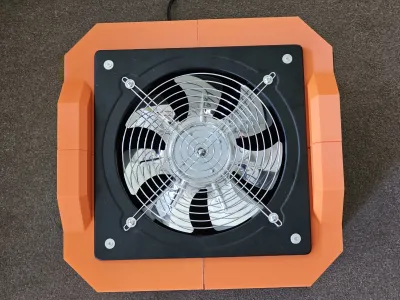

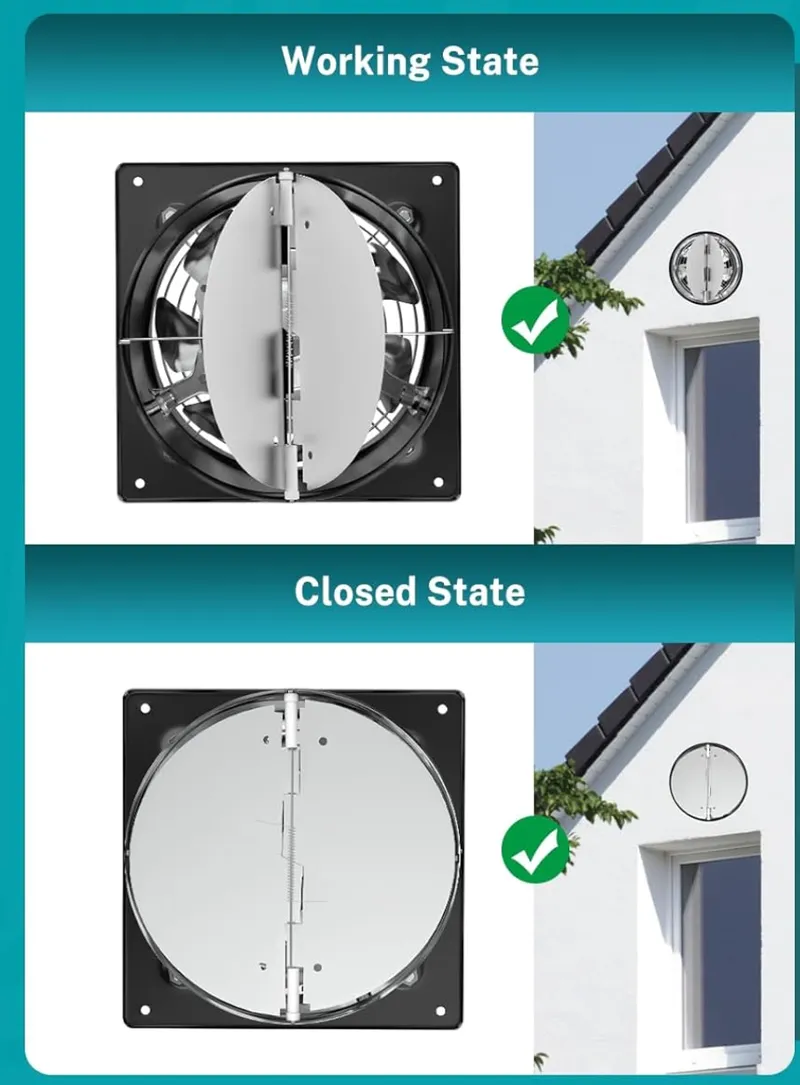

When constructing, I suggest removing the big metal flaps on the fan as they restrict airflow:

you only need a medium sized phillips screwdriver to remove these.

Inspired by box fan filters like this, but made slightly less janky...

















in the files, I have included the whole assembly as well as the components split up individually. I suggest downloading the whole assembly and splitting it in the slicer.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator
