  • 75 mm LTT inspired magnetic cable arches

75 mm Large Magnetic Cable Arch
Print Profile(0)

  • Earn points by adding print configurations

1

0

8

2

Released 2026-01-08
Details
Files(2)
Makes & Comments (0)

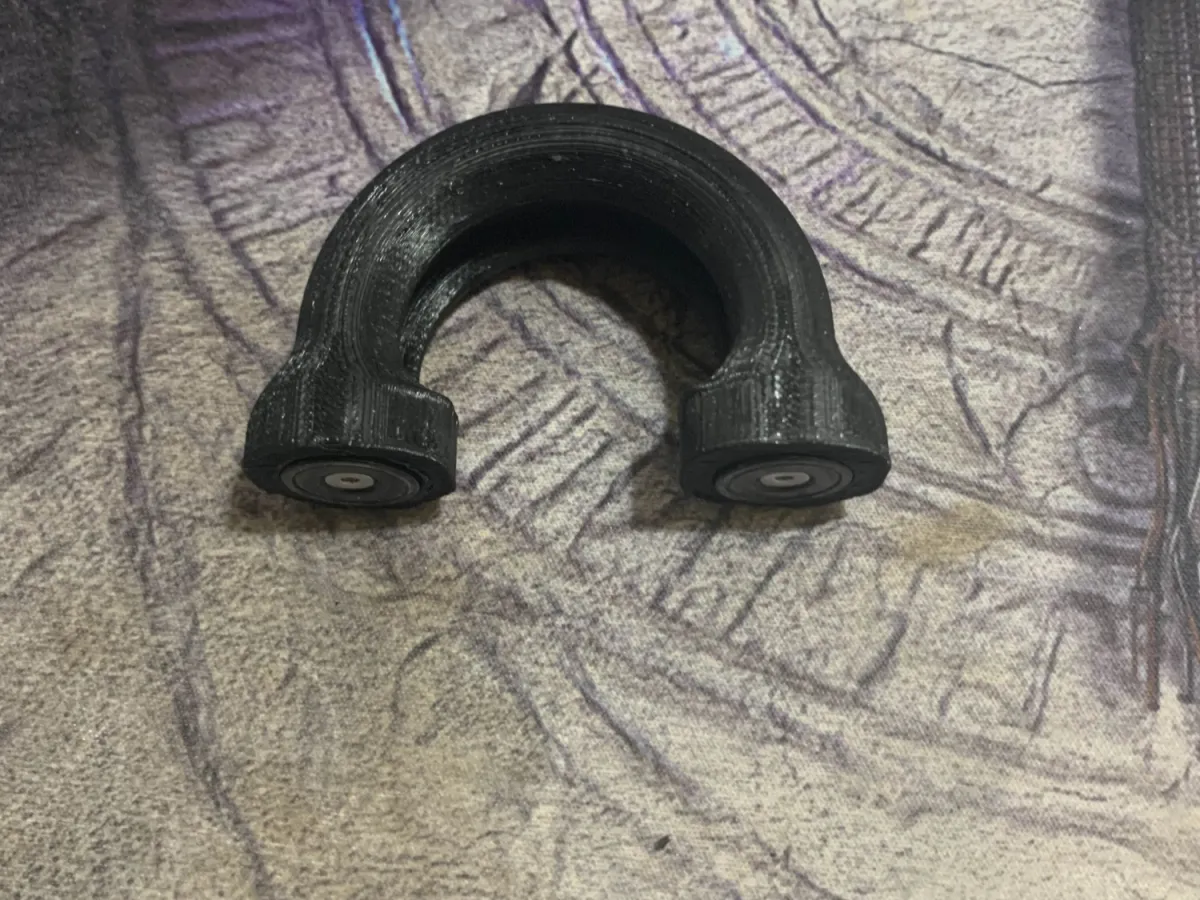

Inspired by the LTT magnetic cable management holders I designed these to go with 16 mm diameter x 5mm high screw in magnets.  These use M3 countersunk screws and 4 mm high heat set inserts.  Each

Magnets: https://www.amazon.com/gp/product/B0CR6JRFZL
Inserts: https://www.amazon.com/gp/product/B0CLKCQ2SH

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    16mm Circular Magnet
    2
  • 2
    M3 heatset insert
    2
  • 3
    10mm M3 countersink Screw
    2

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(2)

  • model file image
    75mm Large Arch.stepDesigner

    322.79 KB

    2026-01-07

  • model file image
    75mm_Arch.stlDesigner

    1018.44 KB

    2026-01-07
