DISCLAIMER: YOU ARE GONNA NEED TO CUT A SMALL PIECE OF THE ORIGINAL SHROUD OTHERWISE THIS WON'T FIT OR USE ANOTHER SHROUD DESIGN
[955271-sv08-toolhead-cover]

Give this a read before you start and follow it to calibrate the probe [docs.cartographer3d.com]

Print settings:

• ABS/ASA or better [PETG is too bendy for Touch, PLA not heat resistant enough]

• 0.2mm layer height

• Classic wall generator

• 5 wall loops

• 5 top/bottom shells

• 40% cubic infill

• support for the counterbores and the bridge [check photos]

Assembly:

• Install 2x M3 heat inserts into mount

• Turn printer off

• Remove the shroud and unplug the fan connector for easier access to the toolhead

• Take off the AUX fan and its mount. Keep the screws, you will reuse them

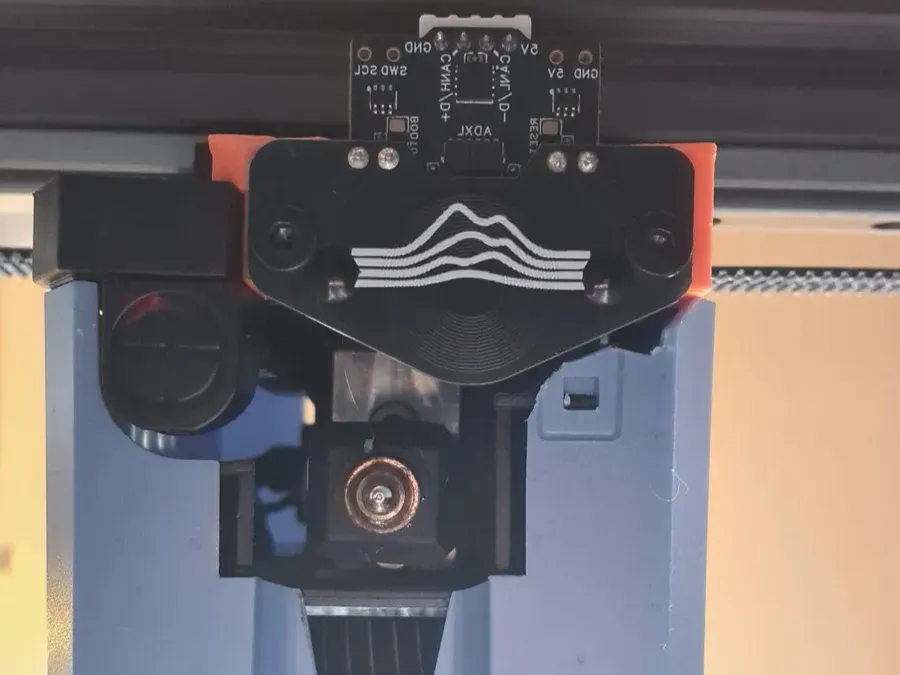

• Use the 2 flathead M3 screws from the Cartographer3D box to attach the probe to the mount [Do not go full Hulk on the screws]

• Route the USB cable through the lower slit in the carriage

• Use the 2 socket head M3 screws [from the AUX fan removal] to attach the mount to the carriage [Same screw-tightening rule applies]

• Plug the USB cable into the probe

• Route the cable alongside the PTFE tube, then plug the USB-A end into the side USB port on the printer

• Trim a small piece of the shroud for clearance, do not cut the small clips, they are for securing the stock ducts [check photos] or use a modified shroud

Probe offsets:

• V3

  • X 7.3

  • Y 18.4

  • Z 2.7

• V4

  • X 7.3

  • Y 20.9

  • Z 2.7
