• desiccant container

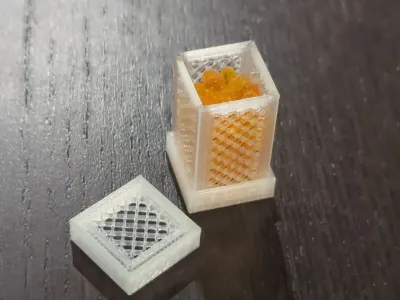

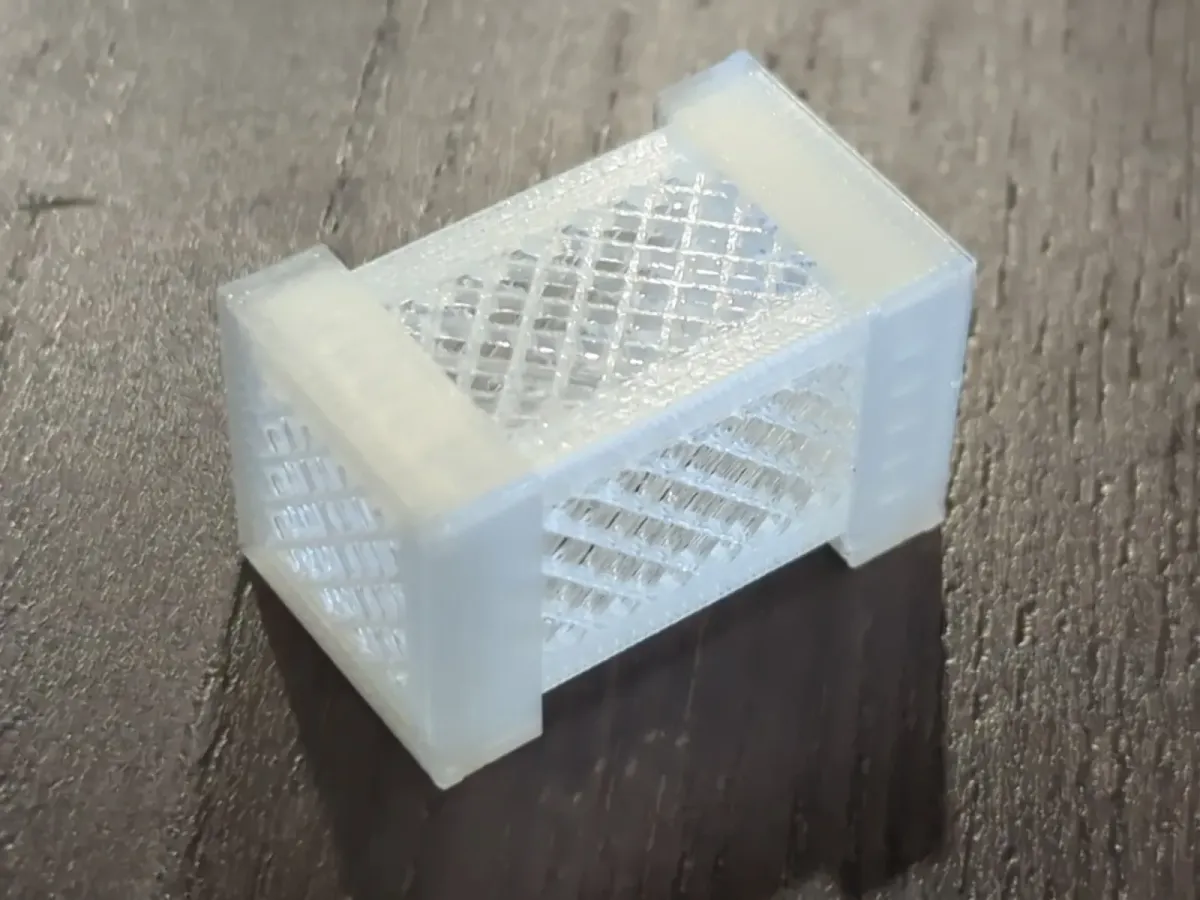

This is a remix of the Short Foldable Desiccant Box by NarlyB that customizes the box and lid walls to use infill modifiers. The original model is awesome, but using infill patterns instead of the fixed grid of holes provides a lot of scope for creating custom designs, and generally prints faster.



The included .3mf files are preconfigured for PrusaSlicer and Bambu Studio with the following Infill and Layer modifiers:

  • Infill: Grid; Density: 40%
  • Bottom Layers: 0; Top Layers 0; Perimeters: 1

Print with a 0.2mm layer height

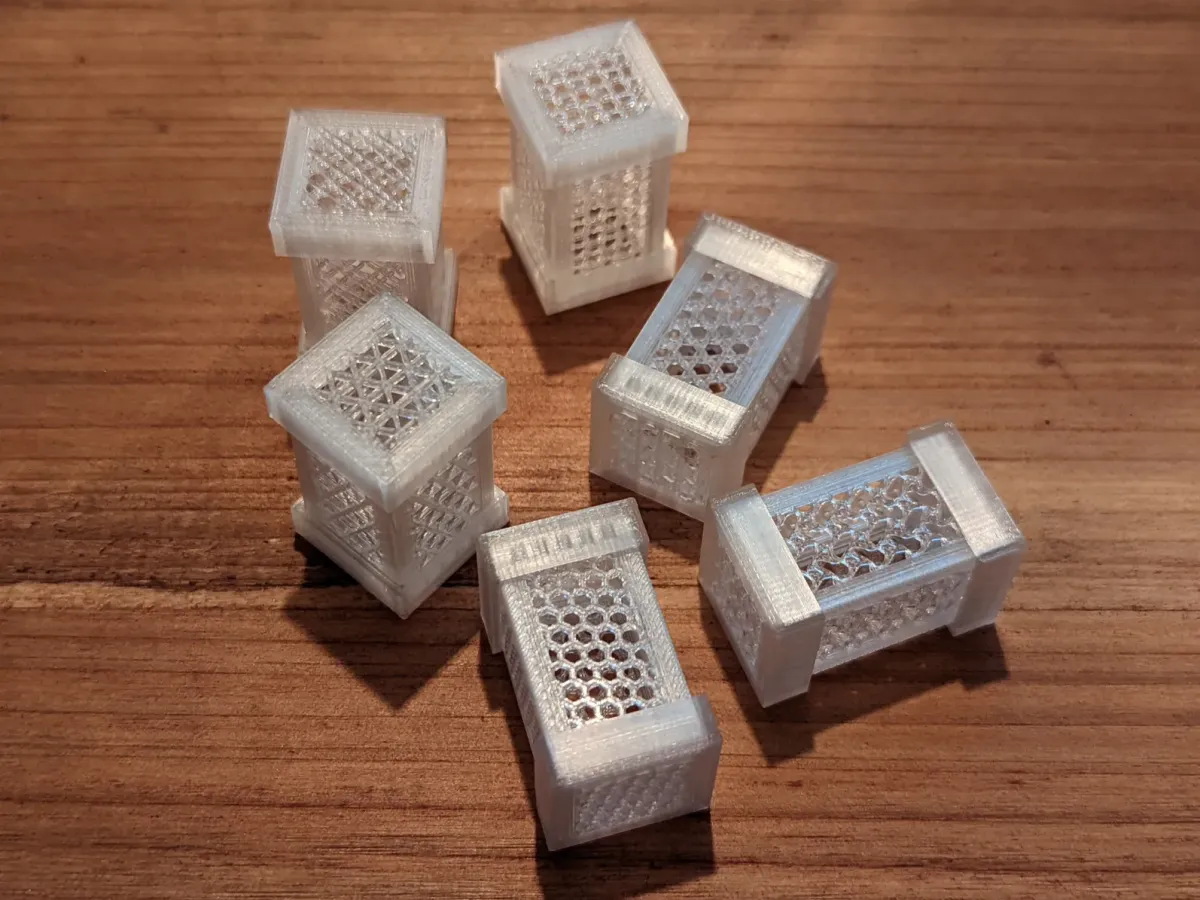

I've been testing with some alternative infill patterns, 30% to 40% density seems to work well to have small enough gaps so the desiccant doesn't fall out.  You can also adjust the infill angle to improve the look.  Here are some settings that have worked well for me:

  • Infill: Honeycomb; Density 30%
  • Infill: Triangles; Density 41%; Fill angle 32º
  • Infill: Stars; Density 41%; Fill angle 0º
  • Infill: Lines; Density 22%
  • Infill: 3D Honeycomb; Density 17%
  • Infill: Gyroid; Density 22

Please share your makes with different settings.

Originality of the Model

The author declares that this work is their personally shared model
