Precision Resistor Lead Bending Tool
Print Profile(1)
  • 0.28mm layer, 2 walls, 5% infill

    1-disc

    PLA

    Designer

4

9

76

12

Released 2026-04-02
Details
Files(1)
Makes & Comments (0)

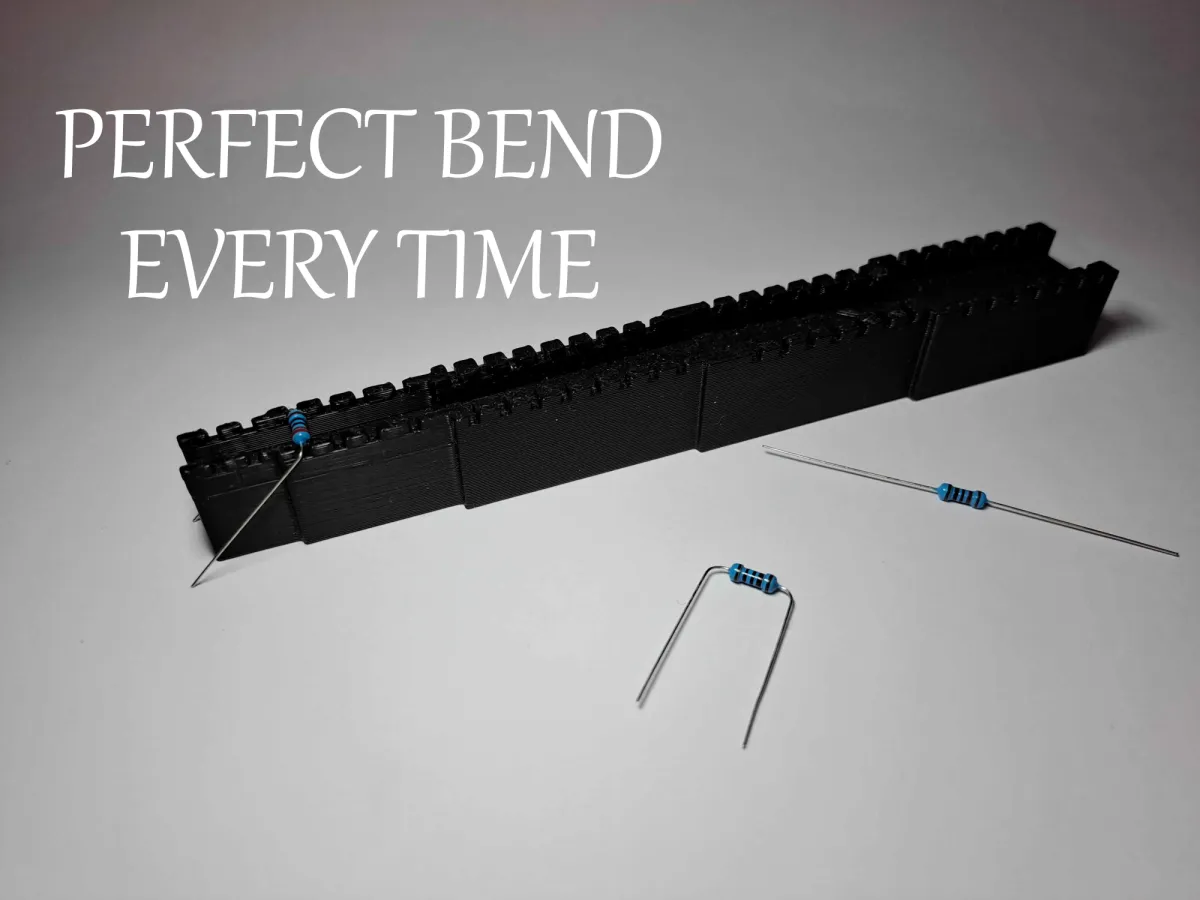

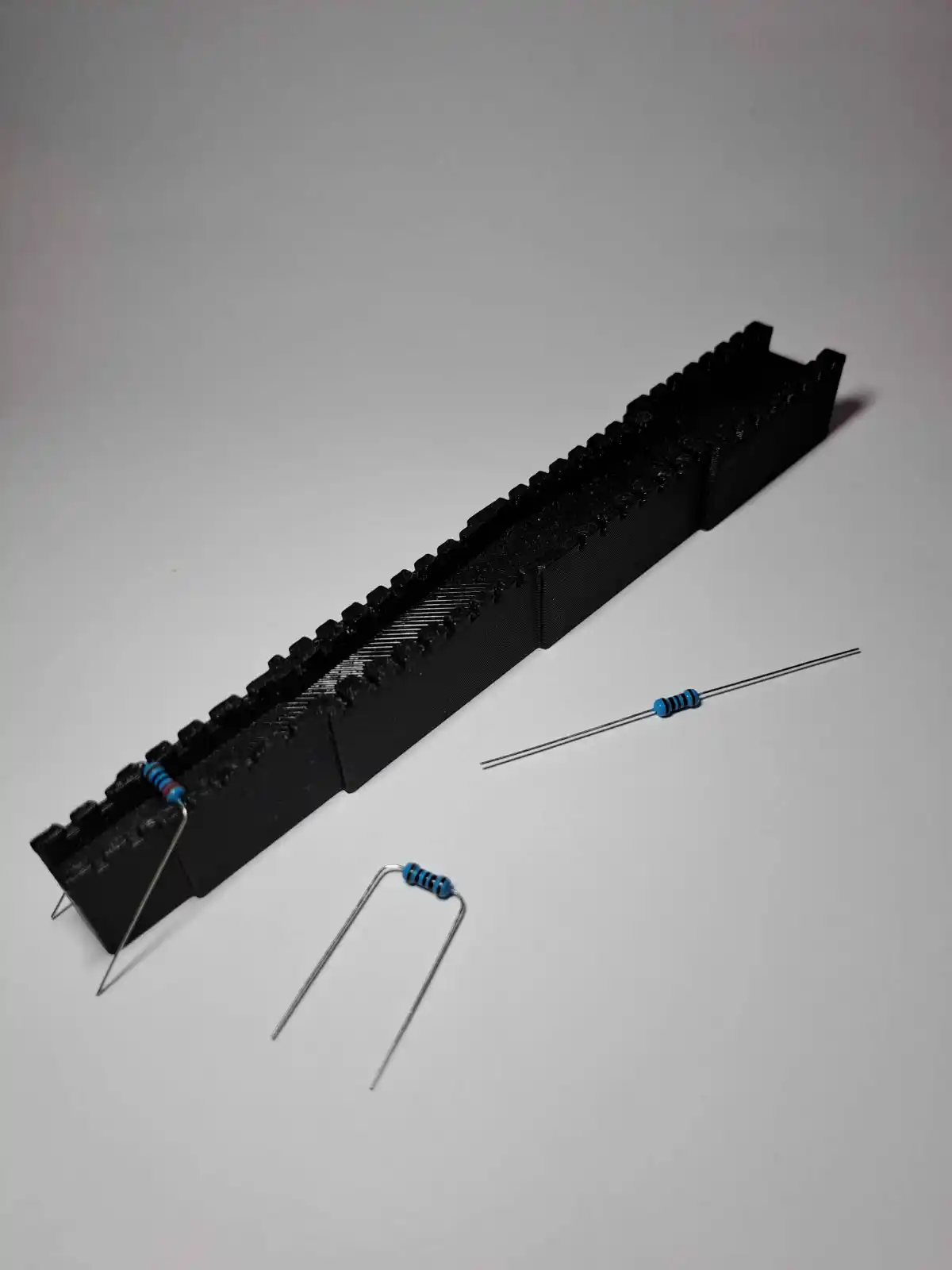

A compact precision lead‑bending tool designed for bending resistor legs to exact widths of 7.5, 10.0, 12.5, 15.0, and 17.5 mm. The model features clearly defined slots for each size, ensuring consistent, accurate bends every time. It prints quickly, requires no supports, and has a simple, durable form that makes it easy to use at the workbench. Perfect for electronics projects, prototyping, and anyone who wants perfectly aligned resistor leads with minimal effort.











Hope you like the print



If you want to support you can like, comment and share with a friend. Any and all support is deeply appreciated.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Standard Digital File License

This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.

Models(1)

  • model file image
    Resistor bend bracket v1.3mfDesigner

    38.65 KB

    2026-04-01
