working turbine (works with compressed air)
Print Profile(1)
  • 0.2mm layer, 2 walls, 15% infill

    1-disc

    PLA

    Designer

0

0

31

2

Released 2025-12-17
Details
Files(6)
Makes & Comments (0)

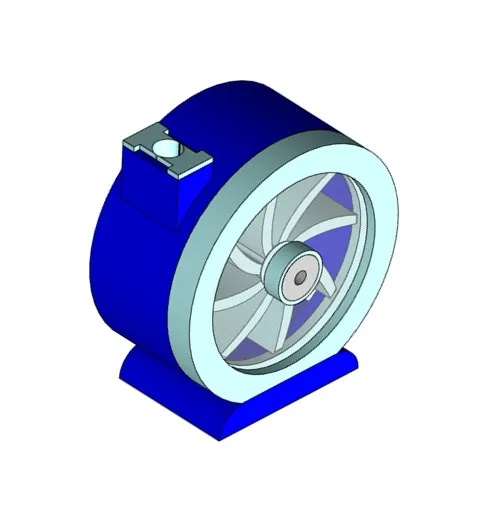

This is a functional 3D printed turbine model designed to demonstrate airflow and rotational mechanics. It's a great project for learning about motors, blades.

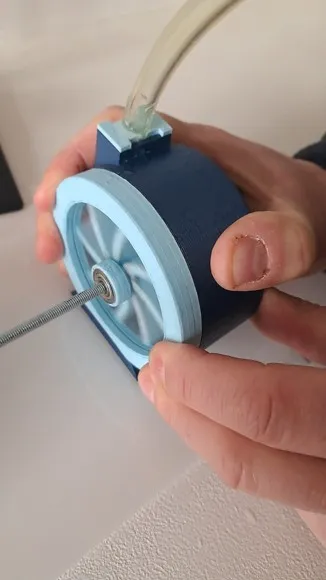

  • Mechanism: The turbine is powered by compressed air. You can connect the turbine to a motor to generate electricity.
  • Design: Features a classic turbine/fan blade design housed in a casing to direct airflow.
  • Ideal For: Educational purposes, electronics enthusiasts, or as a component in a larger DIY air circulation project.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    dxf-file "turbine transparent lasercut"
    1
    lasercut the dxf-file
  • 2
    bearings 5x16x5mm
    2

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(6)

  • model file image
    working turbine.3mfDesigner

    75.16 KB

    2025-12-17

  • turbine transparent lasercut.DXFDesigner

    20.05 KB

    2025-12-17

  • model file image
    turbine connector tube.STLDesigner

    14.34 KB

    2025-12-17

  • model file image
    turbine rotor.STLDesigner

    52.62 KB

    2025-12-17

  • model file image
    turbine body front.STLDesigner

    68.44 KB

    2025-12-17

  • model file image
    turbine main body.STLDesigner

    30.55 KB

    2025-12-17
