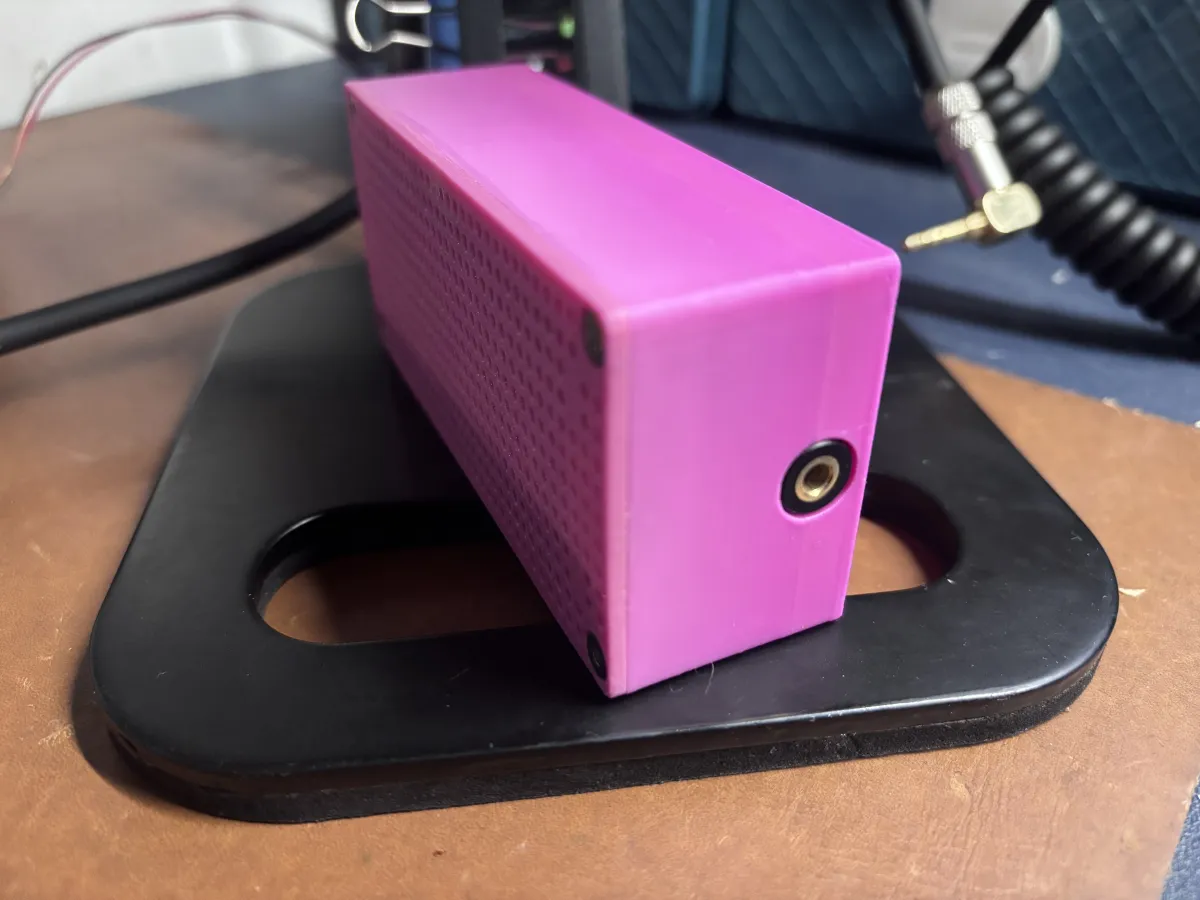

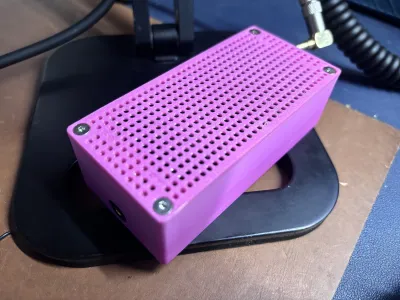

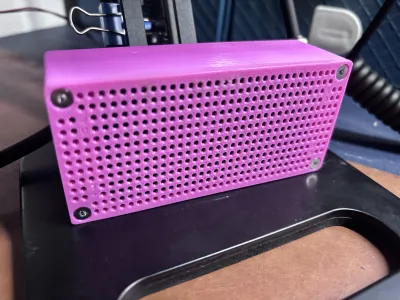

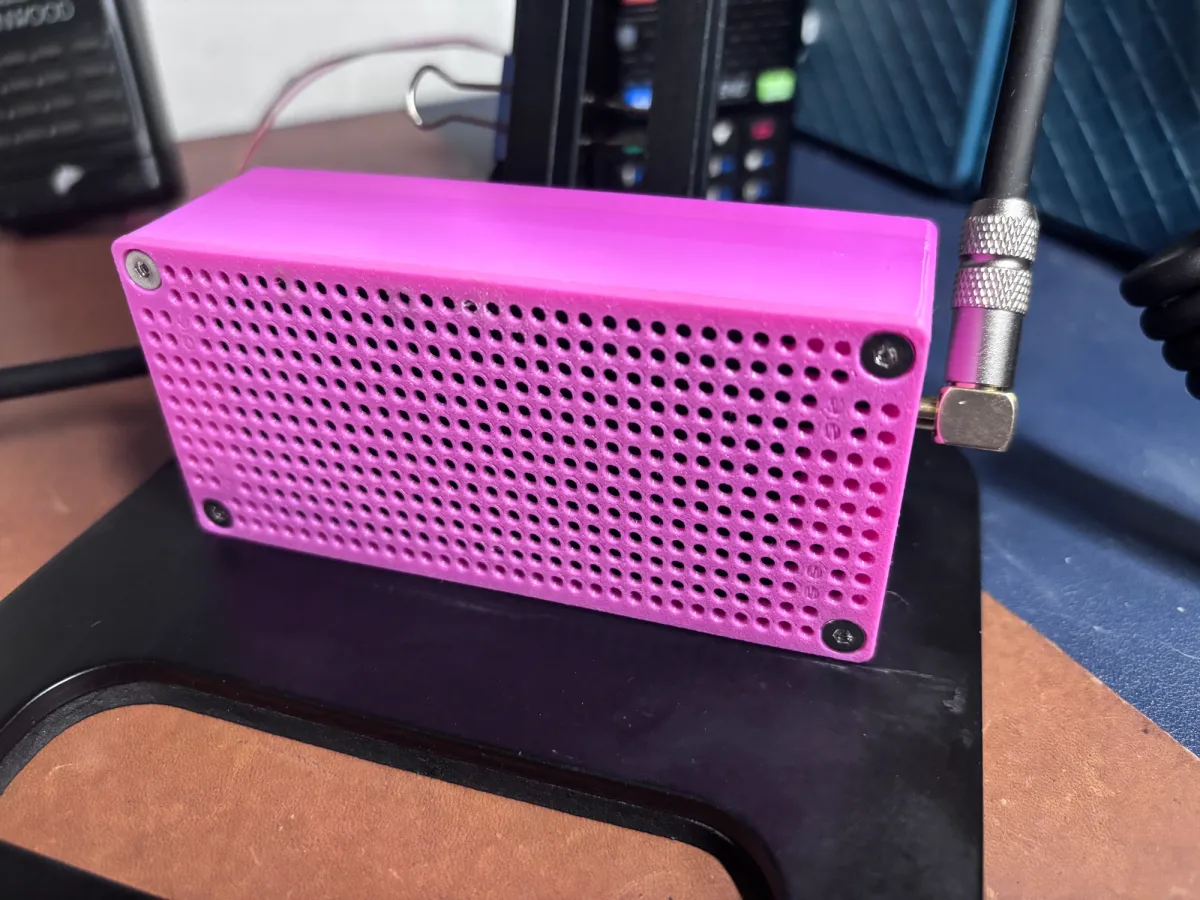

While learning 3D design, I also designed the housing for a small passive speaker. It supports a single-chamber speaker and outputs sound via a 3.5mm headphone jack. It uses built-in M3 screws and copper posts for secure mounting. The overall design is quite compact and portable.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Models(3)

  • model file image
    外置的一个无源音箱前面板.stlDesigner

    11.78 MB

    2025-12-09

  • model file image
    外置的一个无源音箱后壳.stlDesigner

    766.37 KB

    2025-12-09

  • model file image
    外置的一个无源音箱壳身.stlDesigner

    303.92 KB

    2025-12-09
