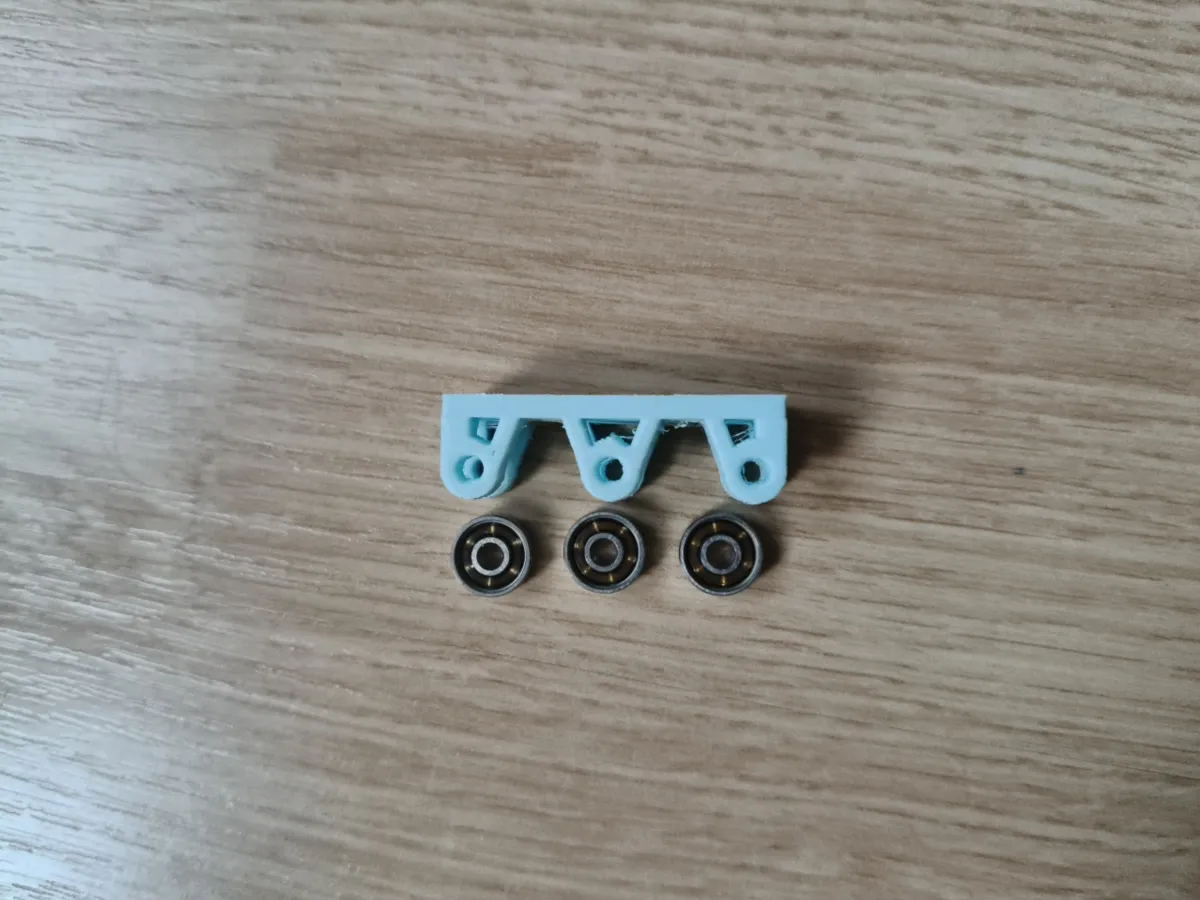

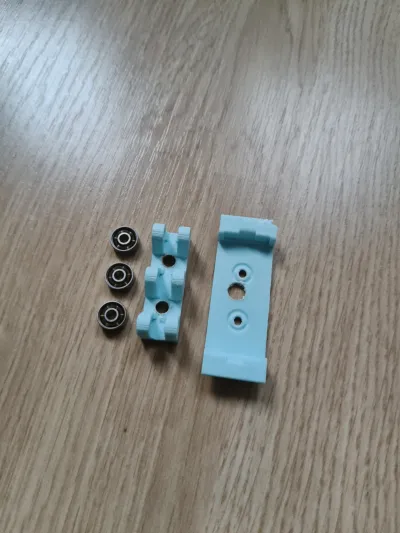

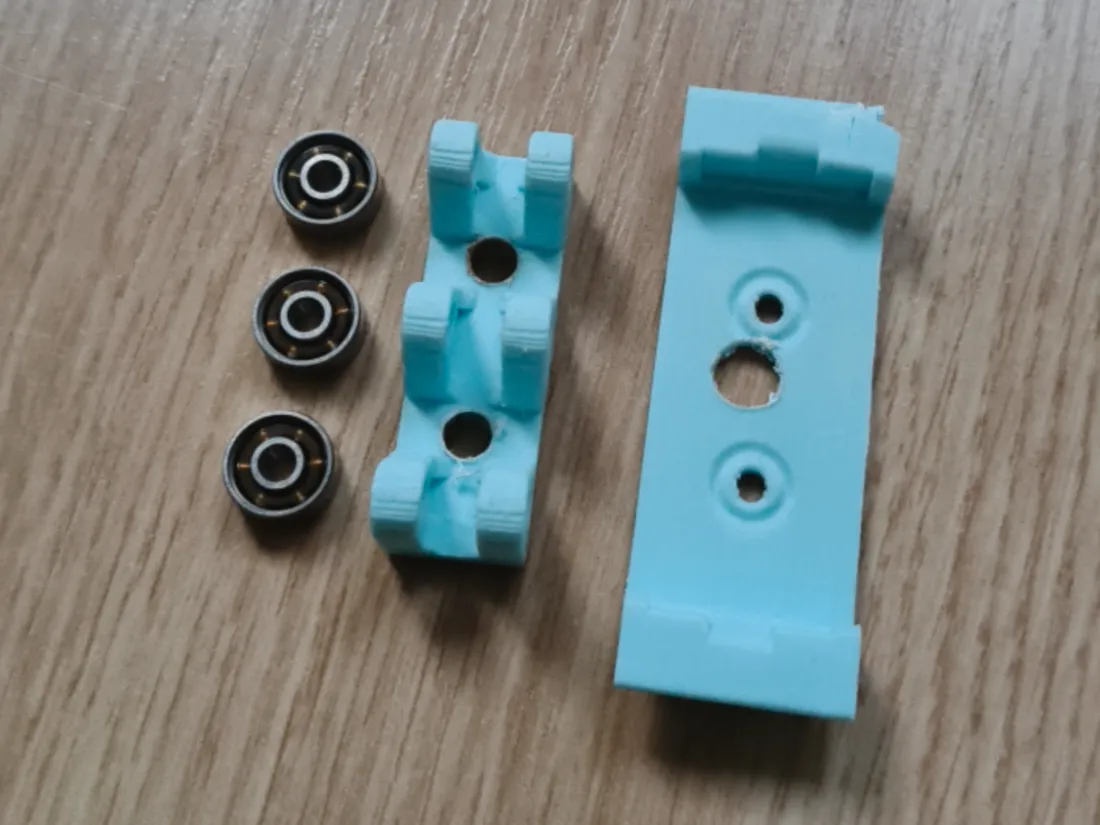

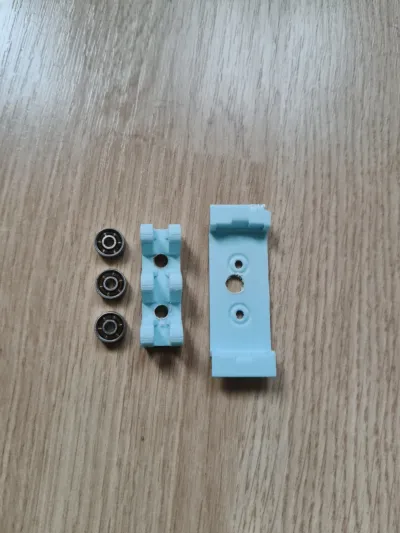

Achieve perfect tension in your mechanical builds with this spring-loaded bearing mount. This design features an integrated slot for a compression spring and a central hole for mounting, making it an ideal solution for belt tensioners, filament extruders, or custom robotic joints. Optimized for common bearings (like the 608RS or 625ZZ), ensuring smooth and low-friction rotation.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    ball bearings
    3
    3x10x4
  • 2
    M3 12mm bolts
    5
  • 3
    compress springs
    2

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(3)

  • model file image
    spring loaded bearing with hole.3mfDesigner

    96.68 KB

    2026-03-10

  • model file image
    spring loaded bearings top part.stlDesigner

    124.30 KB

    2026-03-10

  • model file image
    spring loaded bearing with hole.stlDesigner

    176.64 KB

    2026-03-10
