  • Shelf Support

Shelf Material Tray Rack
Print Profile(1)
  • 0.2 mm layer height, 3‑layer walls, 15% infill density

    1-disc

    PLA

    Designer

0

0

15

1

Released 2025-11-24
Details
Files(1)
Makes & Comments (0)

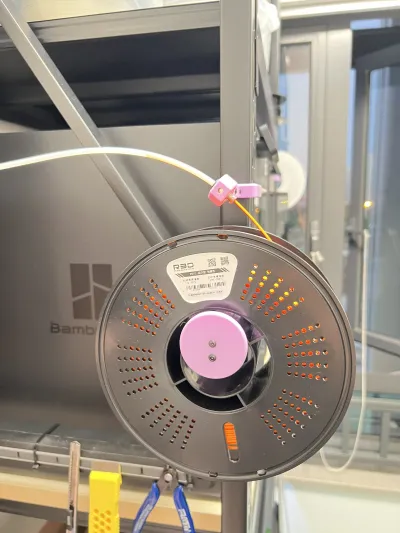

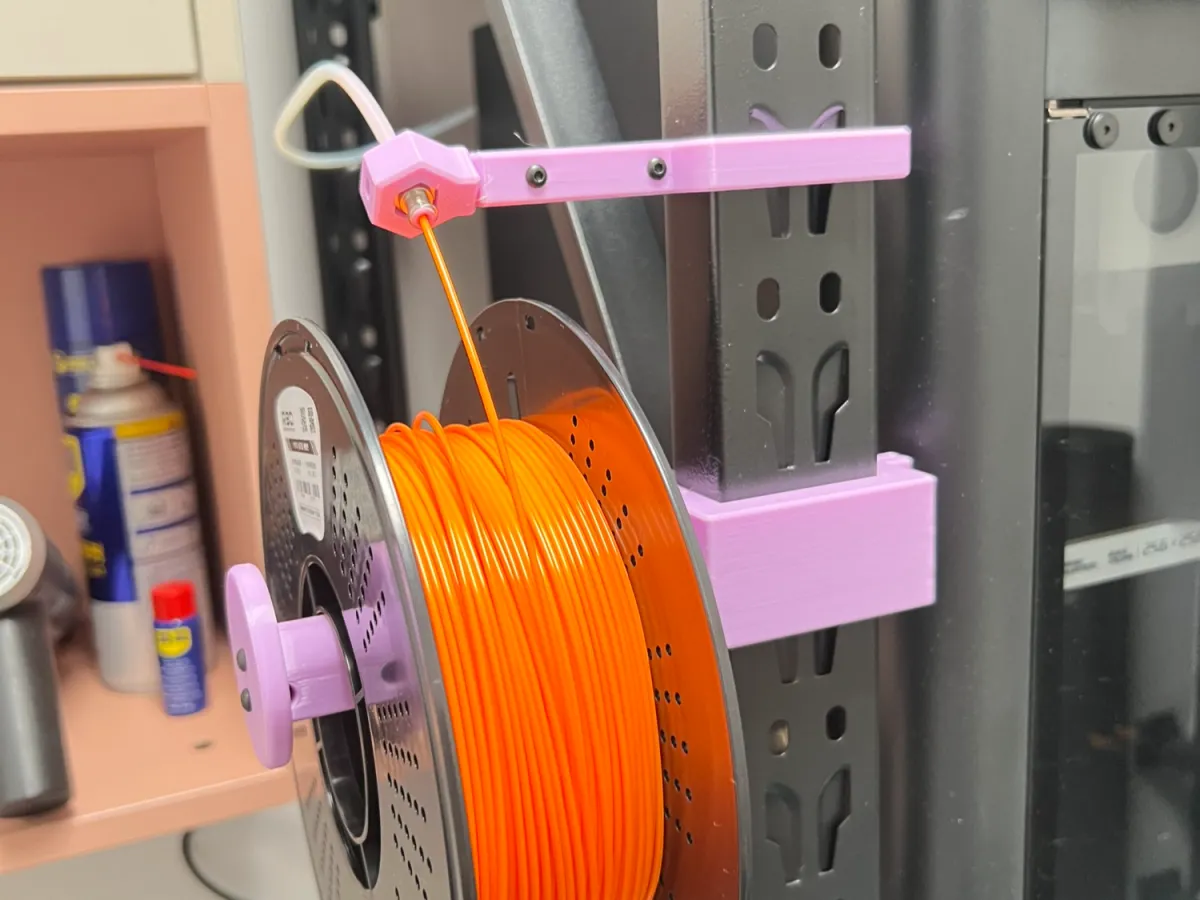

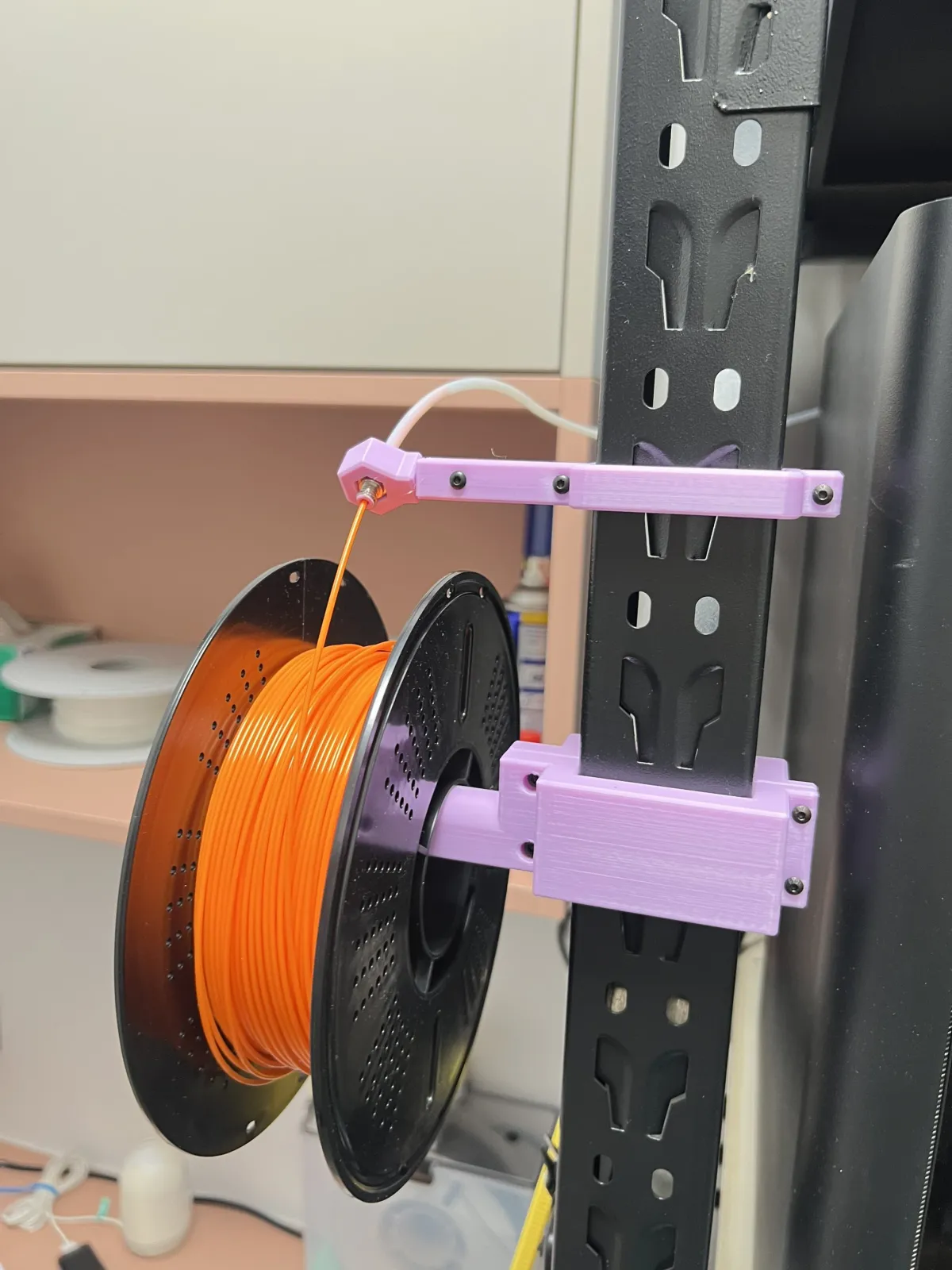

Shelf tray bracket designed to fit shelves measuring 30mm × 50mm
The mounting interface ensures stable, vibration‑free operation, while the discharge port can be freely adjusted to accommodate either 1kg or 3kg material trays.
Requires one PC4-M6 pneumatic connector.
M3 nuts – 10 pieces
Several M3 × 12 and M3 × 15 fasteners.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(1)

  • model file image
    货架料盘架.3mfDesigner

    604.55 KB

    2025-11-23
