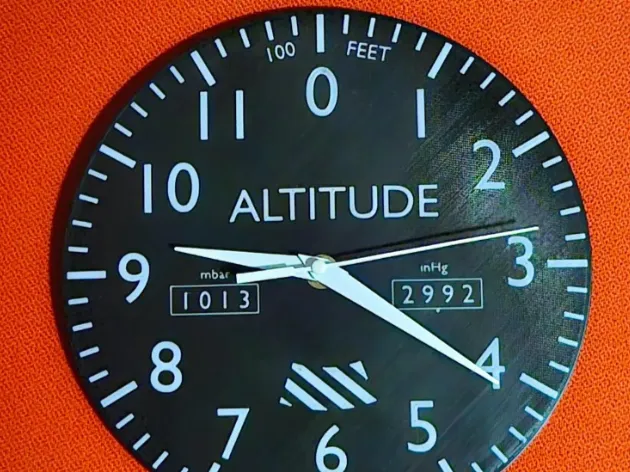

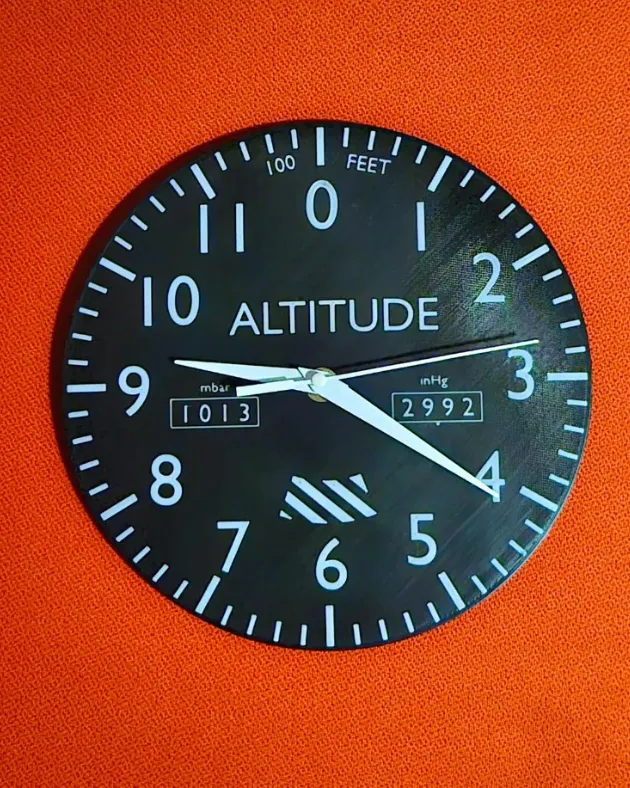

This is a design for an Altimeter clock. There are 2 versions available, each with it's own STL if needed, however it's suggested to use the 3mf file and change the settings for your printer.



Single Extruder version - 23cm clock:
The faceplate and the back are to be printed as 2 separate pieces. For the faceplate, set the layer height to 0.2mm and from the Prepare tab, do a filament change at layer 18 (or 3 layers from the top). This'll help you achieve the white writing on top of the black.



MMU Version - 22.2cm clock:
Print face-down. Ensure that the bed is clean, level and monitor the first layer closely.



Clock Mechanism:
Purchase a clock mechanism with atleast 7mm worth of threaded section. Ensure it comes with hands as the model doesn't include clock hands.



For private use only.

Hope you enjoy!

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    Clock mechanism
    1
    Atleast 7mm threaded section

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted
