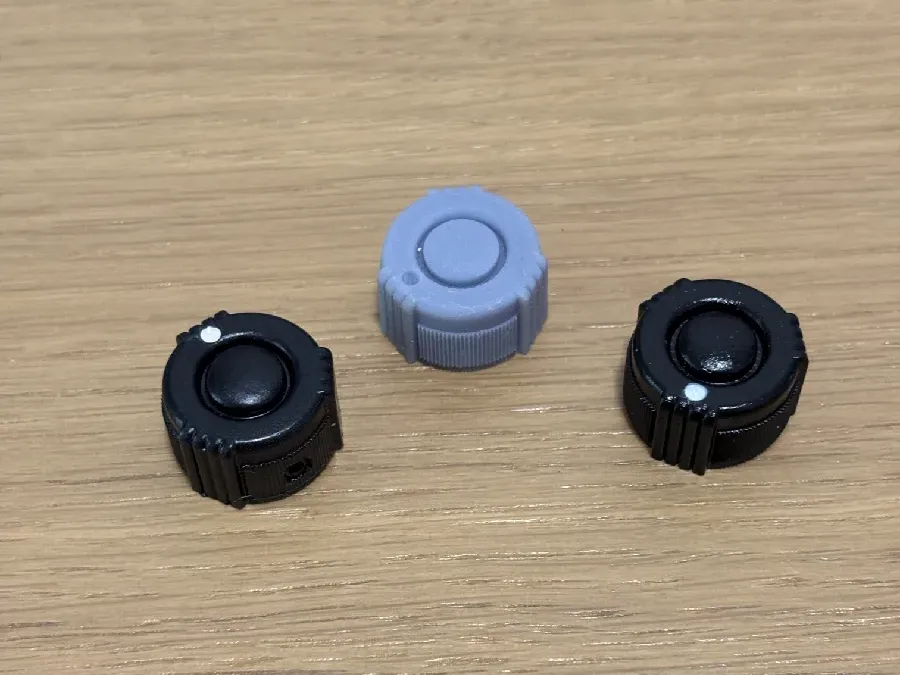

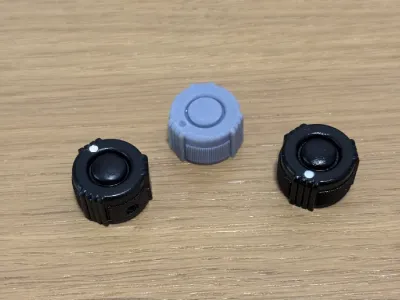

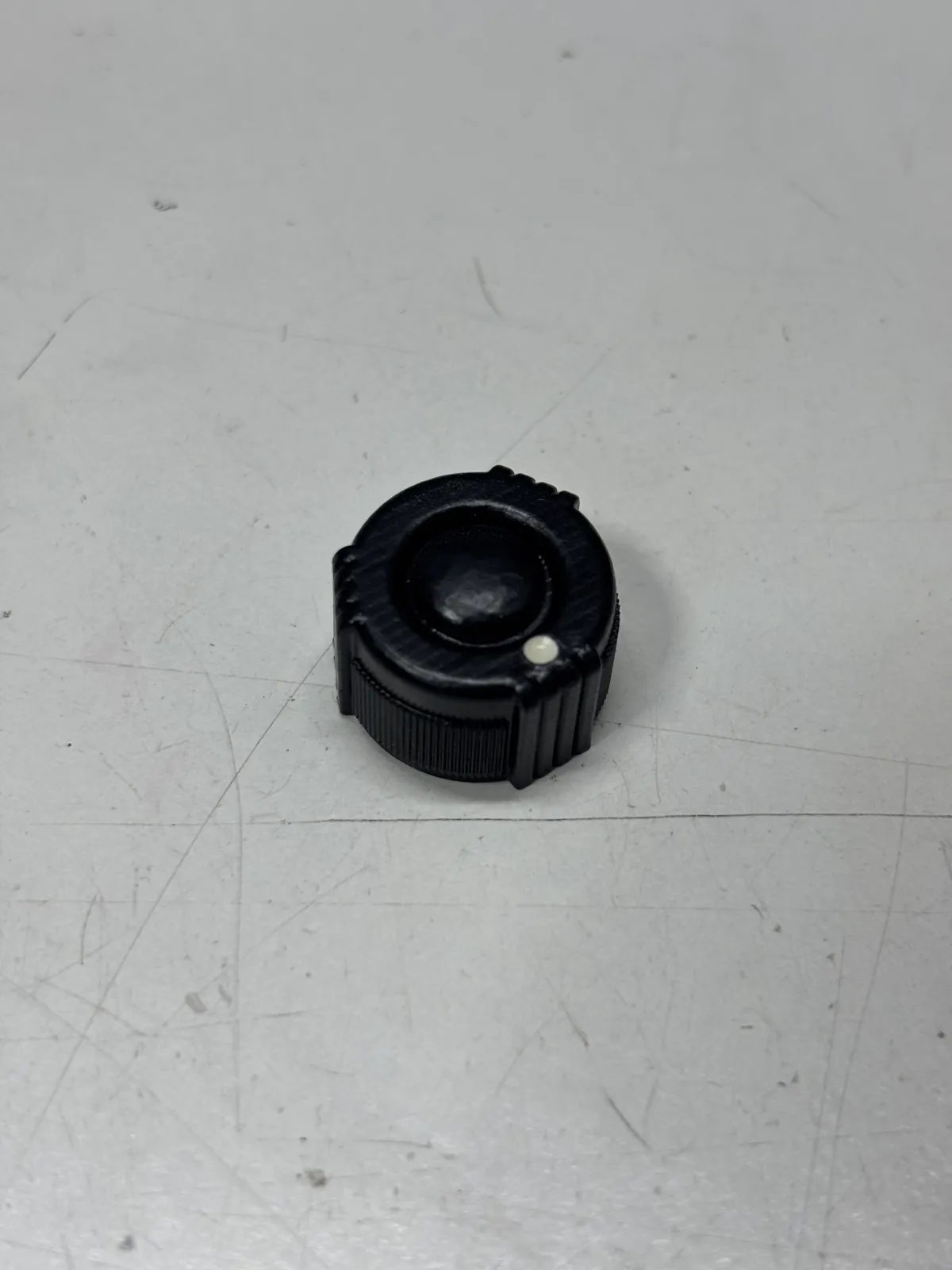

📖 Description: The "Mini-Russian" Industrial Knob

Bring the legendary, rugged aesthetic of the Soviet-era "Green Russian" pedals to your compact builds! This 18mm diameter knob is a scaled-down version of the iconic tank-style controls, offering a brutalist, military-inspired look without overcrowding your enclosure.

Perfect for mini-pedals, synthesizers, or high-density pedalboards, this design retains the deep, aggressive knurling for a superior grip under any stage conditions. It is the ultimate fusion of vintage "Army-spec" form and modern space-saving function.

🛠️ Technical Specifications

• Diameter: 19mm (Compact footprint for 1590B or Mini enclosures).
• Compatibility: Designed for standard 6.35mm (1/4") smooth or d-shaft potentiometer shafts.
• Fastening System: Integrated Set-Screw design for a rock-solid, slip-free attachment.
• Hardware Required: 1x Standard M3 Nut + 1x M3 Set Screw (Grub Screw) (4mm or 6mm length).

🔧 Assembly Instructions

1. Insert the Nut: Slide the M3 Nut into the internal slot.
2. Prepare the Screw: Thread the M3 Set Screw into the side hole until it engages the nut.
3. Mounting: Place the knob onto your 6.35mm shaft and tighten the screw until the knob locks firmly in place.

🎨 Printing & Finishing Tips

• Resin (Best Result): Highly recommended for that smooth, injection-molded look.
• FDM (PLA/PETG): Use a 0.2mm nozzle and 0.1mm layer height.
• The "Authentic" Look: For a true vintage vibe, print in Army Green, Slate Grey, or Matte Black.
• Indicator Line: Use a white or yellow acrylic paint pen to fill the recessed indicator line on top for high-contrast visibility on dark stages.
