NOTE: You will need to remove these for tall models!! There is about a 25mm long linear bearing on the bottom of the bed at each Z-axis rod that goes down into the holes. They will crash with any model over 225mm.

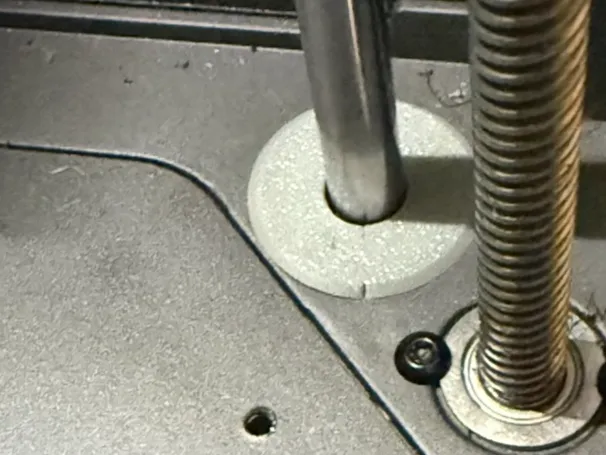

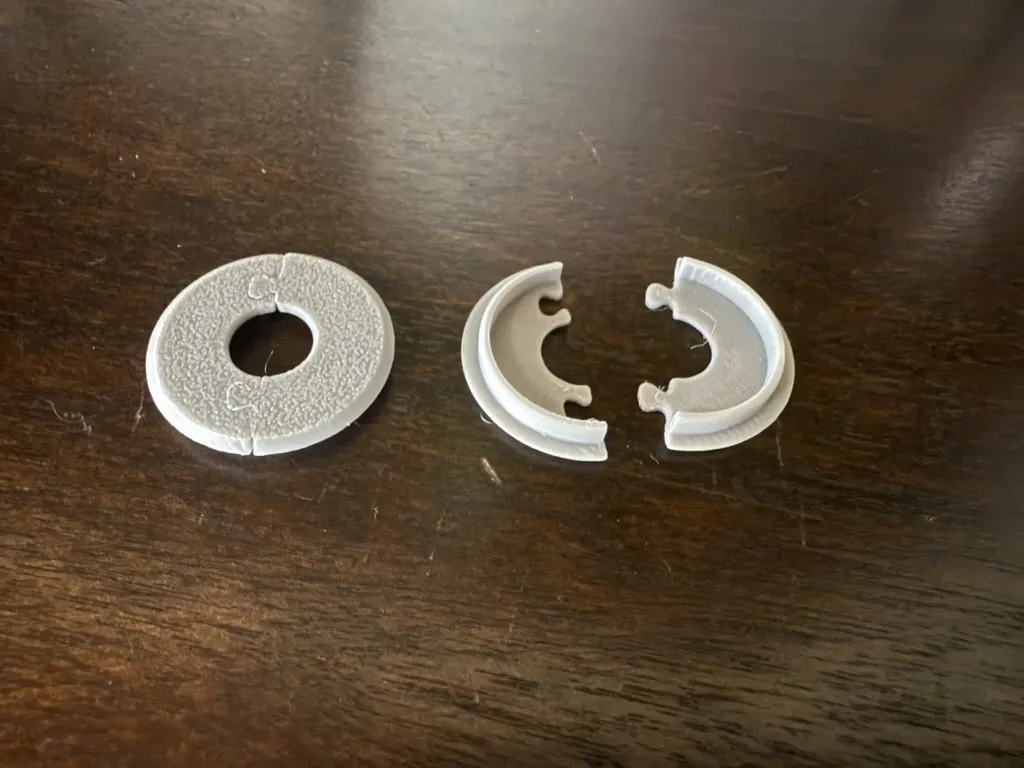

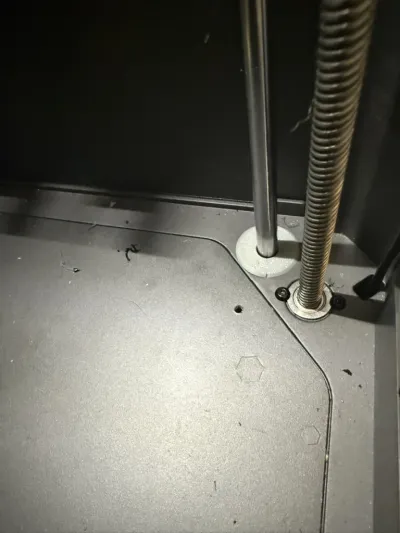

I got tired of debris (and sometimes screws) falling in the holes around the Z-Rods in the floor of the Centauri Carbon, but I couldn't find any covers for them. I took inspiration from the debris covers for the bed and the Z-axis screws and designed a two-piece cover for the Z-rod holes.
The tolerances are tight, so bed leveling and first layer are super important. I suggest putting them together and taking them apart a couple times to ease installation. If you still have problems, try increasing your elephant foot compensation.
NOTE: You will need to remove these for tall models!! There is about a 25mm long linear bearing on the bottom of the bed at each Z-axis rod that goes down into the holes. They will crash with any model over 225mm.
I printed in PETG with a 0.4mm Nozzle and .08 layer height (though I'm sure .12 or .16 would work just a well)
No supports or brims needed.
You will need three of them.
Total material is about 2g and takes about 15 min to print.
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Remixes must be shared under the same license
Models(2)
Z Rod Hole Cover.stlDesigner4.58 MB
2025-08-31
axiscover.3mf3.76 MB
2026-01-10
