Filamantsensor CC 90 Grad drehen + PC4-M10 Centauri Carbon
Print Profile(1)
  • 0.2mm layer, 2 walls, 15% infill

    1-disc

    PLA

    Designer

19

37

1k

109

Released 2025-08-12
Details
Files(1)
Makes & Comments (0)

English



Here is the first model I designed for Elegoo.

Since I mainly use the CC for printing with materials that need to be dried, I got myself a new matching dry box.

Unfortunately, the way the sensor is mounted is not suitable at all.

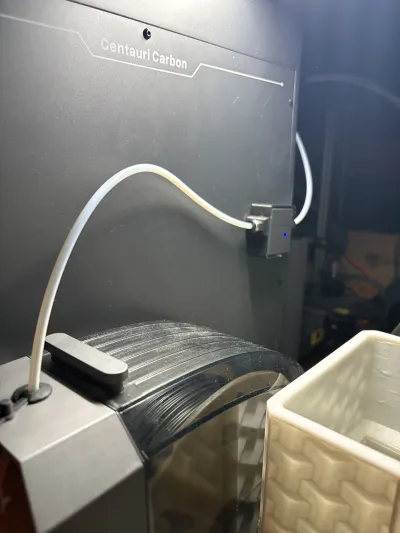

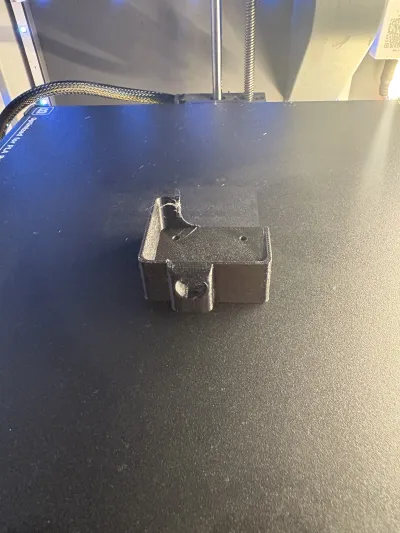

That’s why I made it possible to rotate the sensor by 90 degrees.

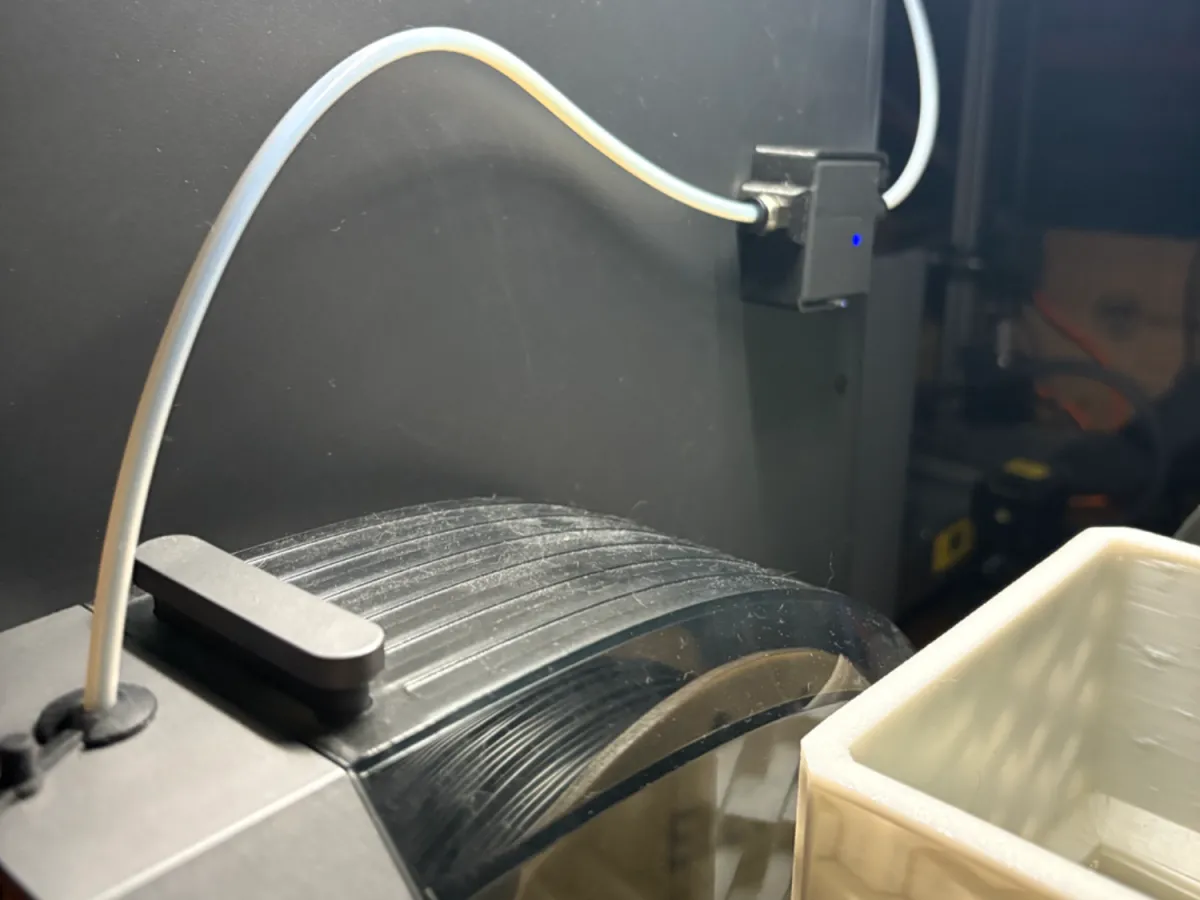

I also permanently mounted the tube to make filament loading a bit easier.




Additionally required:

• 2x M3 5 mm threaded screws

• 1x Tube holder 10 mm (PC4-M10)

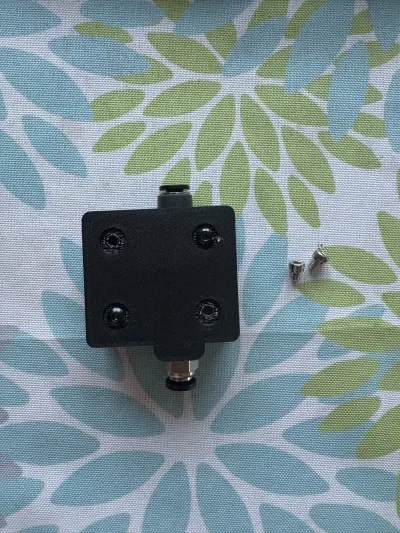

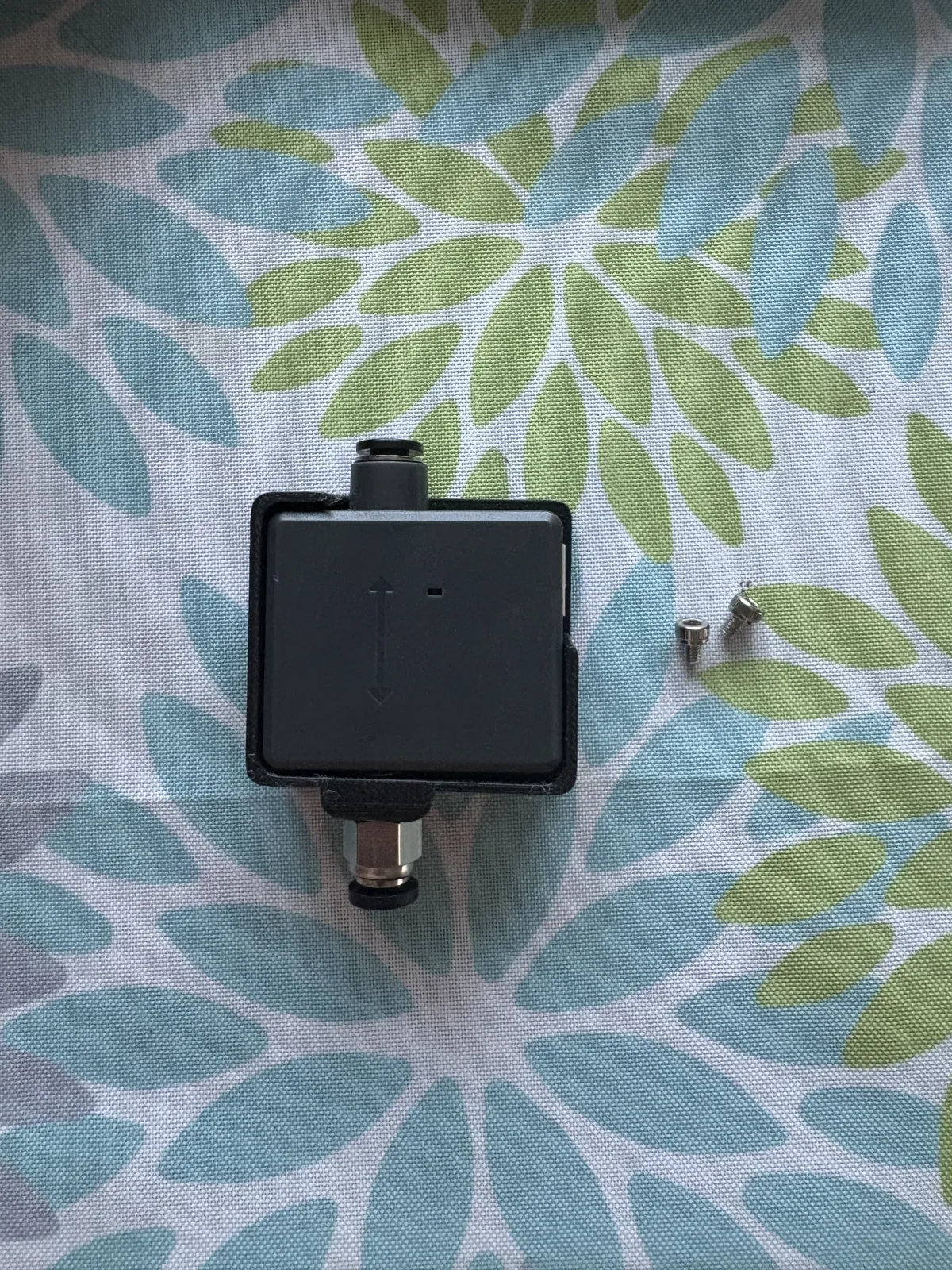

Use the original screws for the adapter, and the M3 screws to attach the adapter to the Elegoo.





Deutsch



Hier ist das erste Modell, das ich für Elegoo entworfen habe.

Da ich den CC hauptsächlich zum Drucken mit Materialien nutze, die vorab getrocknet werden müssen, habe ich mir eine passende neue Trockenbox besorgt.

Leider ist die Art und Weise, wie der Sensor montiert ist, völlig unpraktisch.

Mit diesem Adapter lässt sich der Sensor um 90° drehen.

Außerdem habe ich den Schlauch direkt fest montiert, um das Einfädeln des Filaments zu erleichtern.




Zusätzlich benötigt werden:

• 2x M3-Schrauben, 5 mm, mit Gewinde

• 1x Schlauchhalter 10 mm (PC4-M10)




Die originalen Schrauben werden für den Adapter selbst verwendet, die M3-Schrauben zur Befestigung des Adapters am Elegoo.
