Multi-purpose Fridge Magnet - Bottle Opener

It will hold your notes, open your bottles and due to small storage area can also hold short pencil or receipt for return you have to do tomorrow.

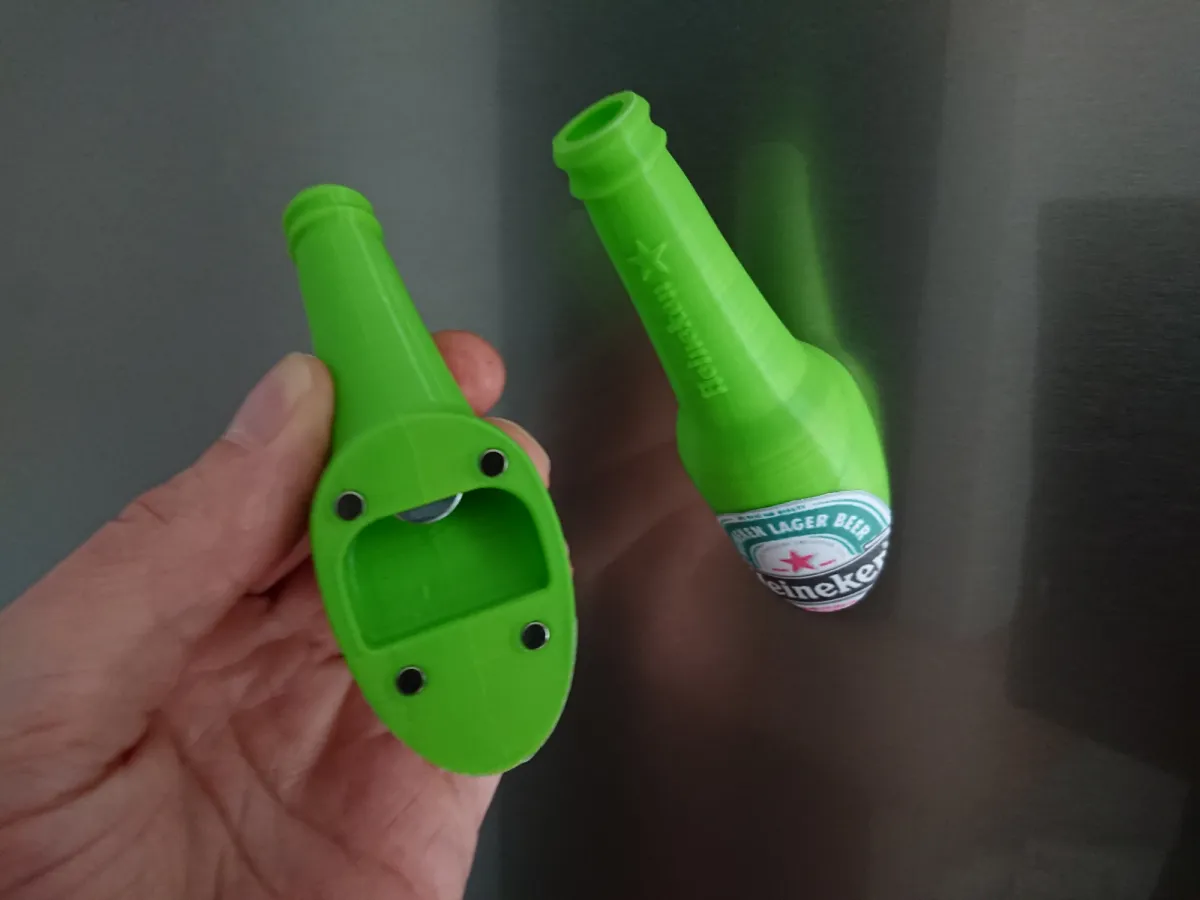

To make this fridge magnet works you need four 4x2mm magnets and one 12mm in diameter, 1mm thick washer. I made 12.5mm x 1.2mm cutout so you can use slightly bigger one or smaller and just glue it in place. Use pliers to insert it as one of the pictures shows. Magnets need to be glued as well.

How to print this model.

This model require to be printed upside down. Bed contact area is small so use brim and clean your plate before you start. Use standard 0.4mm nozzle and 0.2mm layer height. 10% gyroid infill. I used new experimental seam mode „scarf joint seam” and I set it to „Contour”. It came out pretty good! Don’t use any support, just the brim.

I added two models. Standard one with 0.1mm magnets clearance. If you have not so tuned or older printer and the holes might be too narrow use the file with 0.2mm clearance in the name.

Label.
You may use it with or without the label. As I don’t have any rights to Heineken logo, I can’t provide the file ready to be printed. I downloaded mine from nicepng.com. Free for personal use.
https://www.nicepng.com/downpng/u2q8e6w7u2y3i1i1_heineken-beer-label-logo-heineken/


Download the label. Open it in any reasonable graphic software and rescale it. It has to be around 40mm in width and 50mm in height. If you prefer to scale in pixels, set it to 113x139 pixels.

Print on self-adhesive paper, or if you don’t have it (like me), print on normal office paper, use double-sided adhesive tape on the back and clear adhesive tape on the front to prottect graphic. Place it on your printed fridge magnet and cut to shape as you see on the pictures. Easy job :)

I hope that you’ll find this magnet usefull!

If you like it and you want to give it thumbs up, please also consider downloading it. It cost you just one additional click and it’s very important to me. Also check my other models, maybe you will find something interesting :) Thank you!

Happy printing! :)
