- 0.2 mm layer height, 2‑wall walls, 15% infill density
4-disc
PETG
Designer
17
3
after the Cyberfish was finished, I found a small problem, that is, the Dupont line itself is sometimes not long enough.
Aftersome thought, I decided to extend it directly with male and female plugs,
a few minutes later, the new problem came... some DuPont plug is very loose, resulting in from time to time the wire will be disconnected.

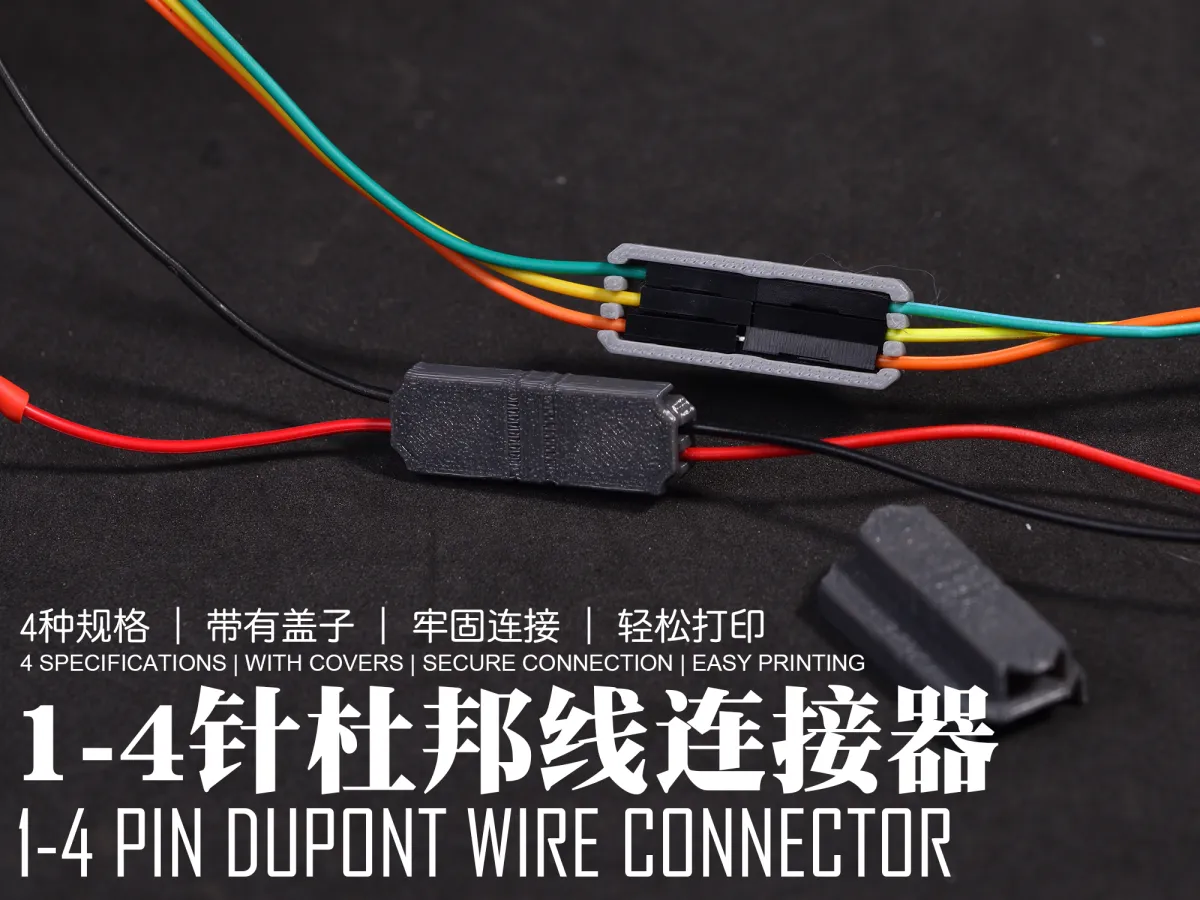

it's time to make a DuPont cable connector!
- There are 1pin ~ 4pin 4 styles that
- perfectly match the size of DuPont plug and
- come with a cover, which completely wraps the plug . The
- connection is firm and not easy to loosen . It is
- very material-saving and easy to print
