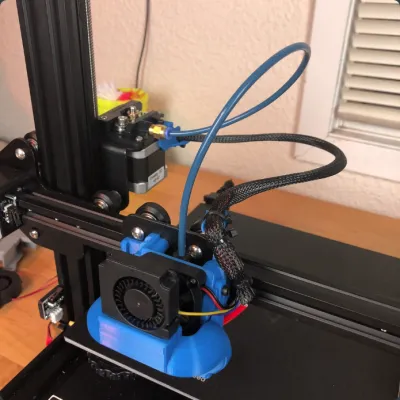

I use this clip with the Bullseye duct horizontal wire management style (the cable management channel on the Bullseye / and Petsfang pulls the loom in a horizontal direction).

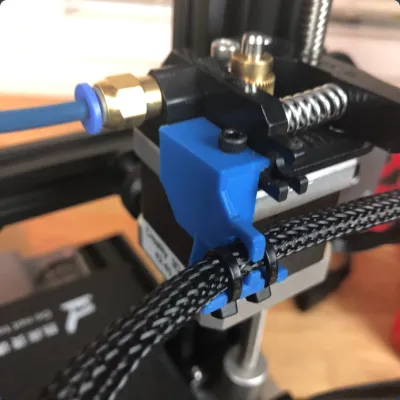

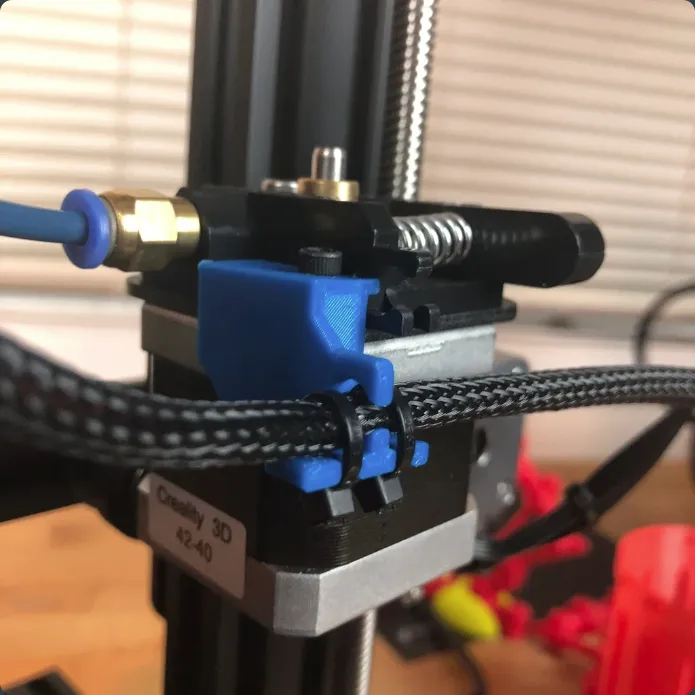

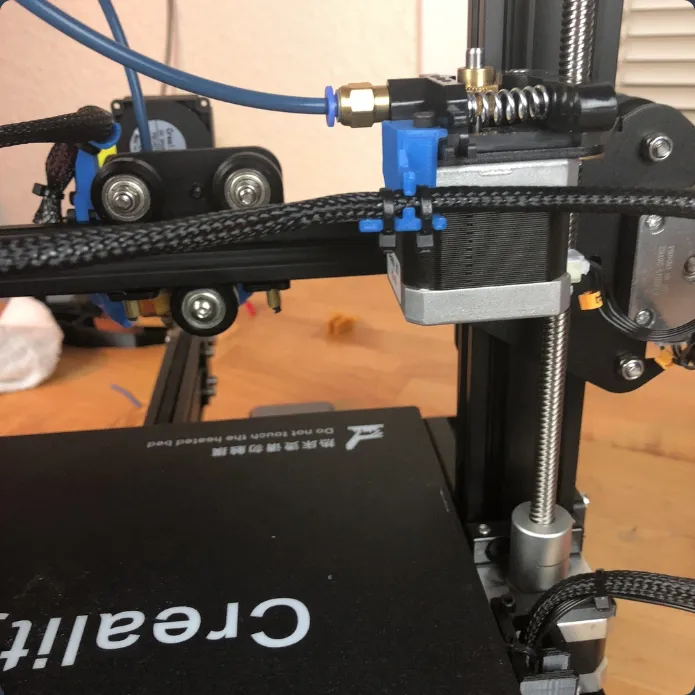

The built in Ender 3 extruder clip doesn't hold the wire tight enough and doesn't provide a lot of horizontal stability. This clip has a small horizontal platform and holes for cable ties that will hold the cable horizontally. I used a m3 x 12 screw, but the ender factory screw is just long enough to use. The hole might be a little tight, run the screw through it first to make it easier to install.
Print with 'support to bed only'. I used 100% infill due to the small size, but you could probably go less. The sample shown was printed in the orientation shown in the preview.

Originality of the Model

The author declares that this work is their personally shared model

Original creator:
Namemogan

This model is licensed under the following terms:

Credit must be given to the creator

Models(1)

  • loomclip.stl

    77.72 KB

    2025-07-16
