Knurling M6 Gerätefuss / Knob

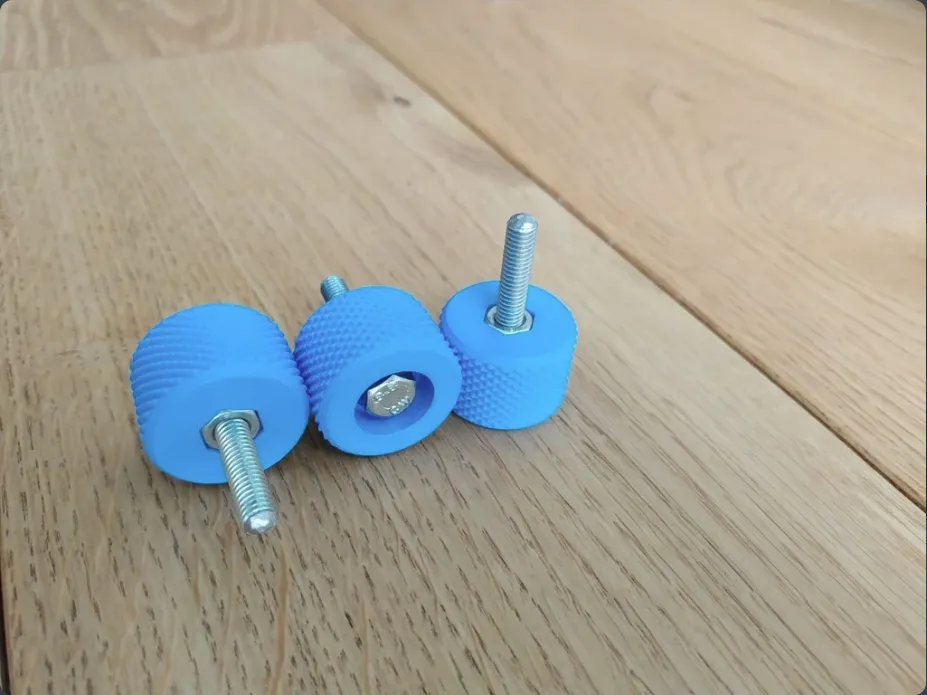

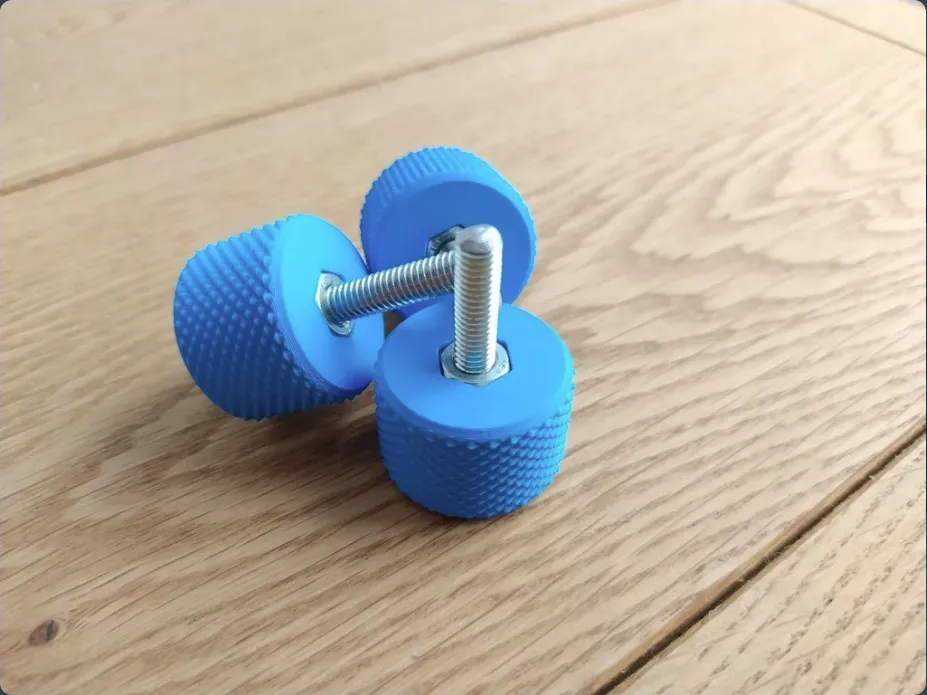

Just a knurling knob with a M6 screw and M6 nut.
There is a solid layer for better printing, just drill it away and put the screw in.
I also put a M6 washer under the screwhead
Material
- M6 x 25/30/40 etc. (DIN 933) full thread
- Washer for M6 (DIN125)
- M6 Nut (DIN934)
or - M6 Nut (DIN982) for Lock Nut Version
Update 2022-06-07
- add version for locking nut
