Motorized Aperture (⌀ 4-24 mm)
Print Profile(0)
10
0
Released 2025-07-18

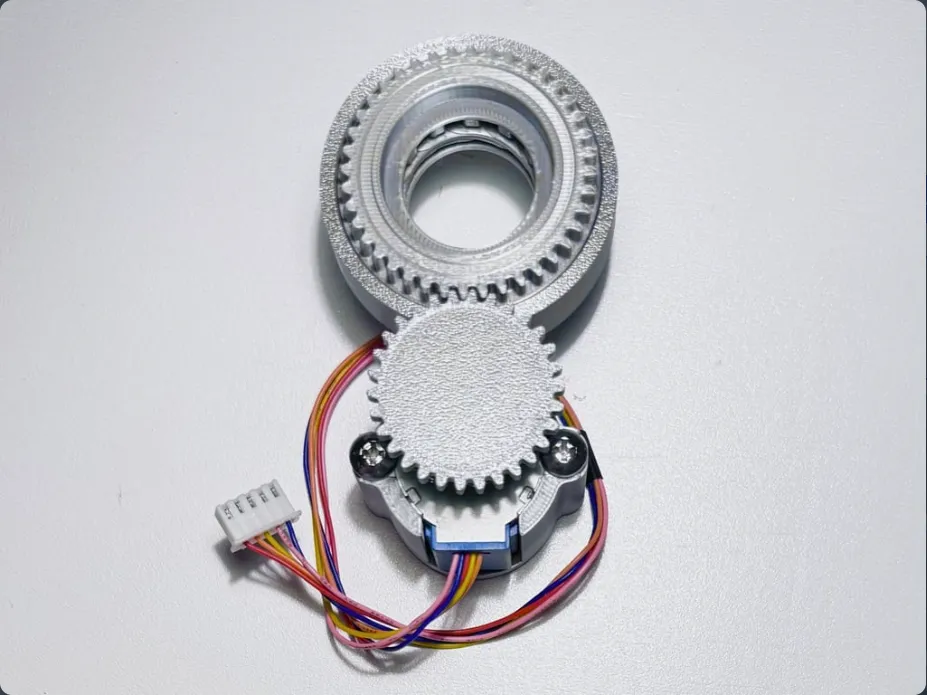

A small aperture powered by a common 28BYJ-48 stepper motor. The opening diameter can be set between 4-24 mm. You’ll need to print 12 blades.
STEP and STL files are included.
Materials
- 28BYJ-48 Stepper Motor with Driver Board
- M4 x 8 mm screws (x2)
- (Optional) An additional two screws can be used to mount the finished assembly
- Super Glue
Originality of the Model
The author declares that this work is their personally shared model
Original creator:
mpcastro695
Reprint source:https://www.thingiverse.com/thing:6758654
This model is licensed under the following terms:
Credit must be given to the creator
Models(7)
Base (1).stl
532.89 KB
2025-07-03
- Blade.stl
94.81 KB
2025-07-03
- Coupling.stl
78.01 KB
2025-07-03
- Dial.stl
330.55 KB
2025-07-03
- MC_Aperture.step
1.32 MB
2025-07-03
- Ring.stl
76.55 KB
2025-07-03
- Motor_Mount.stl
232.41 KB
2025-07-03
