Note: in rcolyer's original scad version, typically only nom_knob_diam needs modification.

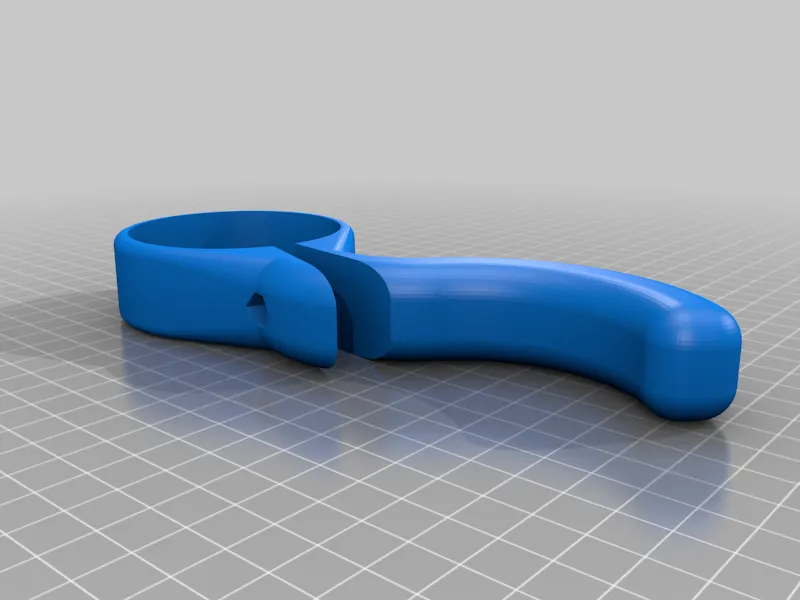

door_lever2_60mm.stl is a customized version of https://www.thingiverse.com/thing:2729961 using door_lever2_customizable.scad

Created with Customizer! https://www.thingiverse.com/apps/customizer/run?thing_id=2729961

Instructions

Using the following options :

nom_knob_diam = 60
knob_width = 25
knob_thick = 4
knob_smooth_rad = 3
bolt_nomdiam = 5
bolt_nomlen = 18
bolt_shift_up = 1
bolt_compressby = 2
bolt_support_angle = 24
lever_intersect_angle1 = -32
lever_end_angle = 55
lever_circ1_diam = 80
lever_circ2_diam = 110
lever_thick = 20
round_lever_by = 8
splice_angle = 12
lever_hull_off = 10
display_angle = -105doo
smooth_angle = 2
smooth_size = 1.0

====================================================================
Note: In this V2 scad remix version, only nom_knob_diam1, nom_knob_diam2 need modifying for 'round or tulip' shaped doorknobs. For tulip-shaped door knobs, tulip_knob_lip_loctn, tulip_knob_lip_width, tulip_knob_lip_depth give you the option of where to add a 'lip'

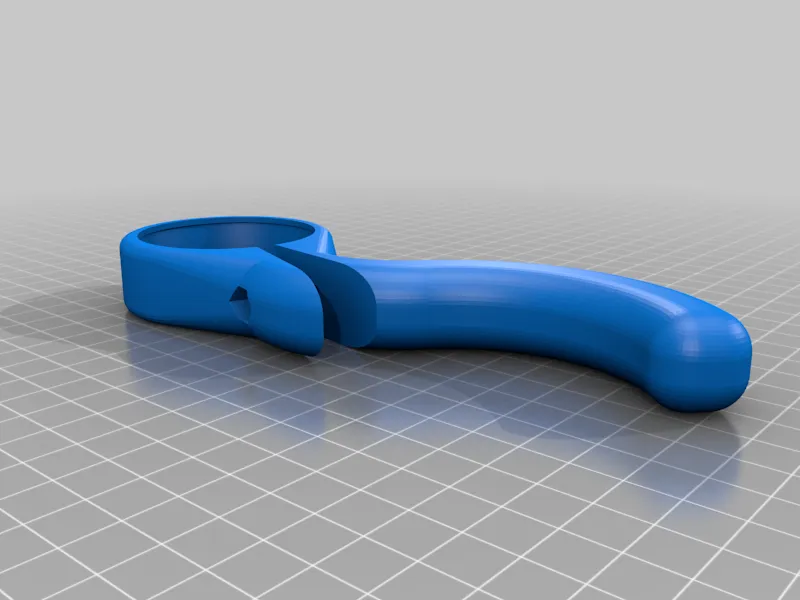

door_lever2_48x48x35mm_lhtl.stl,
door_lever2_48x48x35mm_rhtl.stl,
door_lever2_60x60x35mm_lh.stl,
door_lever2_60x60x35mm_rh.stl are also a customized version of https://www.thingiverse.com/thing:2729961 but created using door_lever2_customizable_v2.scad

//Match nom_knob_diam1 value closely to the desired door knob.
//For non-tulip shaped door knob, make nom_knob_diam2 = nom_knob_diam1
//For Tulip shaped door knob, nom_knob_diam1 is furthest from door
nom_knob_diam1 = 60.0;
nom_knob_diam2 = 60.0;
nom_knob_width = 35.0;

//For lefthanded lever, set rh_lever = 0
rh_lever = 1;

//For tulip shaped knobs, to prevent slippage during tightening, a top or bottom lip can be added to the knob wrap.

//For lip furthest from the door, set tulip_knob_lip_loctn = 1, otherwise set to 0
tulip_knob_lip_loctn = 0;

//If no lip required or wanted set tulip_knob_lip_width = 0 and tulip_knob_lip_depth = 0; otherwise, set both to 1.6
tulip_knob_lip_width = 1.6;
tulip_knob_lip_depth = 1.6;

// For smooth but slow rendering set smooth_size=1
// For rough but fast rendering set smooth_size=4
smooth_angle = 2;
smooth_size = 1.0;

Print Settings

• Printer brand:

  Ultimaker

• Printer:

  Ultimaker 2 Extended

• Rafts:

  Yes

• Supports:

  Yes

• Resolution:

  0.1

• Infill:

  20%

• Filament brand:

  PLA

• Filament material:

  Generic PLA 0.4mm

• Notes:

  Estimate print time 7hr7min / using 39gr
