Bind-Reducing ACME Pillow Block X-Ends (Fully Customisable in SolidWorks_
Print Profile(0)

  • Earn points by adding print configurations

0

0

2

0

Released 2025-07-11
Details
Files(6)
Makes & Comments (0)

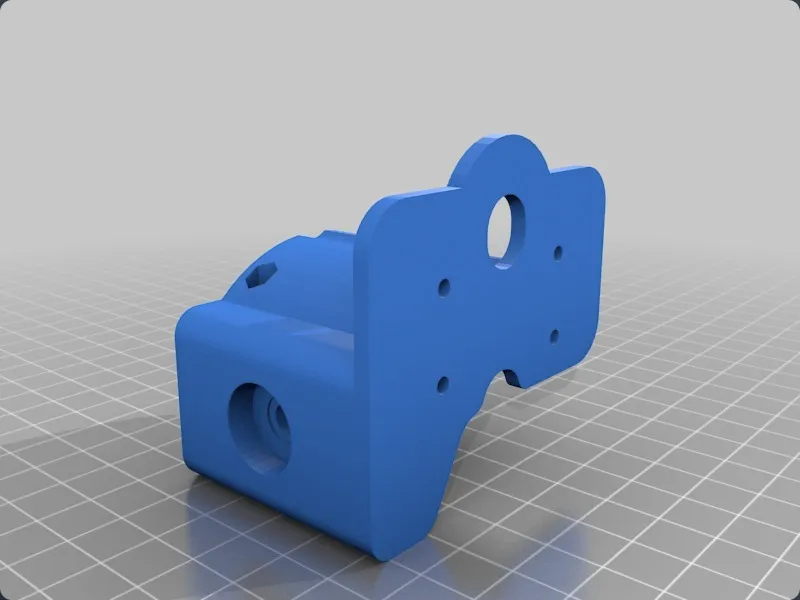

This is a remix of AlephObjects 3/8" ACME X-Ends for the MendelMax with jonaskuehling's "clamped rods" system, to further reduce binding on the Z Axis from the X Axis' belt.

The SolidWorks files are included in this upload and the vast majority of dimensions can be altered in "Equations".

Originality of the Model

The author declares that this work is their personally shared model

Original creator:
larnert
Reprint source:https://www.thingiverse.com/thing:1142241
