Achieve precision in your mechanical assemblies with this extended GT2 timing belt pulley. Standing at 78mm high, this gear is designed for applications that require a larger surface area or specific vertical alignment. Features the universal GT2 tooth profile, making it compatible with most standard 6mm, 9mm, or wider timing belts.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    ball bearings
    4
    3x10x4

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(3)

  • model file image
    GT2 timing belt Pulley gear 78 mm high.3mfDesigner

    54.96 KB

    2026-02-06

  • model file image
    timing belt Pulley gear without teeth.stlDesigner

    49.50 KB

    2026-02-06

  • model file image

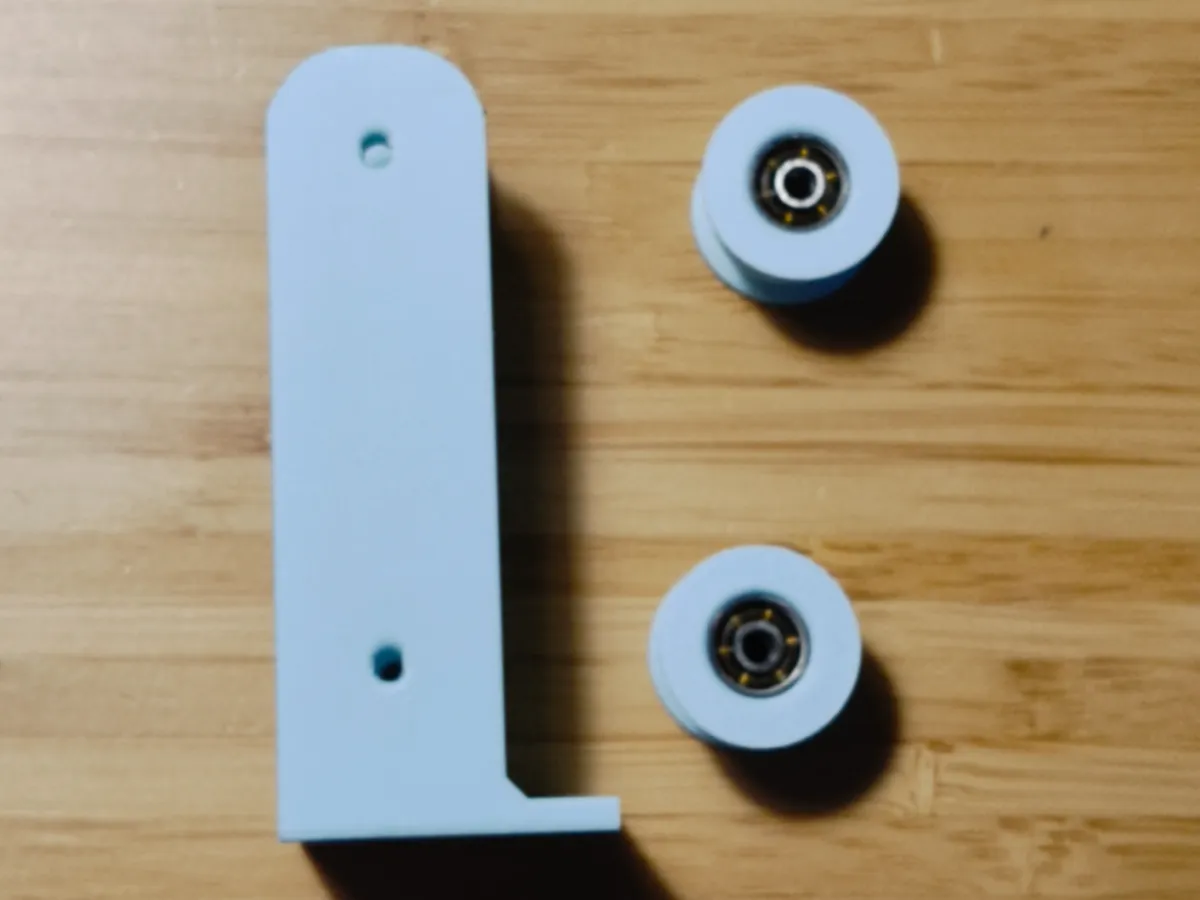

    78 mm long double GT2 timing belt holder.stlDesigner

    26.64 KB

    2026-02-06
