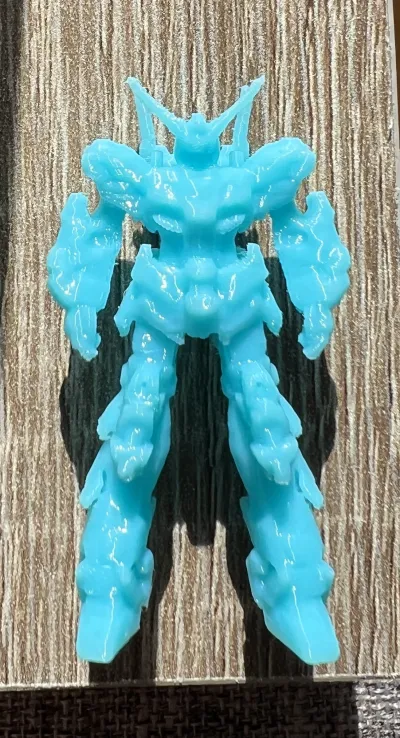

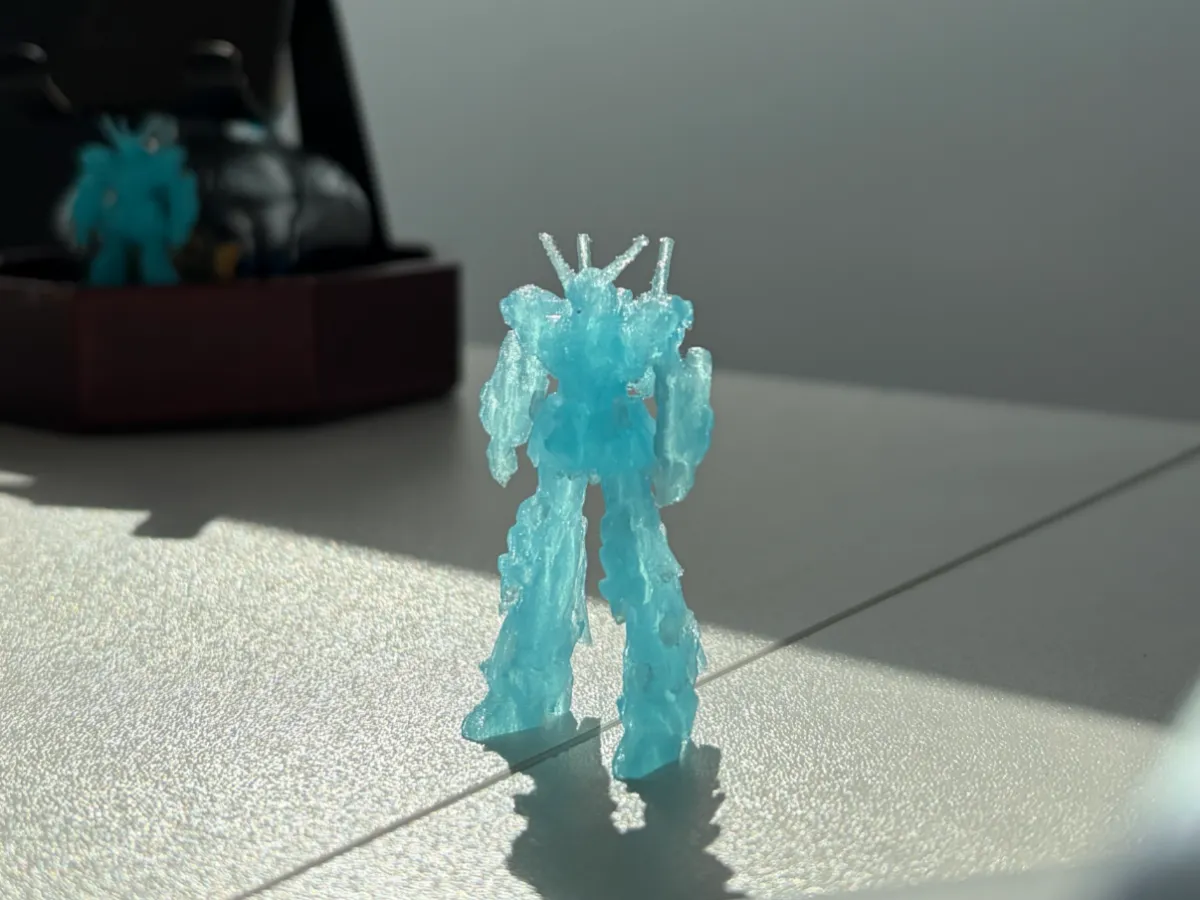

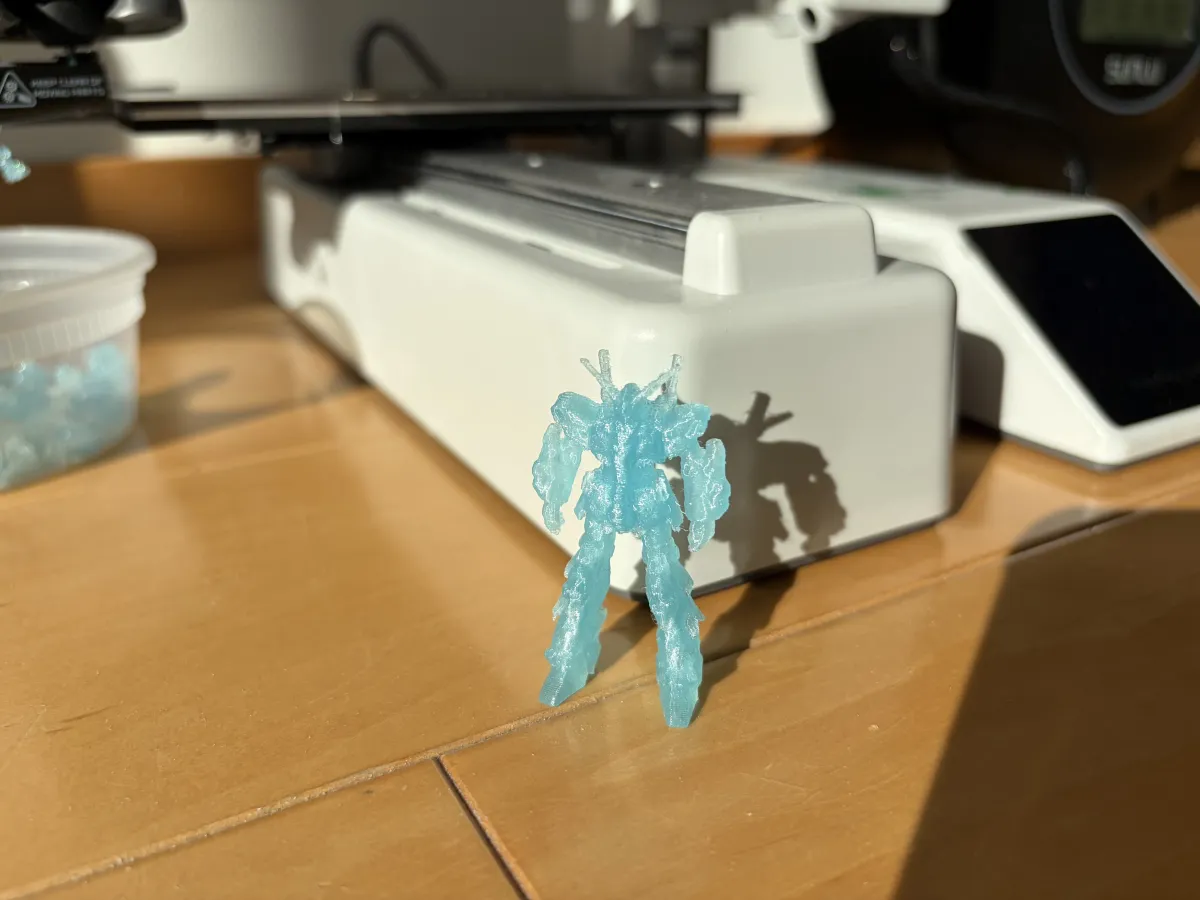

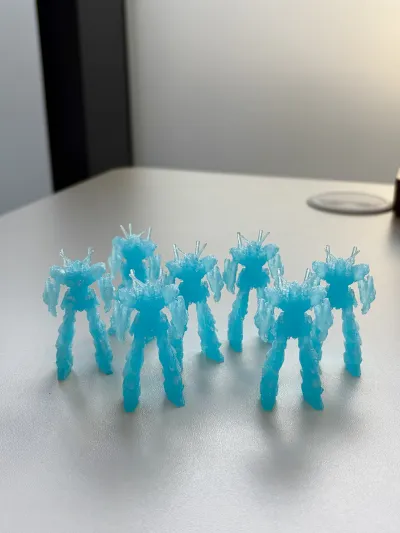

RX-0 Unicorn Gundam (Destroy Mode) Miniature (1/420 Scale)
3D Model for 3D Printing
29.12 mm x 18.30 mm x 51 mm


Printer: Bambu Lab A1 mini 3D Printer
Filament: FDM TPU Medium Hard (95A) 1.75 mm
Filament Dryer: SUNLU S2 Filament Dryer (any generic TPU Filament Dryer @ 60 °C)


Slicer Settings:
Printer:
0.4mm Nozzle Bambu Lab A1 mini
Extruder → 0.6 mm Retraction Length

Filament:
225 °C Initial Layer Nozzle Print Temperature
220 °C Other Layers Nozzle Print Temperature
55 °C Initial, Other Layers Textured PEI Plate
2.7 mm3/s Max Volumetric Speed
1.028 Flow ratio
50% Fan speed, 100 s Layer time Min Fan Speed
80% Fan speed, 8 s Layer time Max Fan Speed
10 mm/s Min Print Speed
2 mm Retraction Length
25 mm/s Retraction Speed

Quality:
0.15 mm Layer Height
0.2 mm Initial Layer Height
0.44 mm Default Line Width
0.4 mm Initial Layer Line Width
0.42 mm Outer Wall Line Width
0.45 mm Inner Wall Line Width
0.44 mm Top Surface Line Width
0.42 mm Support Line Width
Back Seam Position
Arachne Wall Generator
Inner Wall / Outer Wall / Inner Wall Order of Walls
Only One Wall on First Layer

Strength:
100% Infill (Rectilinear Pattern)
3 Wall Loops
4 Bottom Shell Layers
20% Infill / Wall Overlap
10 mm2 Minimum Sparse Infill Threshold

Speed:
30 mm/s Initial Layer Speed
30 mm/s Initial Layer Infill Speed
30 mm/s Outer Wall Speed
30 mm/s Inner Wall Speed
30 mm/s Infill Speed
30 mm/s Gap Infill Speed
400 mm/s Travel Speed
5000 mm/s2 Normal Printing Acceleration

Support:
Tree (auto)
Tree Organic Style
30° Overhang
On Build Plate Only
Remove Small Overhangs
0.1 mm Bottom Z Distance
1 Top Interface Layer
1 Bottom Interface Layer
Grid Interface Pattern
-0.1 mm Normal Support Expansion
0.4 mm Support / Object XY Distance
0.3 mm Support / Object First Layer Gap

Others:
No Reduce Infill Retraction
